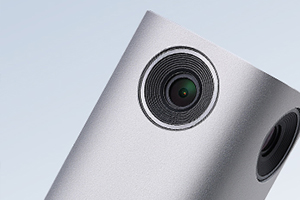

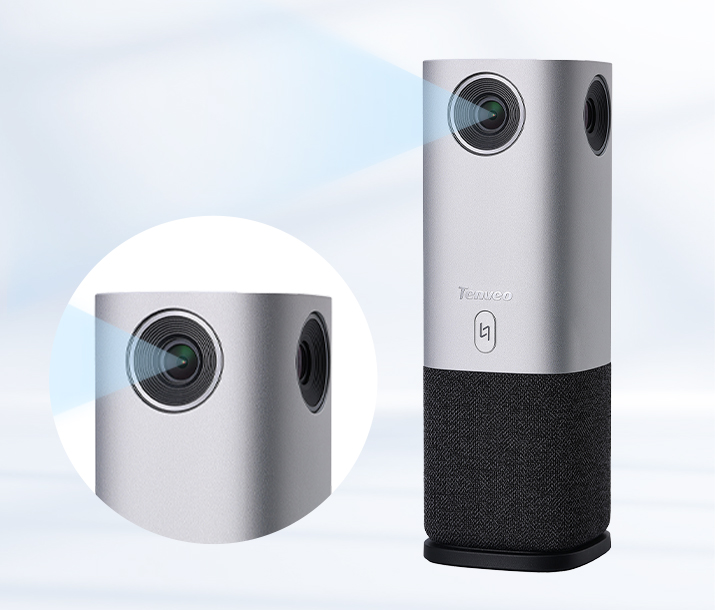

High Definition CMOS Sensor 2.1 MP with 4*Lenses cameras 4 built-in cameras 1080P@30Hz
1. Panorama Mode; 2. Top and Down Mode; 3. Composed Mode; 4. Speaker 1 Mode; 5. Speaker 2 Mode; 6. Panning Mode.
Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.
Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.
| Sensor | 1/2.7'' CMOS Sensor |
| Effective pixel | 5.0 Megapixels |

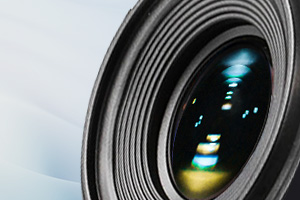

| Focal Lens | f=2.49mm |
| Aperture | F2.5 |
| Field of view | 140° (D), 140° (H), 103° (V) |
| Hardware out | 4992x928@30fps (Panorama Only) 1920x1080@30fps, 1280x720@30fps, 640x360@fps(Panorama, Top Down,Panning) DOA: Direction of Arrival |
| Video format | MJPG/YUV2 |
| Stitching Technology | Dynamic Real + Time Stitching Technology |
| Modes | Compose / Focus / Grid / Body fit / Speaker / Top-Down |
| Features | Adaptive ROI; People Tracking; Beamforming Tracking |
| Microphone Array | Built-in 4 Digital Microphones / Unidirectional Microphones |

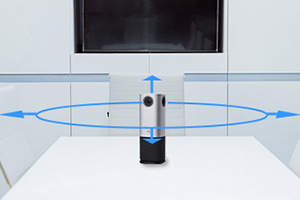

| Pickup Range | 5 M |
| Far-Field Voice Capture | Support |
| LED Display | Circularity 12*2 Blue LED Indicators / Touch Button Display RGB colors |
| Minimal Illumination | 0.1Lux |
| UVC / UAC Version | 1.1 / 1.0 |
| USB | TYPE-C ( USB 2.0 ) |
| Physical Interfaces | DC In : DC Jack Φ2.5mm |
