RS232 RS485 connection PTZ joystick controller
Joystick controller for conference PTZ camera
Joystick controller for conference PTZ cameraJoystick controller for conference PTZ cameraJoystick controller for conference PTZ camera
RS232 RS485 connection PTZ joystick controller
1. Work with any PTZ cameras that use VISCA, PELCO-D or PELCO-P protocols
2. Using joystick to control the Pan Tilt and Zoom (PTZ) function
3. RS485 Control and RS232 Control
4. PTZ Controller with LCD Display, Made for professional video conferencing. Use Tenveo 10X/20X/30x zoom Cameras and PTZ Controller together for a Huge space
Product introductionTech SpecPackagingSend inquiry


Tenveo keyboard controller for PTZ Cameras. PTZ Controller with LCD Display, Made for professional video conferencing, Easy joystick operation Controller_ It can be widely used in video conferencing, distance learning, distance training,telemedicine, teleconferencing, recruiting, distance interview, schools, hospitals, Church, workshops and so on.

* RS485 control bus, can control 255pcs head-end equipment address and connect 128pcs equipment in parallel at the most, as well as 7pcs series-connected SONY video conference camera

* Can set and call 1-46 preset position of SONY video conference camera

* All input and output communication port use anti-radar design,powerful anti-jamming performance, the standard transmitting distance is 1200 meters

* Maximum sub-control keyboard:16

* Good communication compatibility, built-in many kinds of protocols·

* Keyboard operation password on/off/lock function

* Key-press warning on/off function

* Speed dome camera infinitely variable speed control

* LCD display

ProtocolPelco-D, Pelco-P, VISCA
Baud rate(bps)1200bps, 2400bps, 4800bps, 9600bps, 19200bps
Control AddressControl 255pcs PTZ at the most, address code:0-254
Communication ModeRS485 half-duplex, RS422 full-duplex, RS232 serial port 10M internet(select to order)、USB(select to order)
Communication RangeRS485, RS422: 1200m, RS232: 10m
Cascade connection number16 sub-control at most, controller ID:0-15
Joystick3D(control: up, down, left, right, zoom)

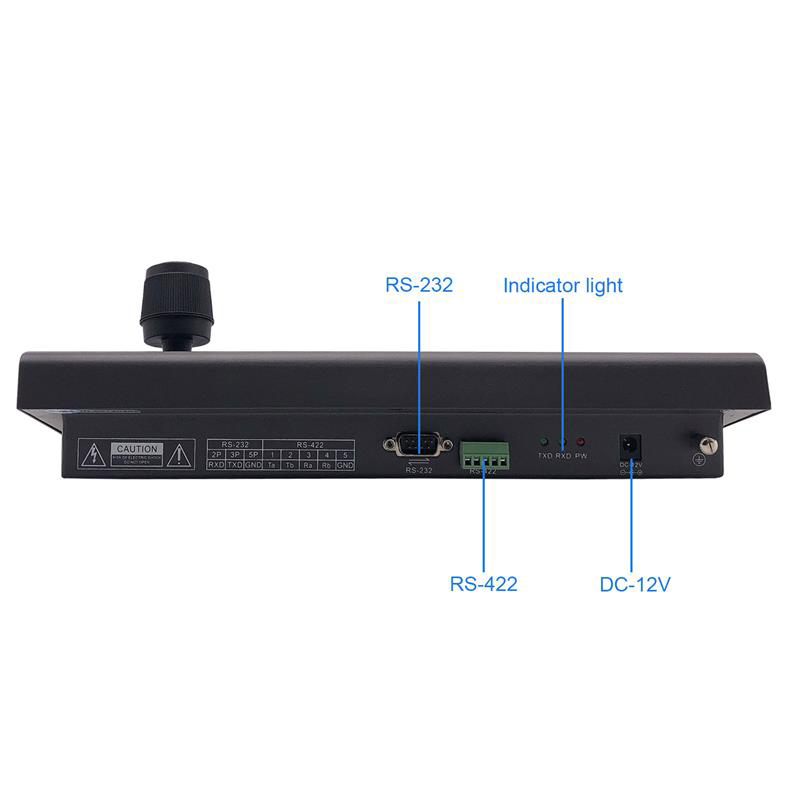

Interface Mode10PIN pressing line port, DB9 connector
Displayblue LCD
Warning ToneKey-touch beep on/off
Power SupplyDC12V±10%
