Pan: 0 to 340 degree. Tilt: 0 to 120 degree. 30X optical Zoom, 2.38 mega pixel 30X optical zoom,HD 1080P 60fps video output, allow you to enjoy a nice image.
TAs a new generation of video transmission mode, it has the characterstics of low-latency and high-speed.
Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.
Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.
| Model | TEVO-VHD30N (NDI version) |
| Sensor | 1/2.8''SONY CMOS |
| Effective pixel | 2.38 mega pixel |
| Video output pixel | 1080p@60/50/30/25fps, 720P@60/50/30/25fps |
| Zoom | 30x optical zoom |
| Lens | f=4.7～141mm |
| Aperture | F1.5～4.0 |
| Horizontal angle | 60.5°(W)-2.3°(T) |

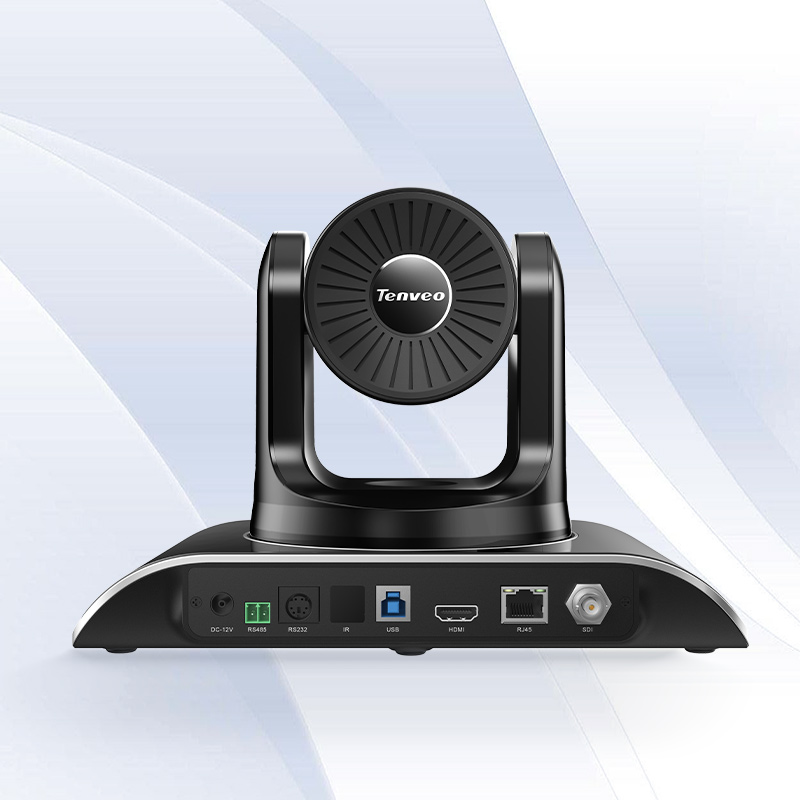

| Video output | USB,HDMI,SDI,RJ45 |
| Video resolution | 1080P (1920 *1080) |
| Siginal standard | NTSC/PAL |
| Preset position | 64 |
| Control protocol | Onvif, VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
| Shutter | 1/30s～1/10000s, auto |
| Baud Rate | 38400/9600bps |
| Network protocol | NDI|HX2, RTSP, RTMP, ONVIF, GB28181; Support VISCA Over IP |
| USB protocol | UVC1.1 |
| Minimal Illumination | 0.1Lux |
| SNR | ≥50dB |
| Video encoding format | MJPEG/YUY2/H.264/H.265 |
| Horizontal Rotation | 350°（±175°）0.1°/s～100°/s |
| Vertical Rotation | 90°（±45°）0.1°/s～80°s |
| Power supply | DC 12V/2A |
| Power comsumption | 12W |
