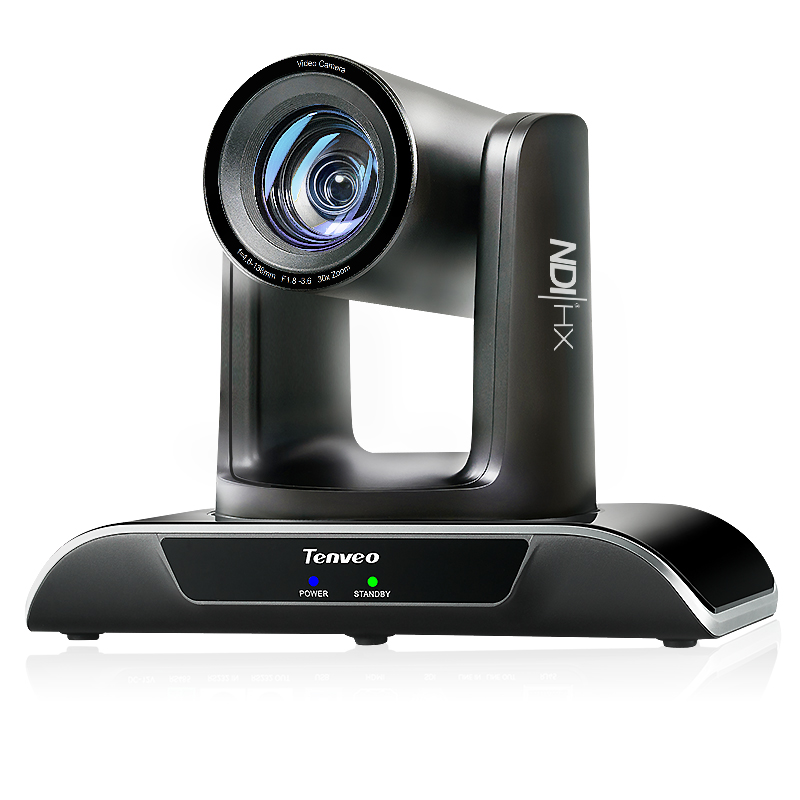

| Model | TEVO-VHD630A-4K (ndi version) |
| Image Sensor | 1/2.8''4K Exmor CMOS |
| Image Quality | 8.0 mega pixel |
| Output Resolution | 4K/60fps, 1080P/60fps, 720P/60fps |
| Minumum Illumunation | 0.5 lux (IRE50, F1.6, 30fps) |
| Signal-to-Noise Ratio (S/N): | 50 dB |
| Optical Zoom: | 30x |
| Digital Zoom | 12x |
| Field of View (FoV): | DFOV 69.2° / HFOV 62.3° / VFOV 37.3° |
| Lens: | Focal length f = 4.5 mm ~ 135 mm |
| Shutter Speed: | 1/1 to 1/32,000 sec |
| Preset Positions: | 256 |
| Supports: | NDI® HX3, Dante AV-H or equivalent |
| Camera Control Protocols: | VISCA, ONVIF, CGI |
| Features: | White balance, backlight compensation, 2D/3D noise reduction |
| SmartShoot: | Region-based preset tracking |
| Audio Format Support: | AAC-LC |

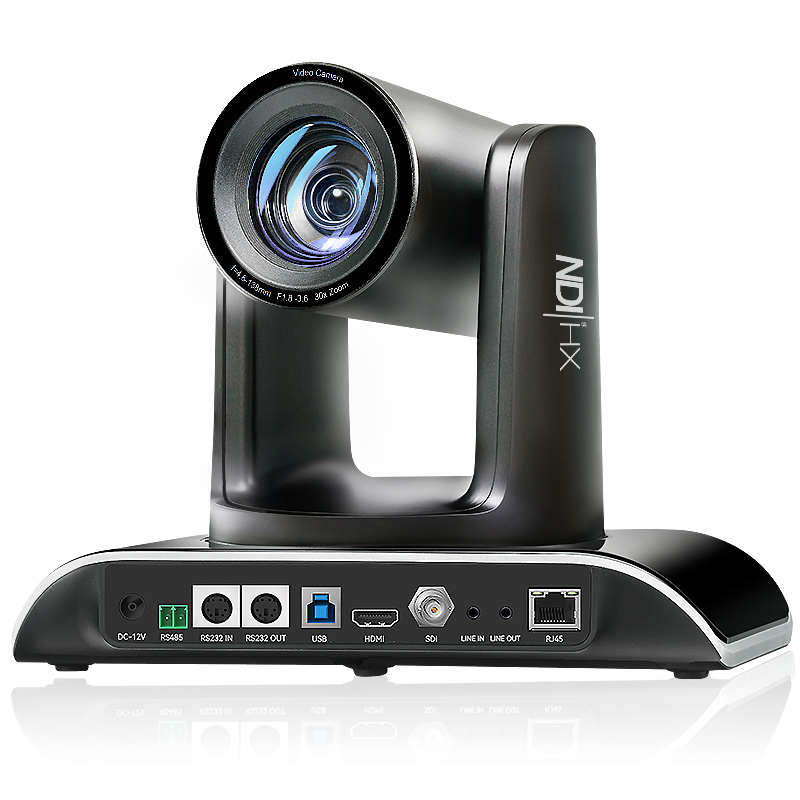

| Video/Audio Interfaces: | 3G-SDI, HDMI, IP, USB 3.1 Gen 1 (Type-B) |
| Audio Input Ports: | Mic in, Line in |
| USB Connectivity: | USB 3.1 Type-B, UVC 1.1, UAC 1.0 (browser supported) |
| Video Formats: | H.264, H.265, MJPEG |
| Bitrate: | VBR/CBR up to 120 Mbps |
| Network Port: | PoE+ |
| Power Supply: | AC 100–240V to DC 12V/2A |
| Free Software: | PTZ Management, PTZ Control Panel, PTZ Link, CaptureShare |
| Operating System Compatibility: | Windows, iOS, macOS |
| Certifications: | Zoom Certified, Extron IPLink Certified |
| Security: | Kensington Lock |
| Product Certifications: | CE/FCC/RoHS |
