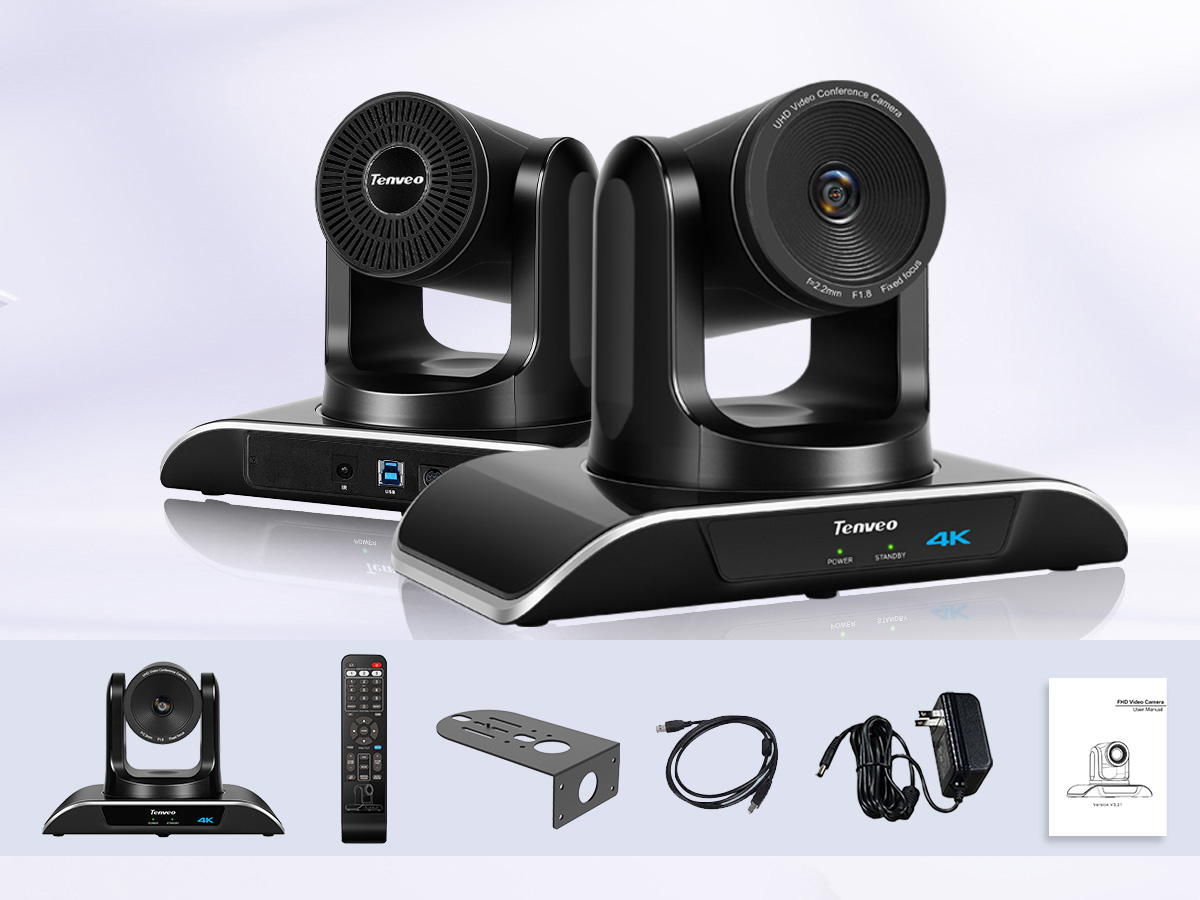

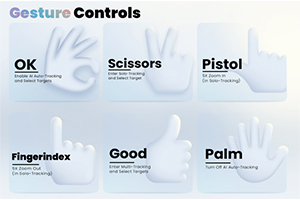

Ultra Wide Angle USB 4K PTZ Camera with Gesture control

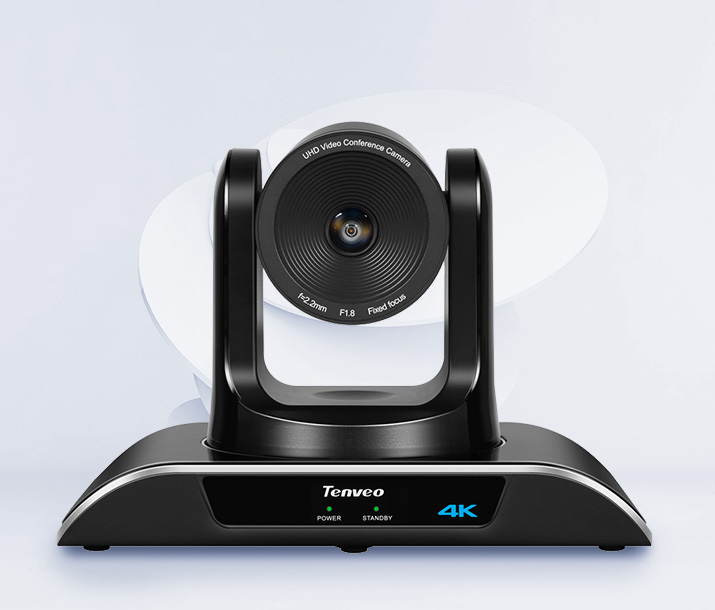

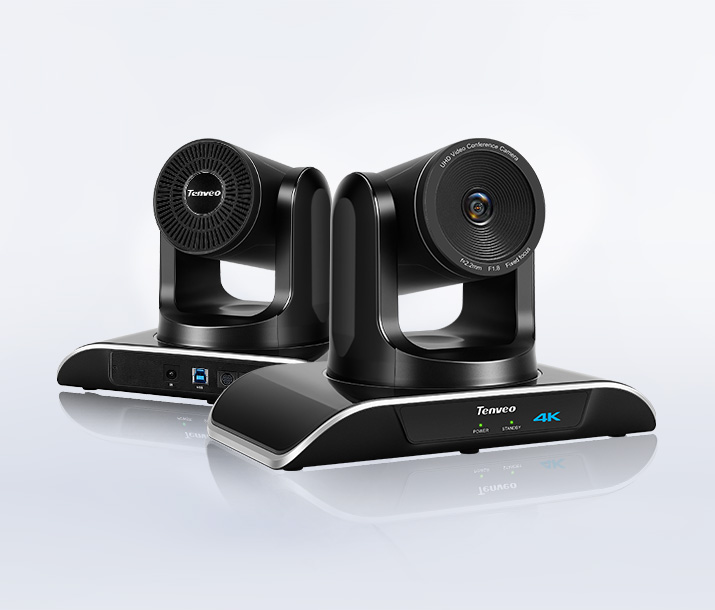

TEVO-VHD4K UHD 4K USB PTZ Camera
TEVO-VHD4K UHD 4K USB PTZ Camera TEVO-VHD4K UHD 4K USB PTZ Camera TEVO-VHD4K UHD 4K USB PTZ Camera TEVO-VHD4K UHD 4K USB PTZ Camera
Ultra Wide Angle USB 4K PTZ Camera with Gesture control
1. 5x optical zoom,Sleek and intelligent design, Plug & Play USB2.0 Connectivity
2. Ultra QHD 4K 3840 x 2160 output resolution,Wide field of view with no video distortion
3. Preset: 9 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
4. 1/2.9 inch high quality, 8.29MP (16:9) CMOS sensor
5. Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
6. Utilizing belt drive technology the PTZ is ultra-quiet and fast
Product introductionTech SpecPackagingSend inquiry

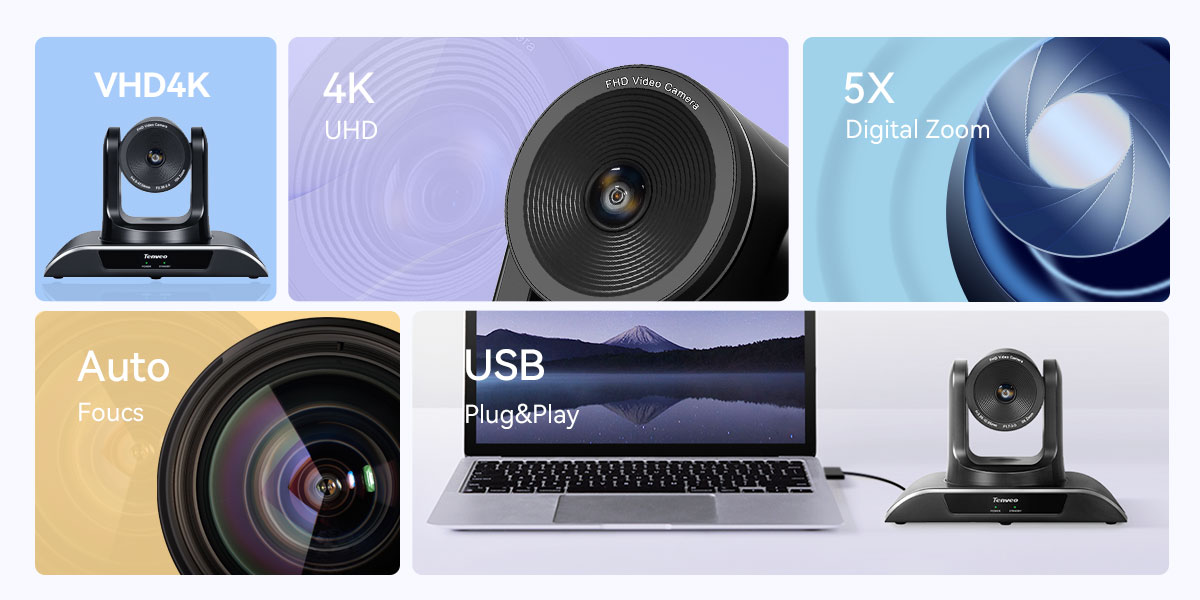

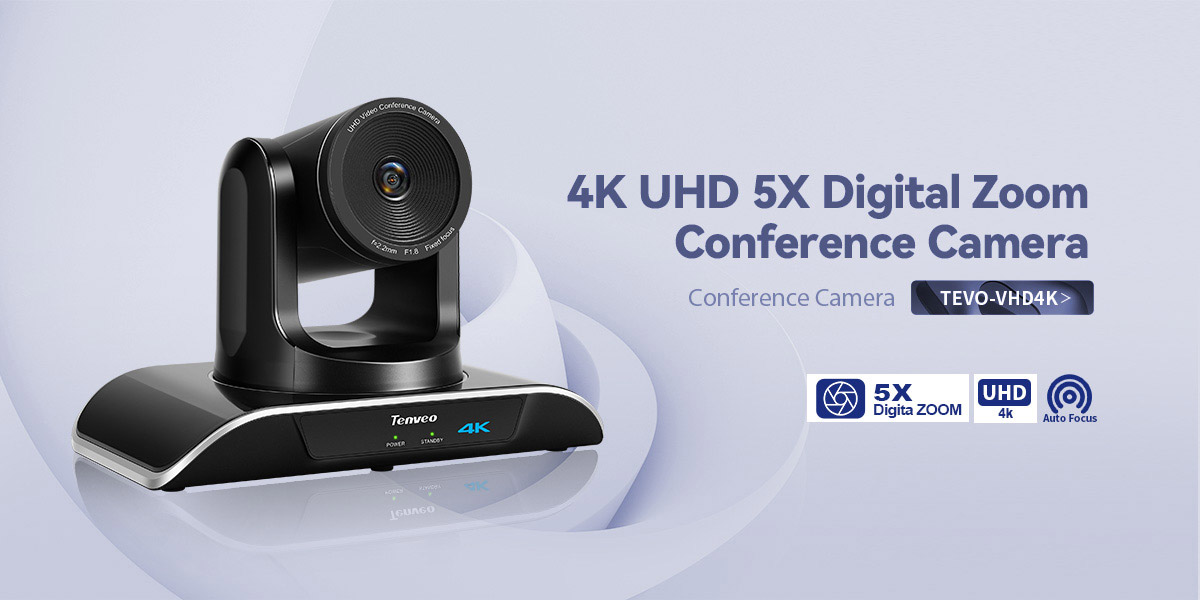

4K UHD 5X Digital Zoom Camera

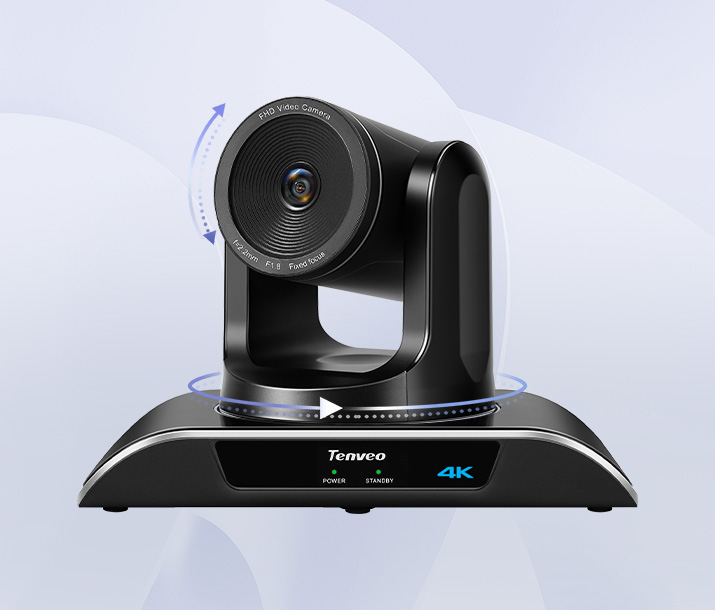

Pan: 0 to 340 degree. Tilt: 0 to 120 degree. 5X digital zoom 4K UHD 30fps video output, allow you to enjoy a nice image.


Easy Preset Setting

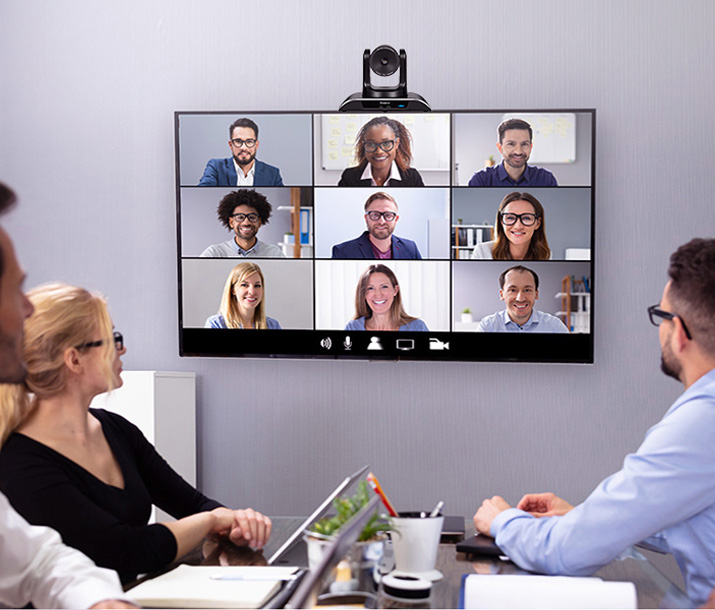

The 4K PTZ camera could be controlled to the focused points quickly by the presets in the meetings. It's very efficient for discussion collobaration.


Universal Compatibility

Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.


Easy to Use

Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.

ModelTEVO-VHD4K
Sensor1/2.8''SONY CMOS
Effective pixel8.29mega pixel
Video output pixel4K-30/25,2K-30/25,1080p-30/25
Zoom5x optical zoom

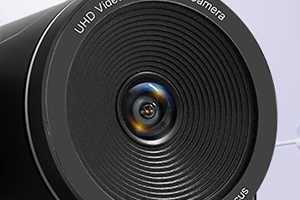

Lensf=2.2mm
ApertureF1.8
Horizontal angle107°
Video outputUSB 2.0
Video resolution1080P (1920 *1080)
Siginal standardNTSC/PAL
Preset position64
Control temernalRS-232,RS485
Shutter 1/30s~1/10000s, auto
Baud Rate38400/9600bps
Control protocolVISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB protocolUVC1.1
Minimal Illumination0.1Lux
SNR≥50dB
Video encoding formatH.264, MJPEG, YUV
Horizontal Rotation350°(±175°)0.1°/s~100°/s
Vertical Rotation90°(±45°)0.1°/s~80°s
Power supplyDC 12V/2A
Power comsumption12W
