4k 10x optical zoom conference PTZ camera for video conferencing

LOADING IMAGES
10x zoom 4k PTZ camera with USB3.0 output10x zoom 4k PTZ camera with USB3.0 output10x zoom 4k PTZ camera with USB3.0 output10x zoom 4k PTZ camera with USB3.0 output

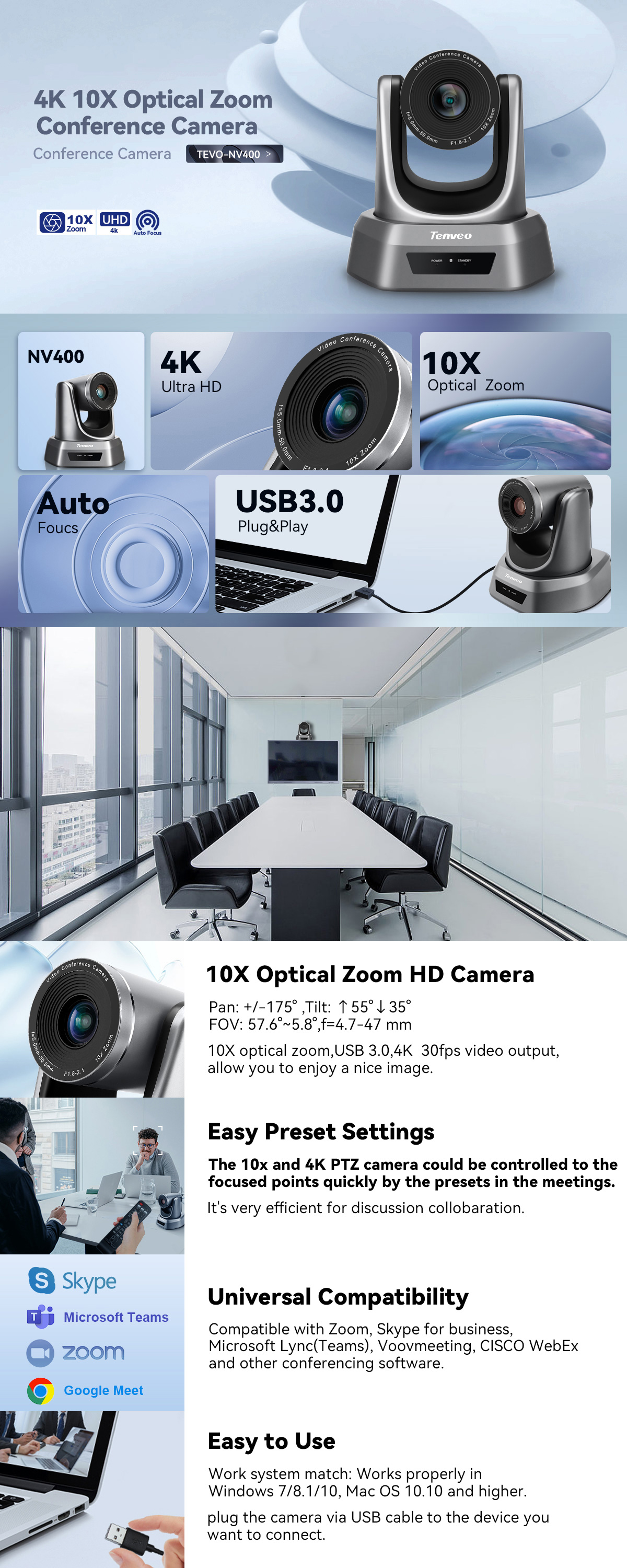

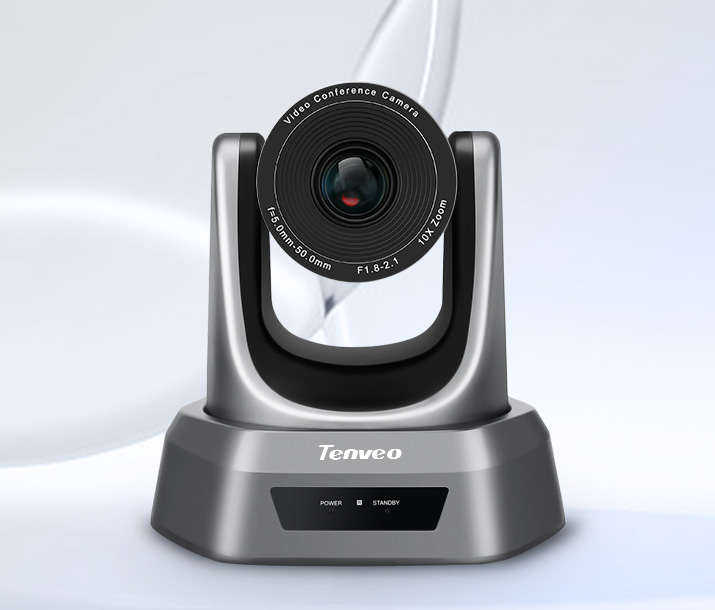

4k 10x optical zoom conference PTZ camera for video conferencing
1. 10x optical zoom，Sleek and intelligent design, Plug & Play USB3.0 Connectivity
2. Crystal clear 4K image quality，Wide field of view with no video distortion
3. Preset: 10 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
4. 1/2.8 inch  SUNNY UHD CMOS, 8.29MP (16:9) CMOS sensor
5. Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
6. Compatible with most leading video conferencing software and platform
Product introductionTech SpecPackagingSend inquiry




Sensor1/2.8 inch  SUNNY UHD CMOS
Effective pixel8.29 mega pixel
Video output pixel4K(3840*2160)
Zoom10x optical zoom
Lensf=4.34mm～35.17mm
ApertureF1.85～2.63
Horizontal angle68.8°(W)～8.8°(T)
Video outputUSB 3.0
Video resolution4K(3840*2160)
Siginal standardNTSC/PAL
Preset position64
Control temernalRS-232,RS485
Shutter 1/30s～1/10000s, auto
Baud Rate38400/9600bps
Control protocolVISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB protocolUVC1.1
Minimal Illumination0.1Lux
SNR≥50dB
Video encoding formatH.264, MJPEG, YUV
Horizontal Rotation350°（±175°）0.1°/s～100°/s
Vertical Rotation90°（±45°）0.1°/s～80°s
Power supplyDC 12V/2A
Power comsumption12W
