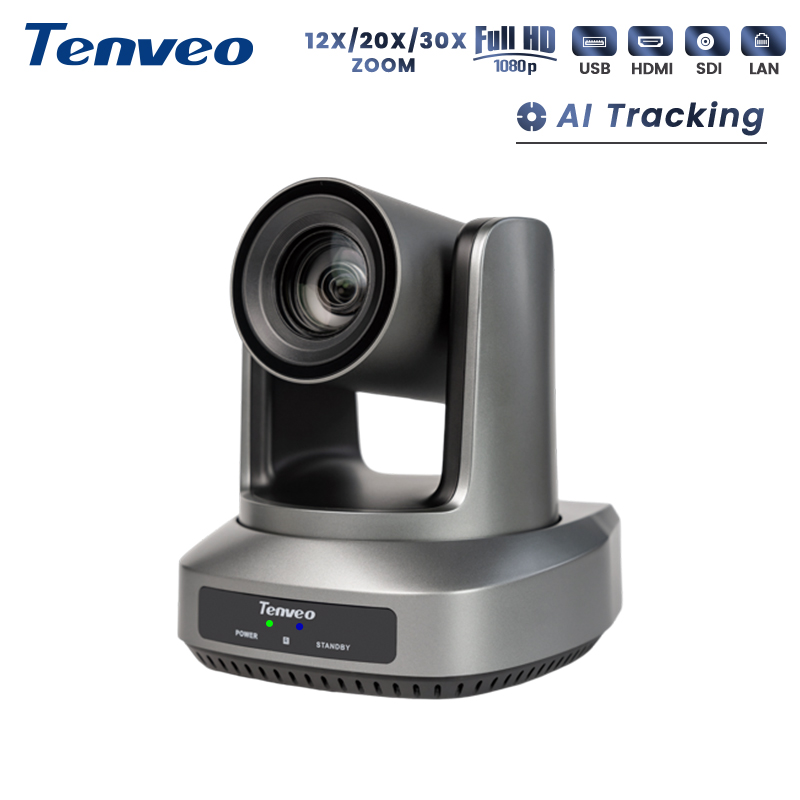

12/20/30X optical Zoom, full hd Resolution, Sony CMOS Sensor allow you to enjoy a crystal image.

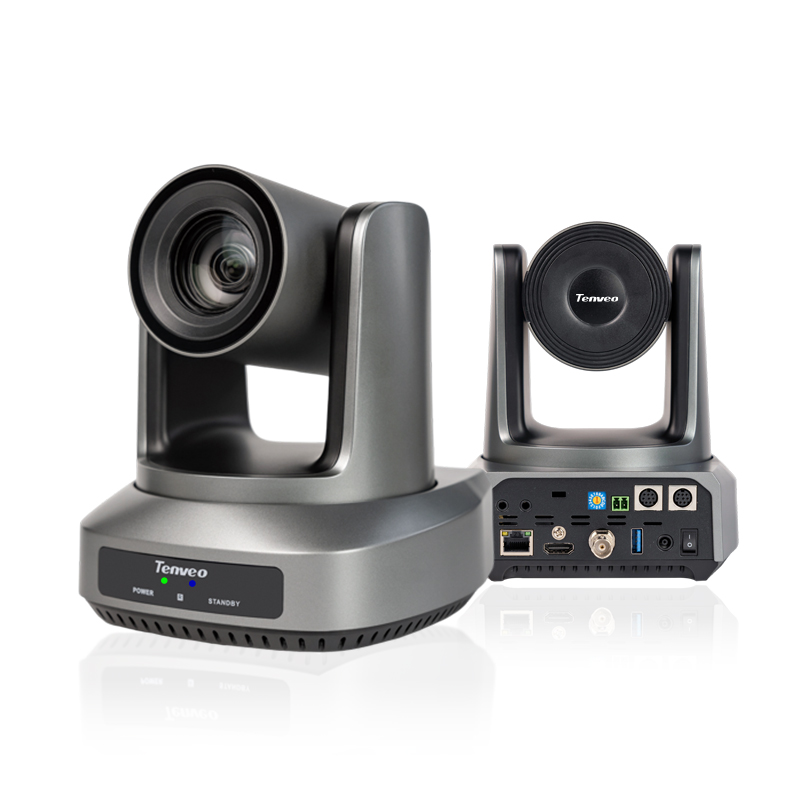

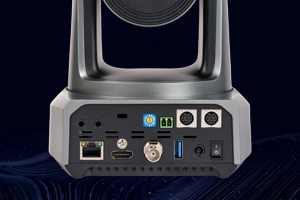

The camera is compatible with multiple devices through USB 3.0, HDMI, SDI, RJ45, RS485, RS232 interfaces. It also supports NDI PoE.

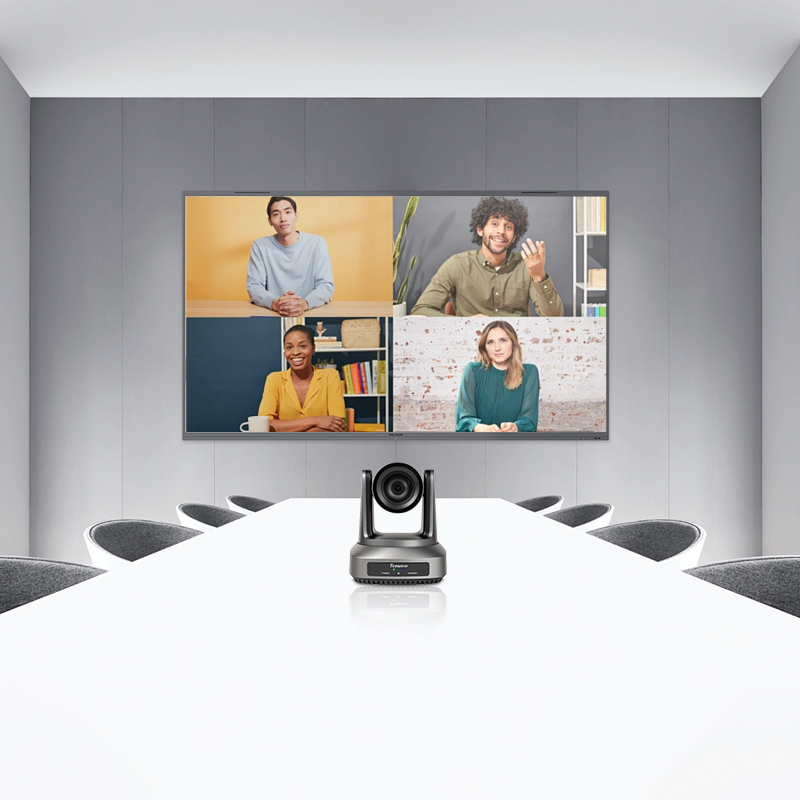

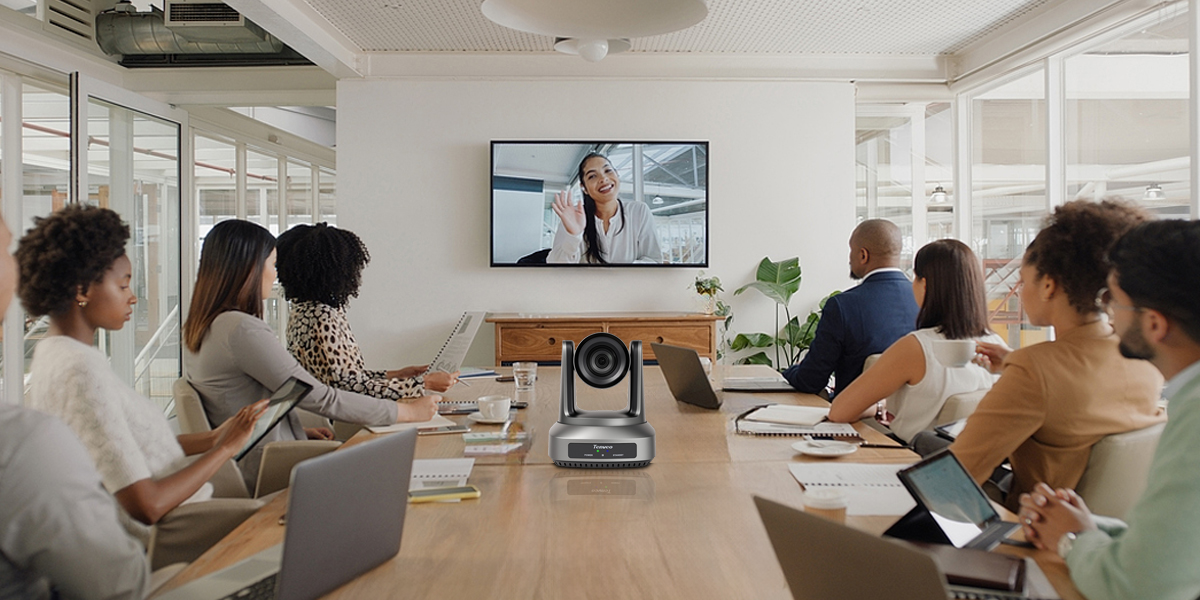

Autoframing can automatically position all the participants in the center of the screen. The auto tracking function can select specific attendees and will continuously follow her/his movements.
Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.
| Model | TEVO-UV MAX 612A/620A/630A |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 2.07MP |
| Lens | f=3.5mm ~ 42.3mm/f=4.42mm ~ 88.5mm/f=4.42mm ~ 132.6mm |
| Zoom | 12/20/30x optical zoom |
| Video Interfaces | USB 3.0, HDMI, RJ45, SDI |

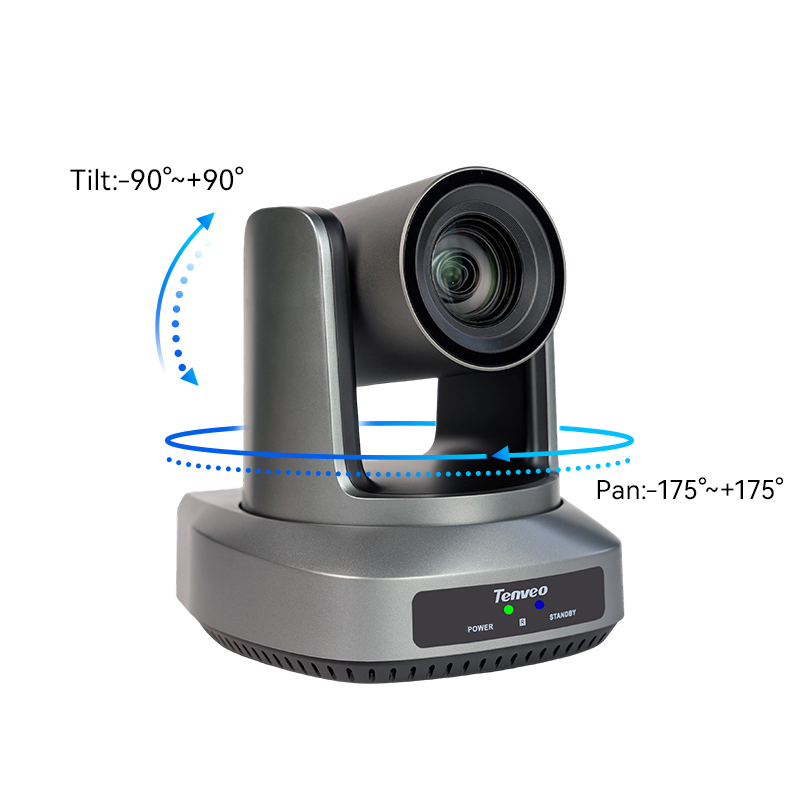

| Pan/Tile Rotation | 350° (±175°) 0.1°/s～100°/s |
| Horizontal Angle | 72.29° ~ 6.74°/64.98° ~ 3.47°/63.7° ~ 3.28° |
| Vertical Angle | 43.43° ~ 3.83°/38.41° ~ 1.98°/37.1° ~ 1.68° |
| Diagonal Angle | 80.71° ~ 7.65°/72.88° ~ 3.95°/72.5° ~ 3.63° |
| Backlight Compensation | Support |
| Video Format | HDMI&3G-SDI：1080P60, 1080P50, 1080I60, 1080I50，1080P30, 1080P25,720P60, 720P50, 1080P29.97, 1080P59.94, 720P59.94, 1080I59.94 |
USB3.0： H.264 ：max to 1080P@60fps MJPG：max to 1080P@60fps YUY2：max to 1080P@5fps | |
| SNR | ≥50dB |
| Focus | Auto / Manual |
| Digital Noise Reduction | 2D & 3D Noise Reduction |
| Exposure | Auto / Manual |
| Video Compression Format | H.264, H.265, MJPEG, YUY2 |
| LAN | 1xRJ45:10M/100M Ethernet Interface ;Support POE IEEE802.3af |
| Network Protocol | RTSP, RTMP, ONVIF, GB28181; Support VISCA Over IP |
| Control Protocol | VISCA/Pelco-D/Pelco-P;Baud Rate:9600/4800/38400/2400 |
| Control Interface | RS232 (input & output),RS485,TYPE-C(UVC1.1)，RJ45 |

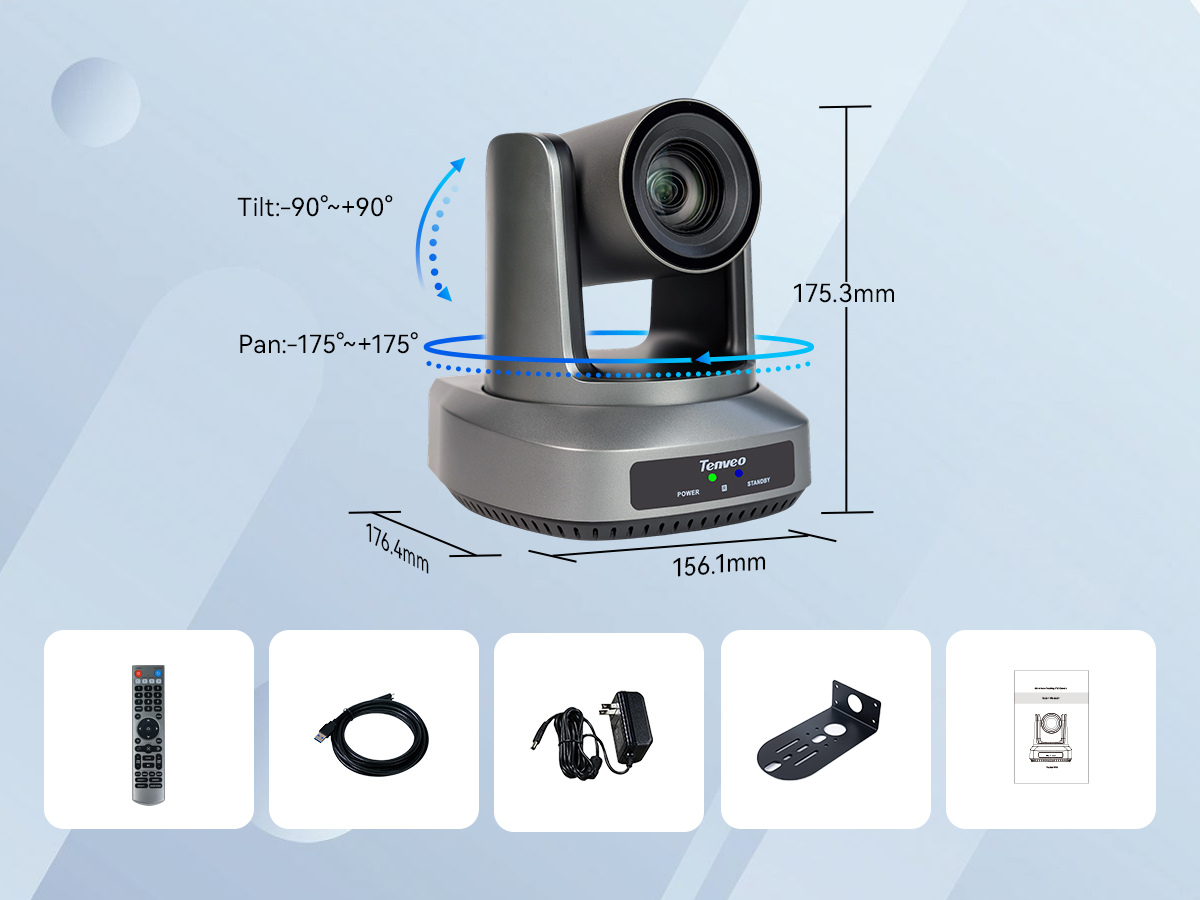

| Dimension（W*H*D） | 171.6*192.6*171.6mm/260*217*197mm (before / after packing) |
| N.W. / G.W | 1.43kg/2.096kg |
| Accessory | 1xCamera; 1xUSB Cable;1xPower Adapter; 1xWall Mount; 1xManual |
| Warranty | 3 Years Parts & Labor |
