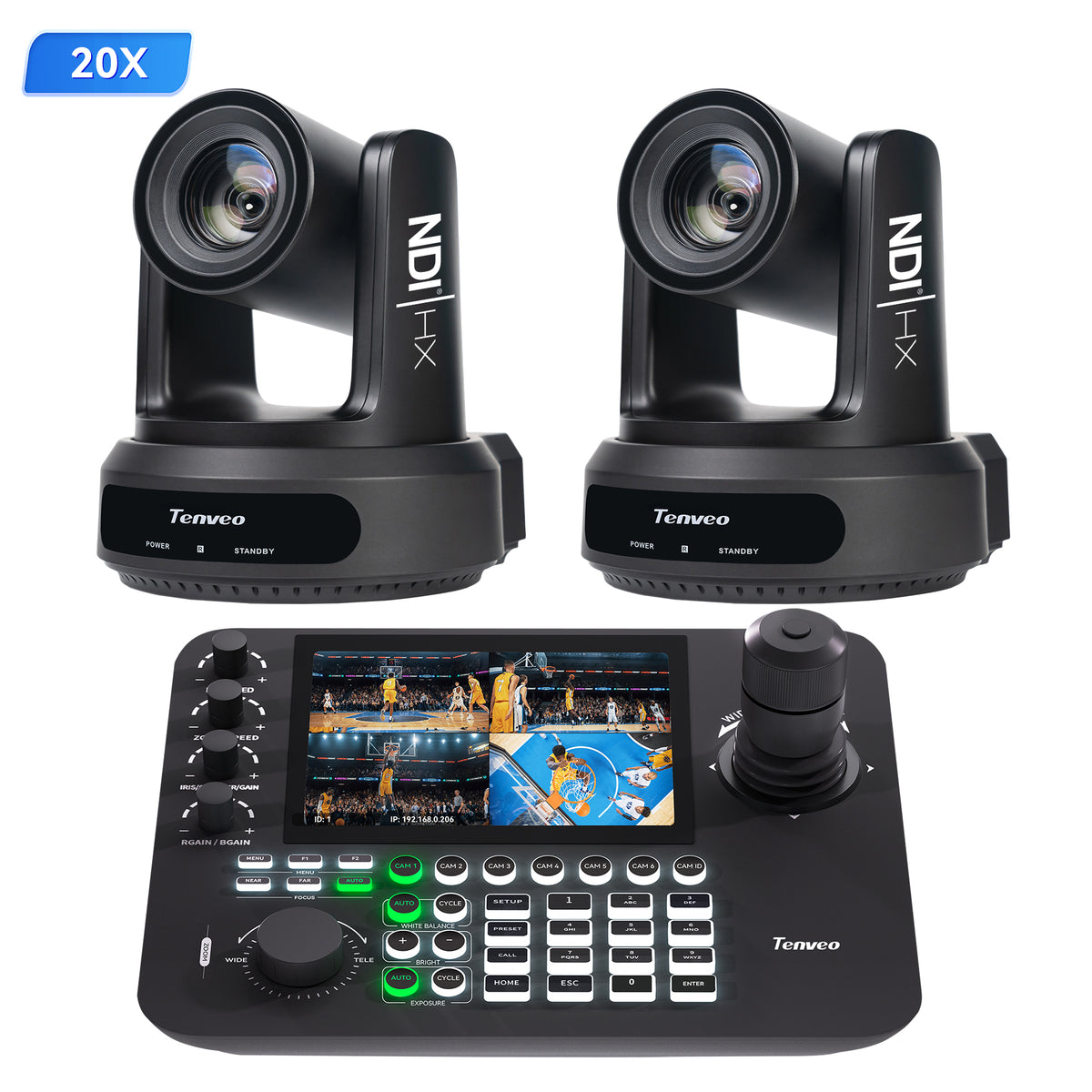

Tenveo 2-Camera 20X PTZ NDI Bundle with AI Auto-Tracking, KB300PRO Joystick Controller, 7" Multi-View & PoE
$1,699.00
Sale price
$1,699.00
Regular price
$1,857.00
Skip to product information
Tenveo 2-Camera 20X PTZ NDI Bundle with AI Auto-Tracking, KB300PRO Joystick Controller, 7" Multi-View & PoE
$1,699.00
Sale price
$1,699.00
Regular price
$1,857.00
1. Complete 2-Camera PTZ Broadcasting System
Two 20X PTZ cameras and a professional KB300PRO joystick controller deliver a complete multi-camera solution for churches, live events, studios, and corporate productions.
2. AI Auto-Tracking & 20X Optical Zoom
AI-powered auto-tracking keeps speakers and performers in frame, while 20X optical + 16X digital zoom captures clear close-ups from a distance.
3. 1080p60 with NDI, SDI, HDMI & USB 3.0
Capture and stream smooth 1080p60 video with flexible NDI, 3G-SDI, HDMI, and USB 3.0 connectivity for professional production workflows.
4. Simple PoE Single-Cable Setup
Power and connect the cameras through a single Ethernet cable with PoE, reducing cable clutter and simplifying installations over long distances.
5. KB300PRO 7" Multi-View PTZ Control
Monitor up to four camera feeds on the 7" LCD and precisely control pan, tilt, zoom, focus, presets, and more with the 4D joystick.
The Tenveo Advantage
Fast & Free Shipping
3-Year Product Warranty
30-Day Returns
Lifetime Customer Support
Pay with Ease
Tenveo 2-Camera 20X PTZ NDI Bundle with AI Auto-Tracking, KB300PRO Joystick Controller, 7" Multi-View & PoE
$1,699.00
Sale price
$1,699.00
Regular price
$1,857.00
Pickup currently not available
User Scenarios
Product Specification
| Image sensor | 1/2.8'' IMX662 |
|---|---|
| Effective pixels | 2.07MP |
| Video signals | HDMI&3G-SDI: 1080P60fps, 1080P59.94fps, 1080P50fps, 1080P30fps, 1080P29.97fps, 1080P25fps, 1080I60fps, 1080I59.94fps, 1080I50fps, 720P60fps, 720P59.94fps, 720P50fps USB3.0: H.264: max to 1080P@60fps MJPG: max to 1080P@60fps YUY2: max to 1080P@60fps" |
| Lens & Aperture | F1.8 ~ F2.8 |
| Digital zoom | 16X |
| Zoom speed | 1~8 |
| Focal length | f=4.42mm~88.5mm |
| Horizontal angel | 64.98°~3.47° |
| Vertical angel | 38.41°~1.98° |
| Diagonal angle | 72.88°~3.95° |
| AI Support | Yes |
| AI Mode | Single-person tracking/Multi-person tracking/Area tracking |
| Minimum illumination | 0.1lux |
| Shutter | 1/25s~1/10000s |
| White balance | Auto/Manual/Indoor/Outdoor/Specific Color Temperature/One-push |
| Backlight compensation | Yes |
| Digital noice reduction | 2D&3D DNR |
| SNR | >50dB |
| Exposure | Auto/Manual |
| Focus | Auto/Manual |
| Video encoding format | H.264/H.265/MJPEG |
| Pan rotation | 350°(±175°) |
| Tilt rotation | 180°(±90°) |
| Auto flip | No |
| Image freeze | Yes |
| PoE | Yes |
| Preset positions | Remote: 10, Serial Port: 255 |
| Preset accuracy | Accuracy: 0.1° |
| Preset Call-up Speed | Pan: 0.1°/s~100°/s; Tilt: 0.1°/s~80°/s |
| Video compression | H.265/H.264/MJPEG |
| Video stream | Primary Stream, Secondary Stream |
| Main stream resolution | 1920*1080, 1280*720, 1024*576, etc. |
| Sub stream resolution | 1280*720, 1024*576, 720*480, etc. |
| Bit rate | 32Kbps~20480Kbps |
| Bit rate type | VBR/CBR |
| Frequency | 50Hz/60Hz |
| Frame rate | 50Hz: 1fps~50fps 60Hz: 1fps~60fps |
| Audio compression | AAC |
| Audio bit rate | 96Kbps, 128Kbps, 256Kbps |
| Network protocal | NDI|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(S), Onvif, DHCP, Support VISCA Over IP, GB/T28181, Multicast, etc. |
| Support operating system | Windows/macOS/Android/Linux |
| Color space compression | YUY2/H.264/MJPEG/H.265 |
| Video format | H.264: max to 1080P@60fps MJPG: max to 1080P@60fps YUY2: max to 1080P@5fps |
| Usb video communication protocal | UVC1.1 |
| Uvc ptz control | Yes |
| HD Output | 1*HDMI, 1*USB 3.0, 1xSDI |
| Network interface | RJ45 |
| USB Interface | 1*USB3.0, Type-B Port |
| Audio interface | 1*Line In, 3.5mm Audio Jack 1*Line Out, 3.5mm Audio Jack |
| Communication interface2 | 1*RS232 In: 8-pin mini-DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P Protocol 1*RS485: 2-pin terminal block, Max Distance: 1214m, VISCA/Pelco-D/Pelco-P Protocol |
| SD Card | No |
| Restore button | No |
| Power interface | DC12V Power Port |
| Built-in Mic | |
| Voice pickup range | |
| Built-in Speaker | |
| Input voltage | DC12V |
| Input current | 2A |
| Operating temperature | 0°C~40°C |
| Operating humidity | 20%~80% RH |
| Power consumption | 24W(Max.) |
| Package includes | |
| Dimension (Before/After Package) | |
| Net/Gross Weight | 1.5kg/2.7kg |
