1. Complete 3-Camera Live Production Solution

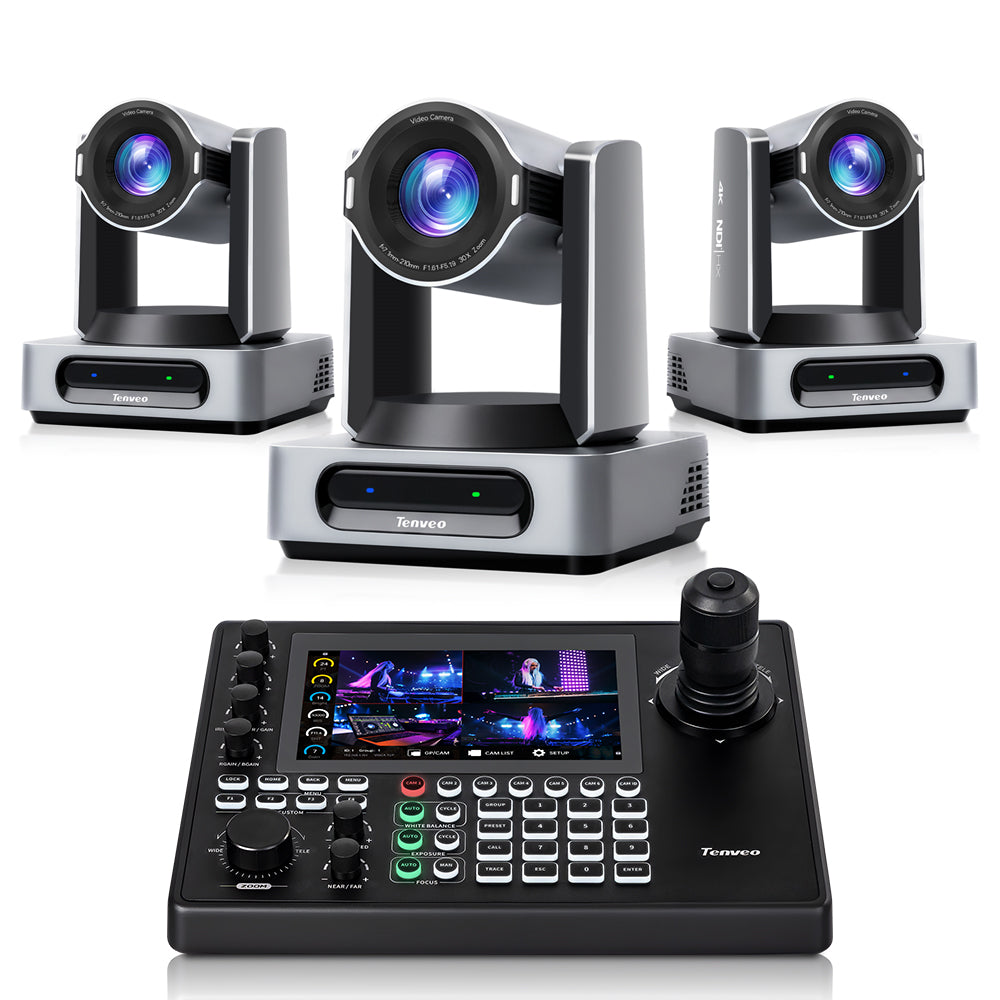

Create a professional multi-camera production system with three Tenveo 4K PTZ cameras and the KB500 joystick controller. Designed for churches, studios, live events, education, and broadcasting, this all-in-one bundle simplifies video capture, control, and streaming.

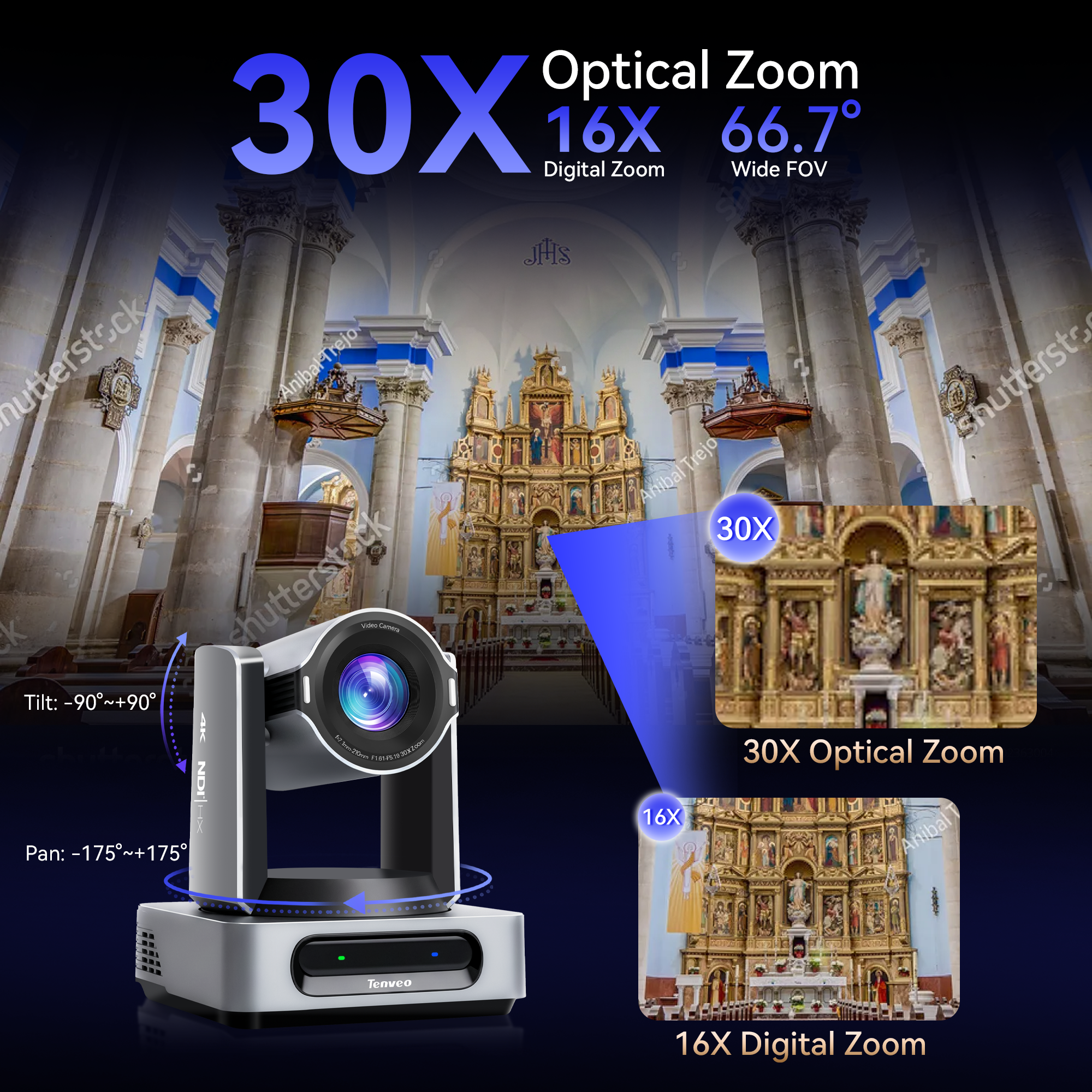

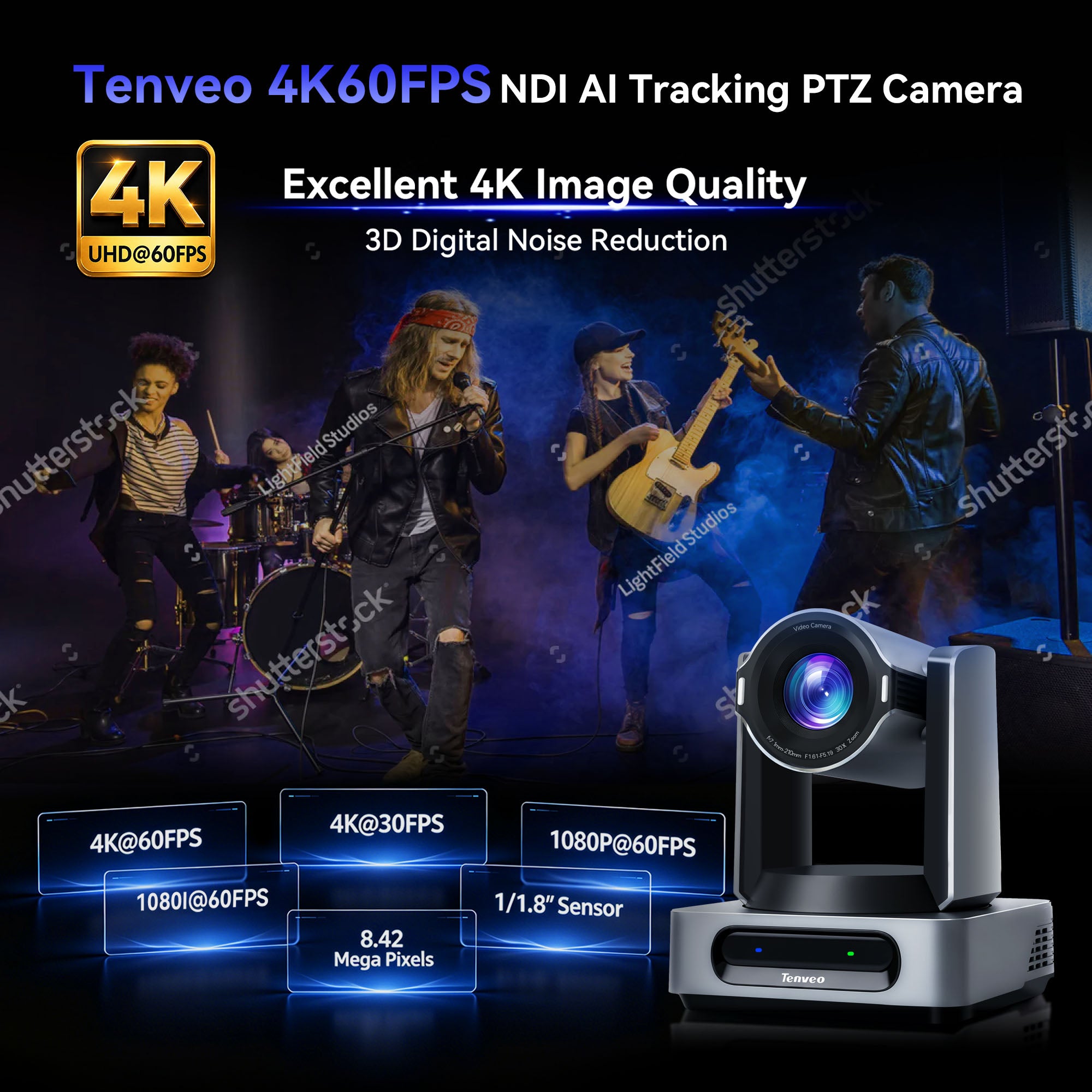

2. 4K 60FPS Video with 30X Optical Zoom
Powered by a 1/1.8-inch 8.42MP CMOS sensor, VX30M-Ultra delivers stunning 4K 60FPS video with smooth motion and exceptional clarity. The 30X optical zoom lens + 16 digital zoom lens captures detailed shots from wide venues to close-up scenes with ease.
3. AI Auto Tracking 3.0 for Intelligent Shooting
Advanced AI technology automatically detects, tracks, and keeps your subject perfectly framed during movement. With Presenter Tracking, Auto Framing, and Zone Tracking modes, it delivers smooth hands-free production for professional applications.

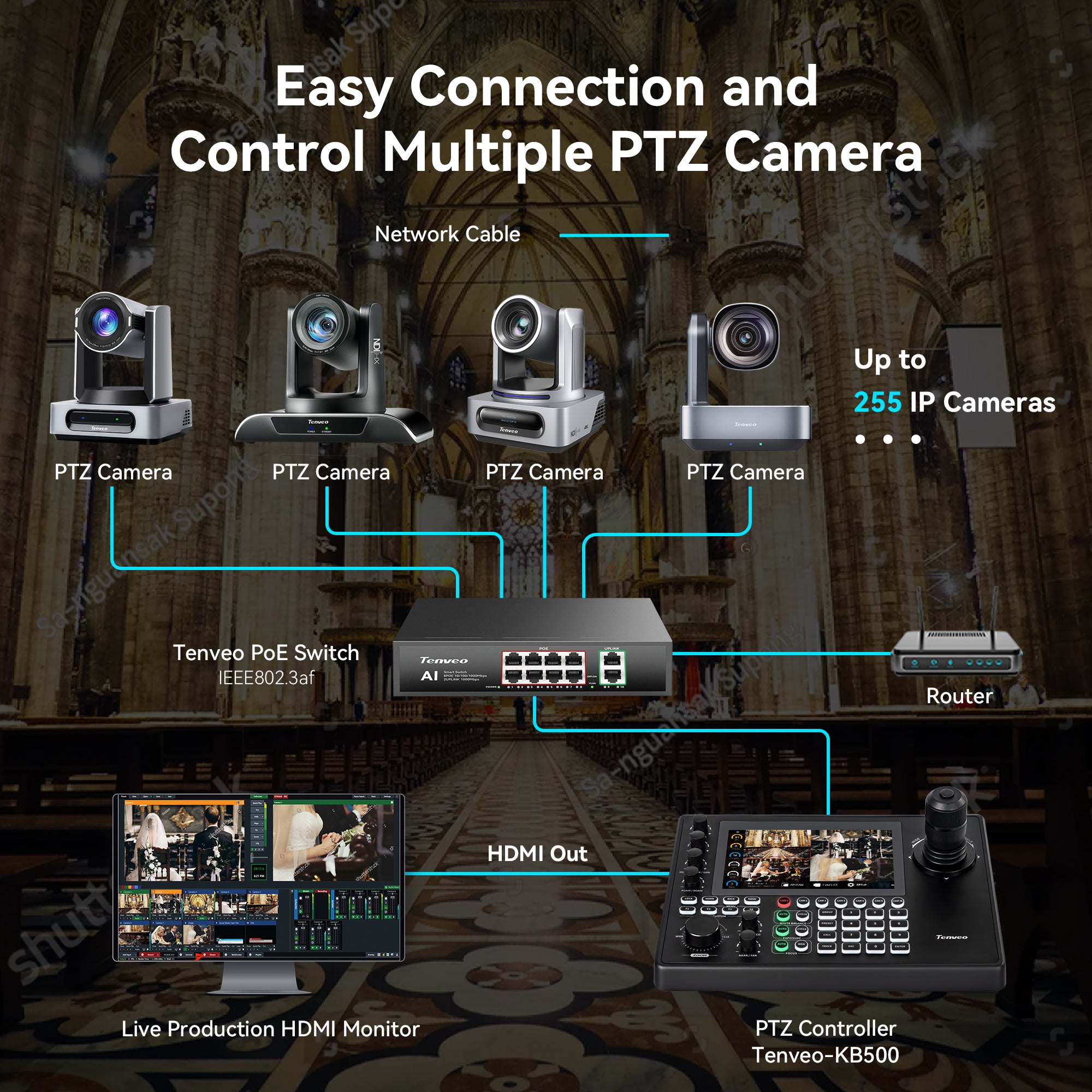

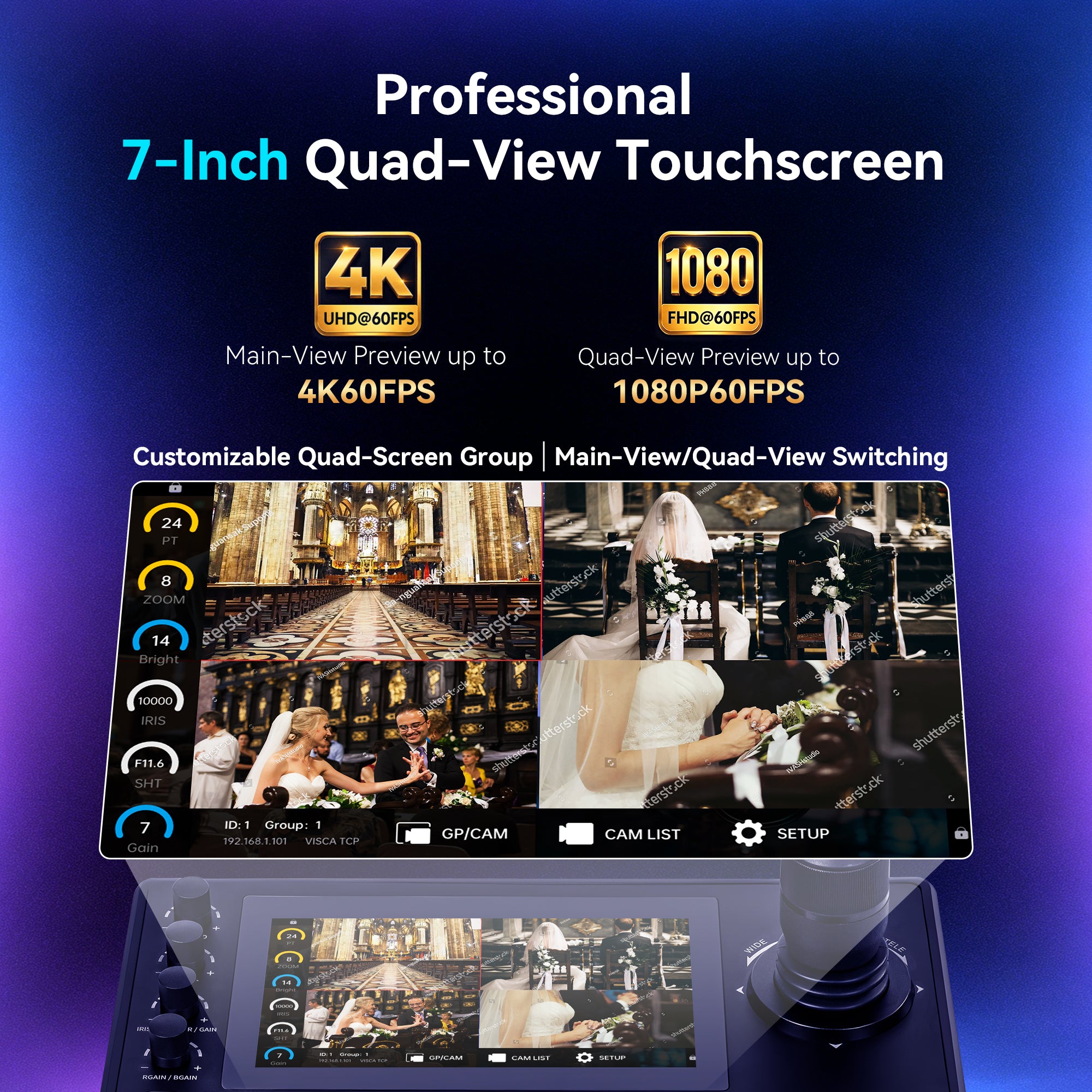

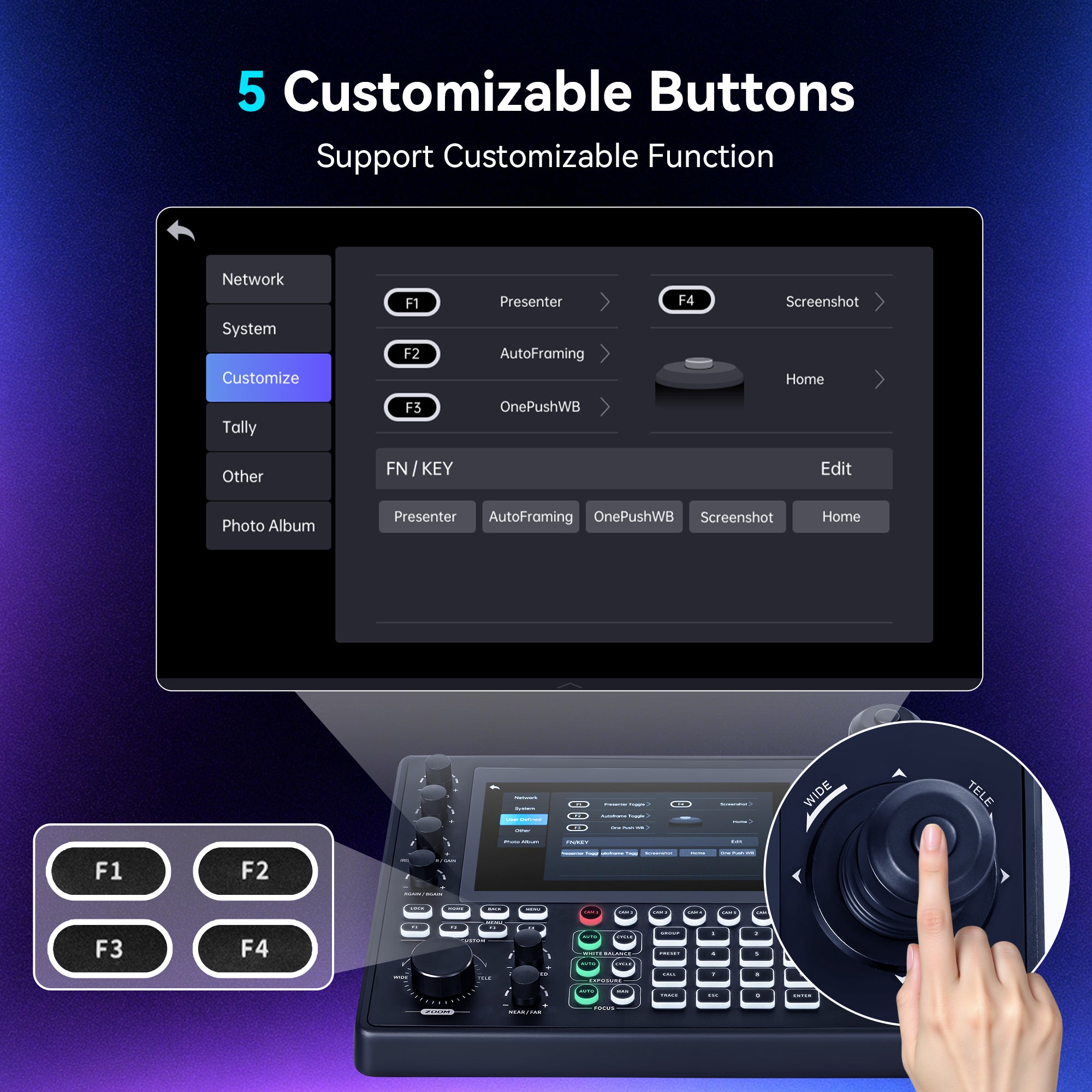

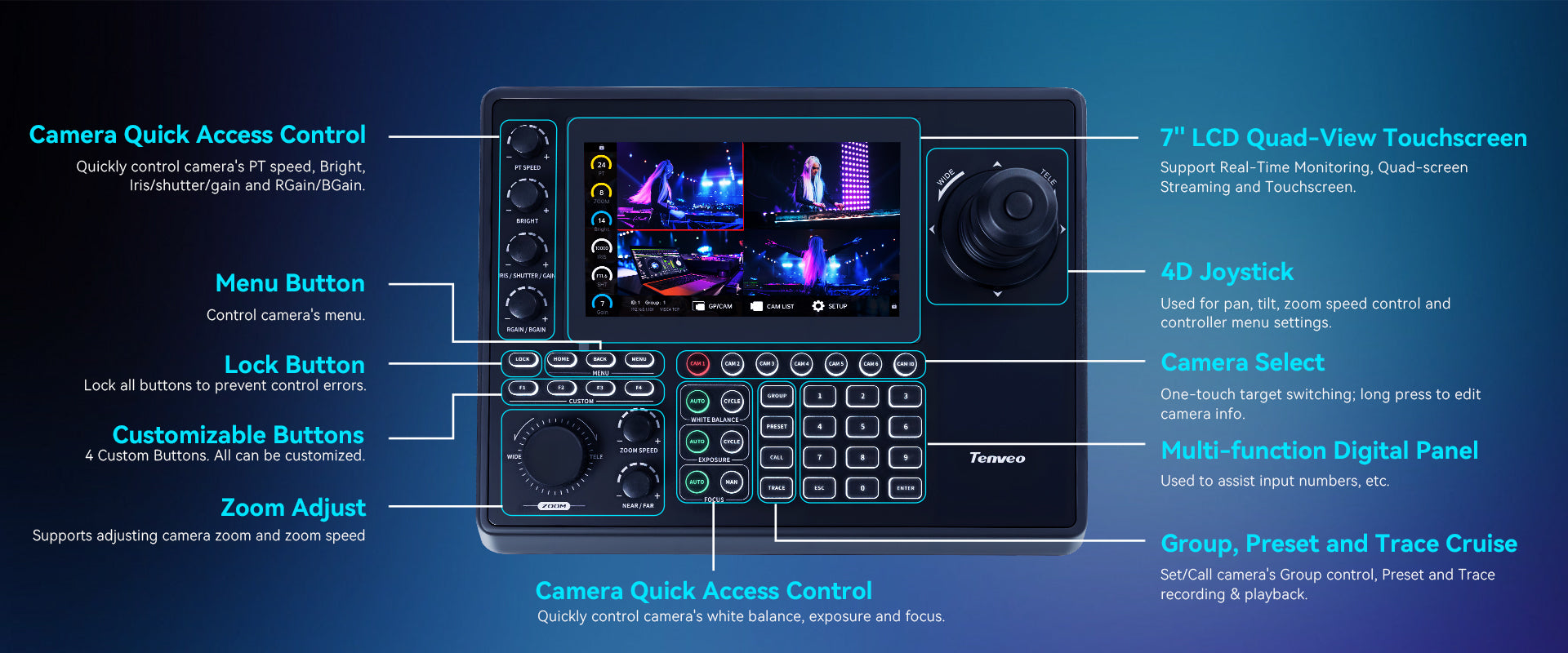

4. Professional Control with KB500 Touchscreen Joystick Controller

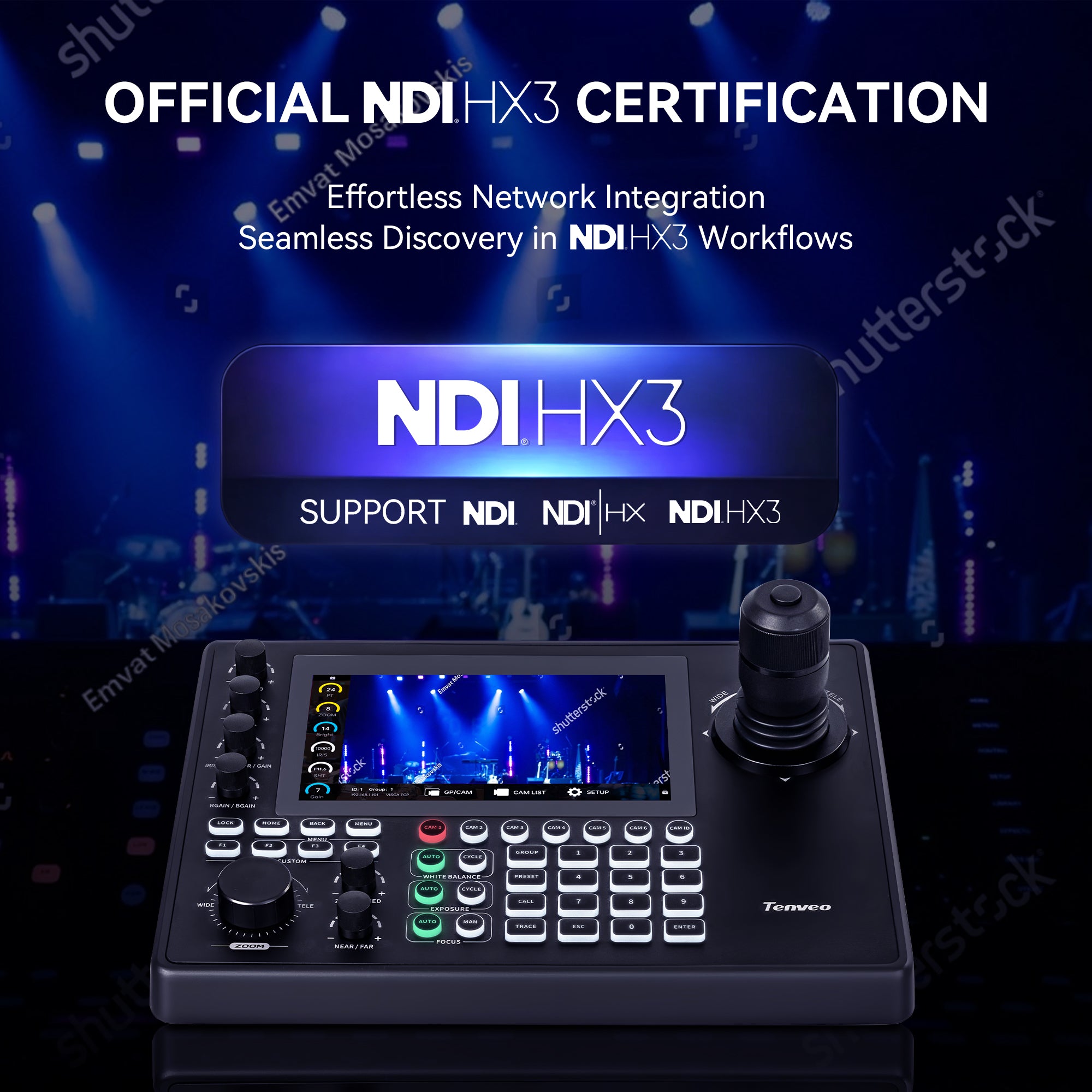

The included KB500 controller features a precision 4D joystick, 7-inch touchscreen, real-time monitoring, and multi-camera control. Support for VISCA, VISCA over IP, ONVIF, PELCO-P/D, and NDI | HX3 ensures flexible integration with professional workflows.
5. NDI | HX3 & Broadcast-Ready Connectivity

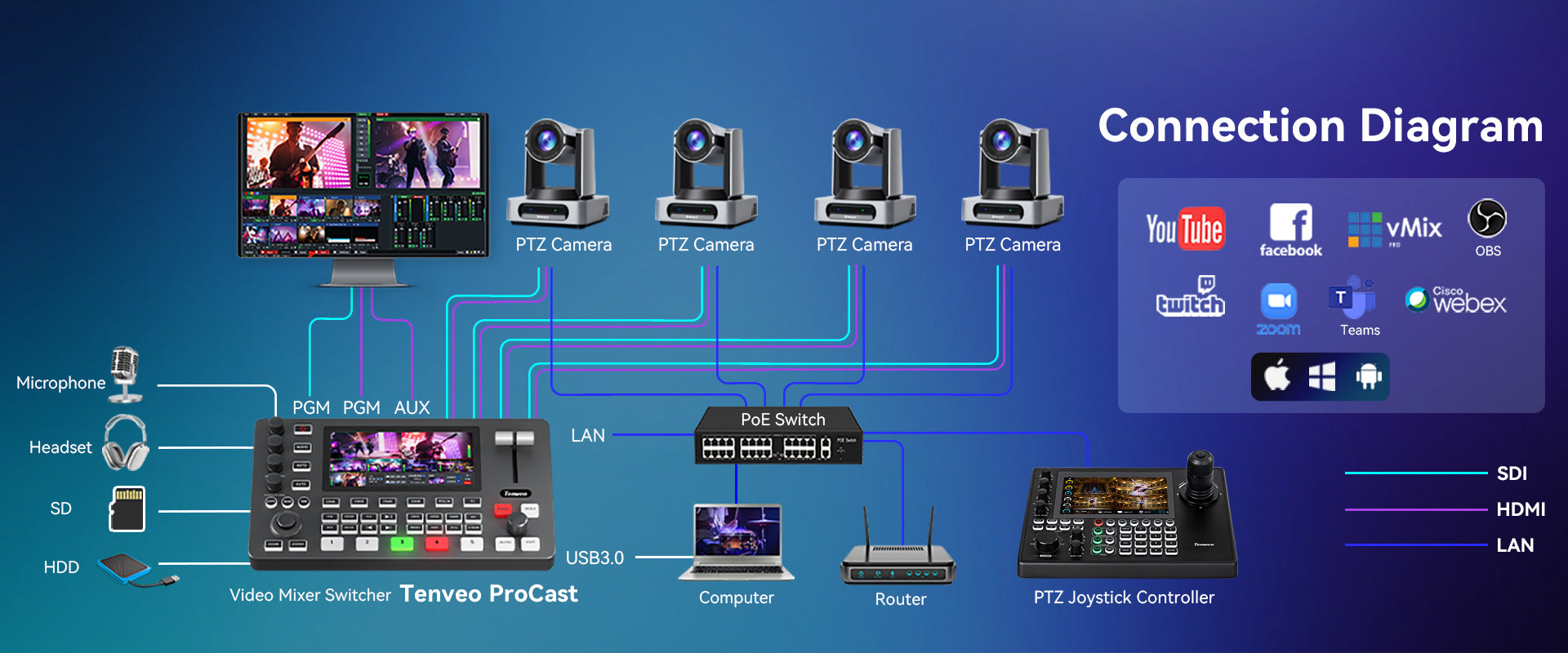

Support NDI | HX3, HDMI, 3G-SDI, USB 3.0, and LAN connections for flexible video production setups. With PoE support, Tally light, FreeD, RTMP/RTSP/SRT streaming, and multi-camera synchronization, this system is built for professional live production.
The Tenveo Advantage
Fast & Free Shipping
3-Year Product Warranty
30-Day Returns
Lifetime Customer Support
Pay with Ease
Tenveo 4K 60FPS NDI PTZ Camera Bundle with 3 AI Tracking PTZ Cameras & NDI HX3 Joystick Controller | 30X Optical Zoom Multi-Camera Live Production System
$3,399.00
Sale price
$3,399.00
Regular price
Pickup currently not available
User Scenarios
Product Specification
| Image sensor | 1/1.8" |
|---|---|
| Effective pixels | 8.42MP |
| Video signals | HDMI: 4KP60fps, 4KP59.94fps, 4KP50fps, 4KP30fps, 4KP29.97fps, 4KP25fps, 1080P60fps, 1080P59.94fps, 1080P50fps, 1080P3030fps, 1080P29.97fps, 1080P25fps, 1080I60fps, 1080I59.94fps, 1080I50fps, 720P60fps, 720P59.94fps 3G-SDI: 1080P60fps, 1080P50fps, 1080P30fps, 1080P29.97fps, 1080P59.94fps, 1080P25fps; 1080I60fps, 1080I50fps, 1080I59.94fps; 720P60fps, 720P59.94fps USB3.0: H.264: max to 2160P@30fps H.265: max to 2160P@30fps MJPEG: max to 2160P@30fps YUY2: max to 1080P@30fps |
| Lens & Aperture | F1.61~F5.19 |
| Digital zoom | 16x |
| Zoom speed | 1~8 |
| Focal length | f=7.1mm~210mm |
| Horizontal angel | 59.2°~2.5° |
| Vertical angel | 34.6°~1.4° |
| Diagonal angle | 66.7°~2.9° |
| AI Support | Yes |
| AI Mode | Single Person Tracking/Multiple Person Tracking/Area Tracking |
| Minimum illumination | 0.5 Lux@(F1.8, AGC ON) |
| Shutter | 1/30s~1/10000s |
| White balance | Auto/Manual/Indoor/Outdoor/Specific Color Temperature/One-push |
| Backlight compensation | Yes |
| Digital noice reduction | 3D DNR |
| SNR | ≥55dB |
| Exposure | Auto/Manual/Shutter Priority/Aperture Priority/Brightness Priority |
| Focus | Auto/Manual |
| Video encoding format | H.264/H.265/MJPEG/YUY2 |
| Pan rotation | 350°(±175°) |
| Tilt rotation | 180°(±90°) |
| Auto flip | Yes |
| Image freeze | Yes |
| PoE | Yes |
| Preset positions | Remote: 10; Serial Port: 255 |
| Preset accuracy | 0.1° |
| Preset Call-up Speed | Pan 0.1°/s~100°/s; Tilt 0.1°/s~80°/s |
| Video compression | H.264/H.265/MJPEG |
| Video stream | Primary Stream, Secondary Stream |
| Main stream resolution | 3840*2160, 1920*1080, 1280*720, 1024*576, etc. |
| Sub stream resolution | 720*480, 320*240, etc. |
| Bit rate | 32kbps~840000kbps(Secondary: 32kbps~20480kbps) |
| Bit rate type | VBR/CBR |
| Frequency | 50Hz/60Hz |
| Frame rate | 50Hz: 1fps~50fps 60Hz: 1fps~60fps |
| Audio compression | AAC |
| Audio bit rate | 96Kbps, 128Kbps |
| Network protocal | Dante AV-H, NDI®|HX2, NDI®|HX3, Free-D, SRT, TCP/IP, HTTP, RTSP, RTMP(s), ONVIF, DHCP, Multicast, etc. |
| Support operating system | Windows/macOS/Android/Linux |
| Color space compression | YUY2/H.264/MJPEG/H.265 |
| Video format | H.264: max to 2160P@30fps H.265: max to 2160P@30fps MJPEG: max to 2160P@30fps YUY2: max to 1080P@30fps |
| Usb video communication protocal | UVC 1.1~1.5 |
| Uvc ptz control | Yes |
| HD Output | 1*HDMI, 1*SDI, 1*USB 3.0 |
| Network interface | 1*RJ45(Supports PoE) |
| USB Interface | 1*USB3.0, Type-B Port |
| Audio interface | 1* Line In, 3.5mm Audio Jack 1* Line Out, 3.5mm Audio Jack |
| Communication interface2 | 1*RS232 In: 8-pin mini-DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P Protocol 1*RS232 Out: 8-pin mini-DIN, Max Distance: 30m, VISCA Protocol 1* RS485: 2-pin Phoenix Terminal, Max Distance: 1200m, VISCA/Pelco-D/Pelco-P Protocol |
| SD Card | No |
| Restore button | Yes |
| Power interface | JEITA Type (DC IN 12V) |
| Built-in Mic | |
| Voice pickup range | |
| Built-in Speaker | |
| Input voltage | DC12V |
| Input current | 2A |
| Operating temperature | 0°C~40°C |
| Operating humidity | 20%~80%RH |
| Power consumption | 24W(Max.) |
| Package includes | 3 × VX30M-Ultra PTZ Cameras + 1 × KB500 Keyboard Controller |
| Dimension (Before/After Package) | |
| Net/Gross Weight | 18kg/19kg |
