1. AI Auto Tracking for Hands-Free Production
Advanced AI tracking automatically detects and follows faces and human subjects, keeping speakers, pastors, presenters, and performers perfectly framed without a camera operator.
2. Stunning 4K60 UHD Video Quality
Powered by a 1/1.8" 8.42MP UHD CMOS sensor, the VX30M-Ultra delivers crystal-clear 4K60FPS video with exceptional detail, accurate colors, and excellent low-light performance.
3. 30X Optical Zoom for Large Venues
Capture every moment with precision. The powerful 30X optical zoom allows smooth transitions from wide-angle venue shots to detailed close-ups without losing image quality.
4. Professional Connectivity with NDI® Support

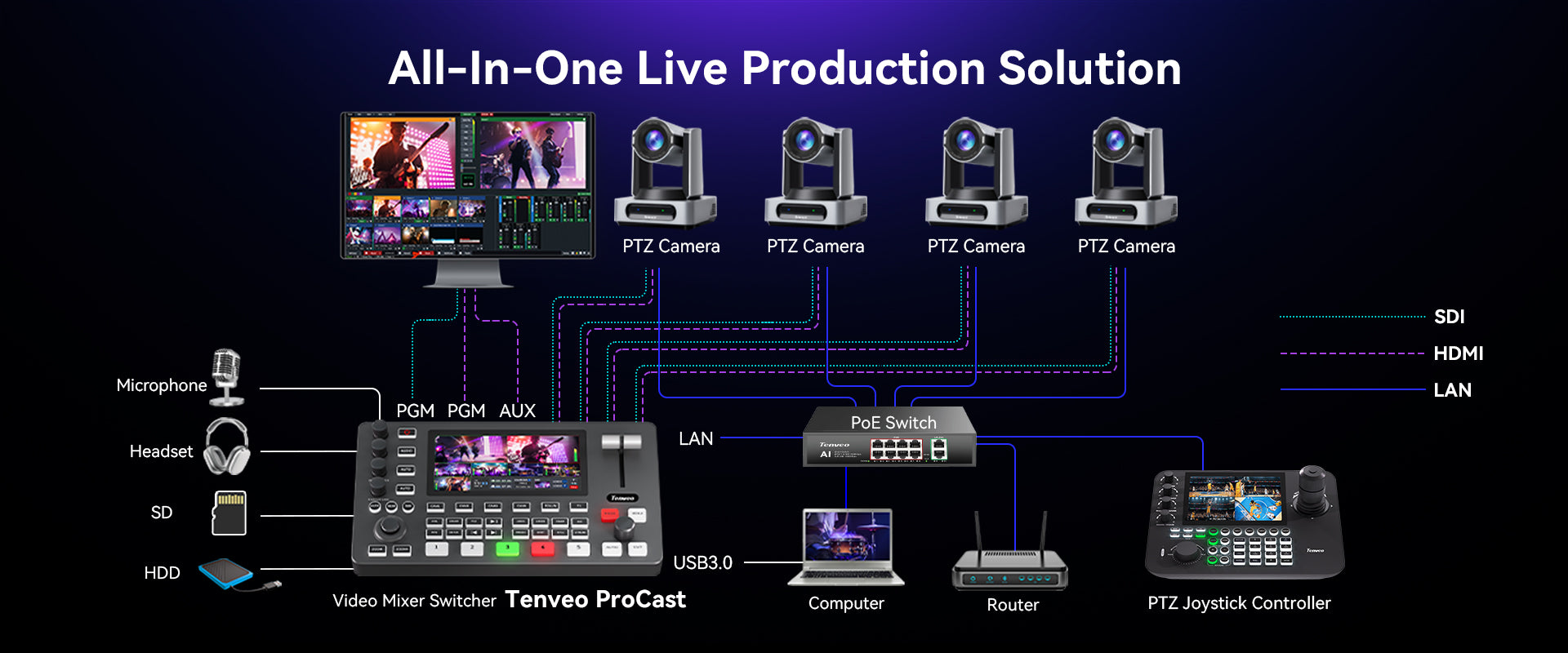

Integrates seamlessly into professional workflows with NDI®, 3G-SDI, HDMI, USB 3.0, and LAN (PoE). Ideal for live streaming, broadcasting, video conferencing, and IP-based production systems.
5. Built for Events & Studios
Featuring PTZ control, preset positions, and an integrated Tally Light, the VX30M-Ultra is perfect for houses of worship, conferences, education, sports events, and professional video production.
The Tenveo Advantage
Fast & Free Shipping
3-Year Product Warranty
30-Day Returns
Lifetime Customer Support
Pay with Ease
Tenveo VX30M-Ultra 4K60 NDI PTZ Camera with AI Auto Tracking | 30X Optical Zoom, SDI/HDMI/USB3.0/PoE for Live Streaming & Video Production
$949.00
Sale price
$949.00
Regular price
$999.00
Pickup currently not available

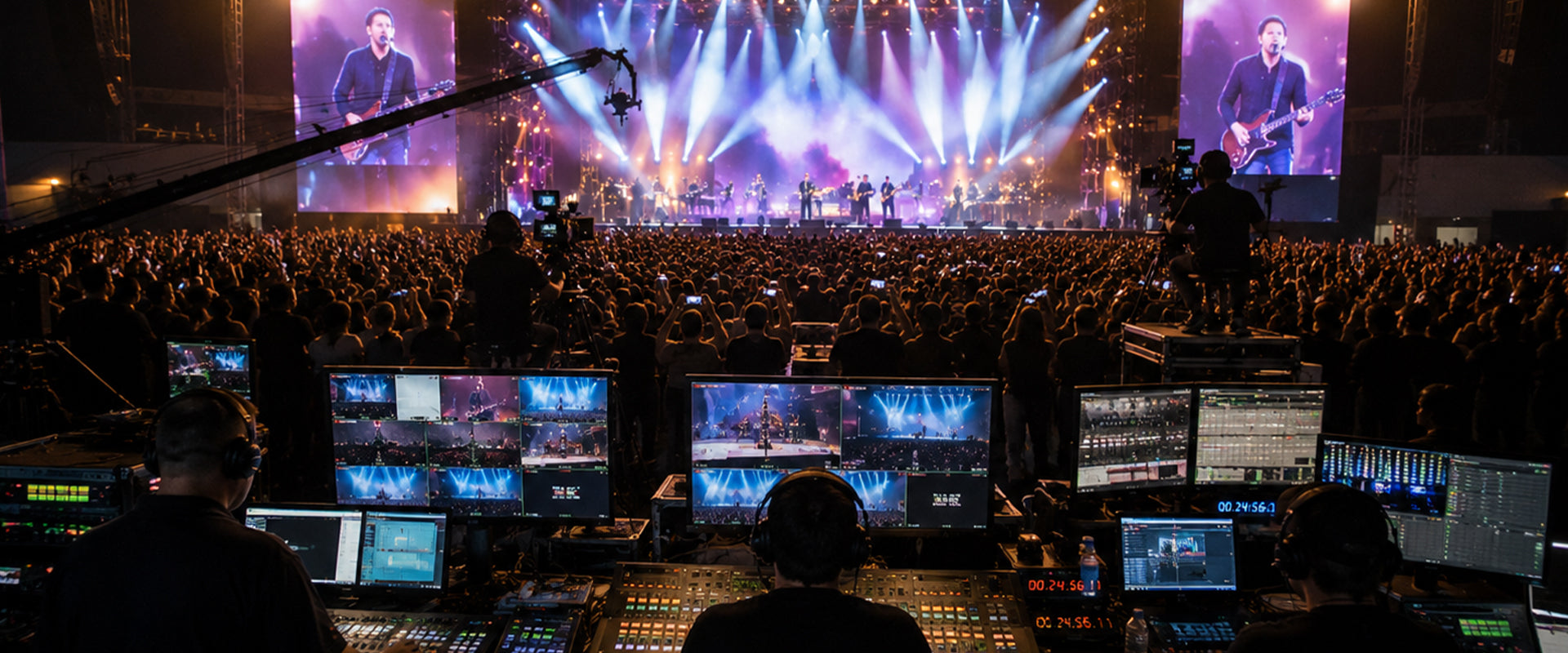

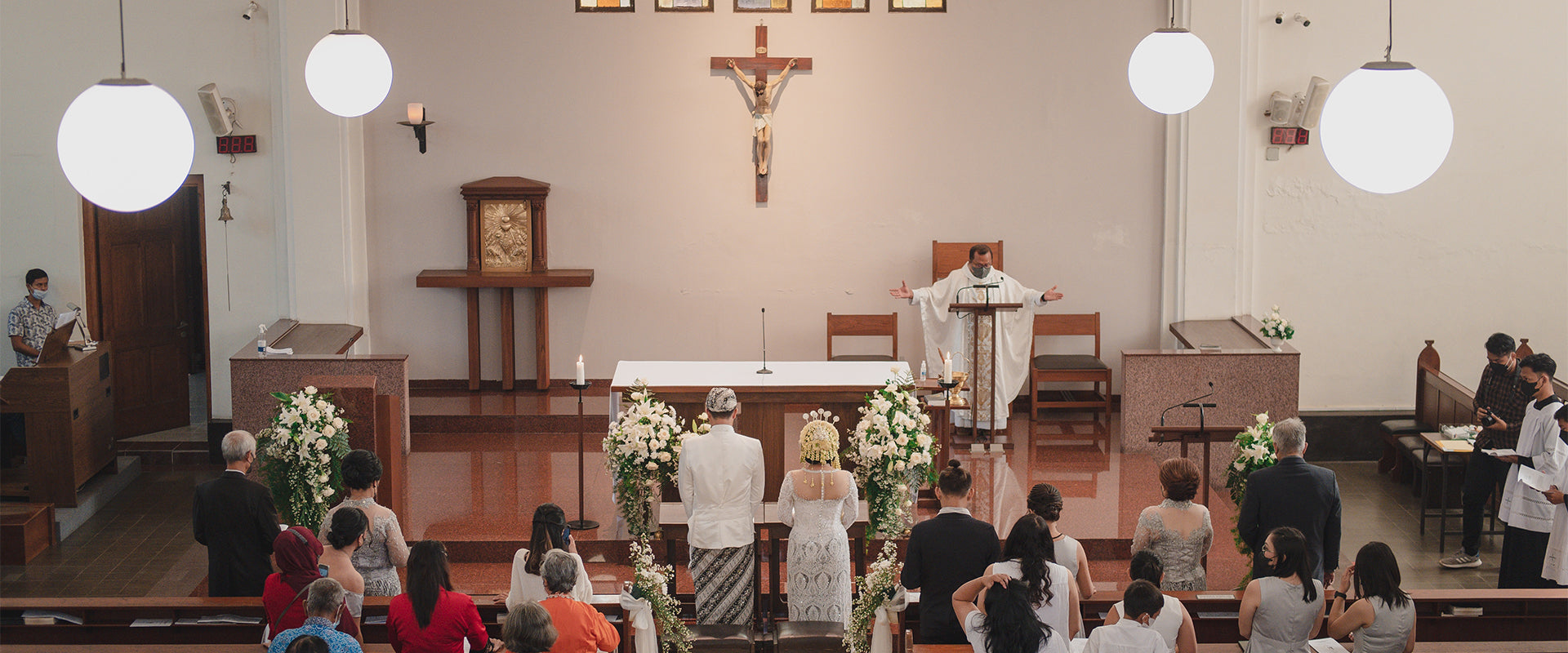

User Scenarios
Product Specification
| Image sensor | 1/1.8" IMX678 |
|---|---|
| Effective pixels | 8.42MP |
| Video signals | HDMI: 4KP60fps, 4KP59.94fps, 4KP50fps, 4KP30fps, 4KP25fps, 4KP29.97fps, 1080P60fps, 1080P50fps, 1080I60fps, 1080I50fps, 1080P30fps, 1080P59.94fps, 1080I59.94fps, 1080P29.97fps, 720P60fps, 720P59.94fps; 3G-SDI: 1080P60fps, 1080P50fps, 1080P30fps, 1080P29.97fps, 1080P59.94fps, 1080P25fps; 1080I60fps, 1080I50fps, 1080I59.94fps; 720P60fps, 720P59.94fps; USB2.0: H.264: max to 2160P@30fps H.265: max to 2160P@30fps MJPEG: max to 2160P@30fps YUY2: max to 1080P@5fps |
| Lens & Aperture | F1.58~F3.95 |
| Digital zoom | 16x |
| Zoom speed | 1~8 |
| Focal length | f=6.25mm~125mm |
| Horizontal angel | 59.6°~3.5° |
| Vertical angel | 35.7°~2.0° |
| Diagonal angle | 66.6°~4.0° |
| AI Support | Yes |
| AI Mode | Single Person Tracking/Multiple Person Tracking/Area Tracking |
| Minimum illumination | 0.5 Lux @(F1.8, AGC ON) |
| Shutter | 1/30s~1/10000s |
| White balance | Auto/Manual/Indoor/Outdoor/Specific Color Temperature/One-push |
| Backlight compensation | Yes |
| Digital noice reduction | 3D DNR |
| SNR | ≥55dB |
| Exposure | Auto/Manual/Shutter Priority/Aperture Priority/Brightness Priority |
| Focus | Auto/Manual |
| Video encoding format | H.264/H.265/MJPEG |
| Pan rotation | 350°(±175°) |
| Tilt rotation | 180°(±90°) |
| Auto flip | Yes |
| Image freeze | Yes |
| PoE | Yes |
| Preset positions | Remote: 10; Serial Port: 255 |
| Preset accuracy | 0.1° |
| Preset Call-up Speed | Pan 0.1°/s~100°/s; Tilt 0.1°/s~80°/s |
| Video compression | H.264/H.265/MJPEG |
| Video stream | Primary Stream, Secondary Stream |
| Main stream resolution | 3840*2160, 1920*1080, 1280*720, etc. |
| Sub stream resolution | 720*480, 320*240, etc. |
| Bit rate | 32Kbps~20480Kbps |
| Bit rate type | VBR/CBR |
| Frequency | 50Hz/60Hz |
| Frame rate | 50Hz: 1fps~50fps 60Hz: 1fps~60fps |
| Audio compression | AAC |
| Audio bit rate | 96Kbps, 128Kbps |
| Network protocal | Dante AV-H, NDI®|HX2, NDI®|HX3, Free-D, SRT, TCP/IP, HTTP, RTSP, RTMP(s), ONVIF, DHCP, Multicast, etc. |
| Support operating system | Windows/macOS/Android/Linux |
| Color space compression | YUY2/H.264/MJPEG/H.265 |
| Video format | H.264: max to 2160P@30fps H.265: max to 2160P@30fps MJPEG: max to 2160P@30fps YUY2: max to 1080P@30fps |
| Usb video communication protocal | UVC 1.1~1.5 |
| Uvc ptz control | Yes |

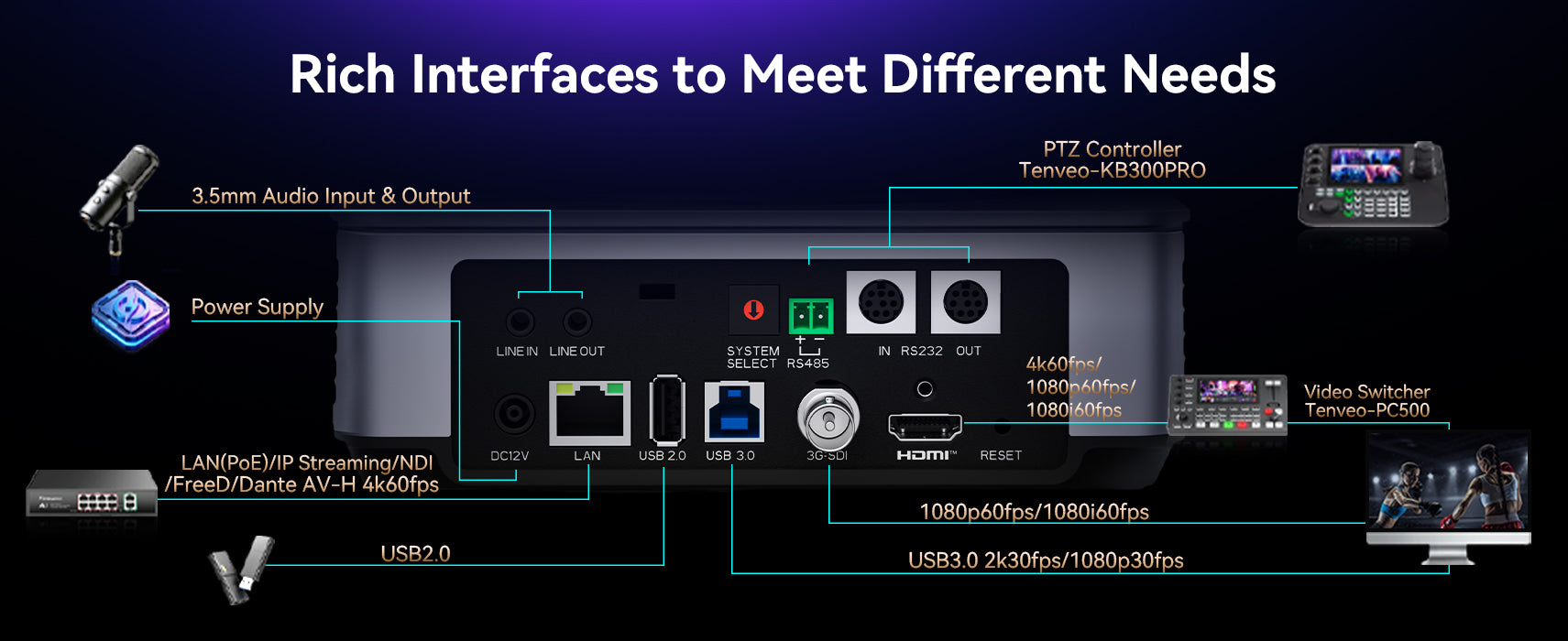

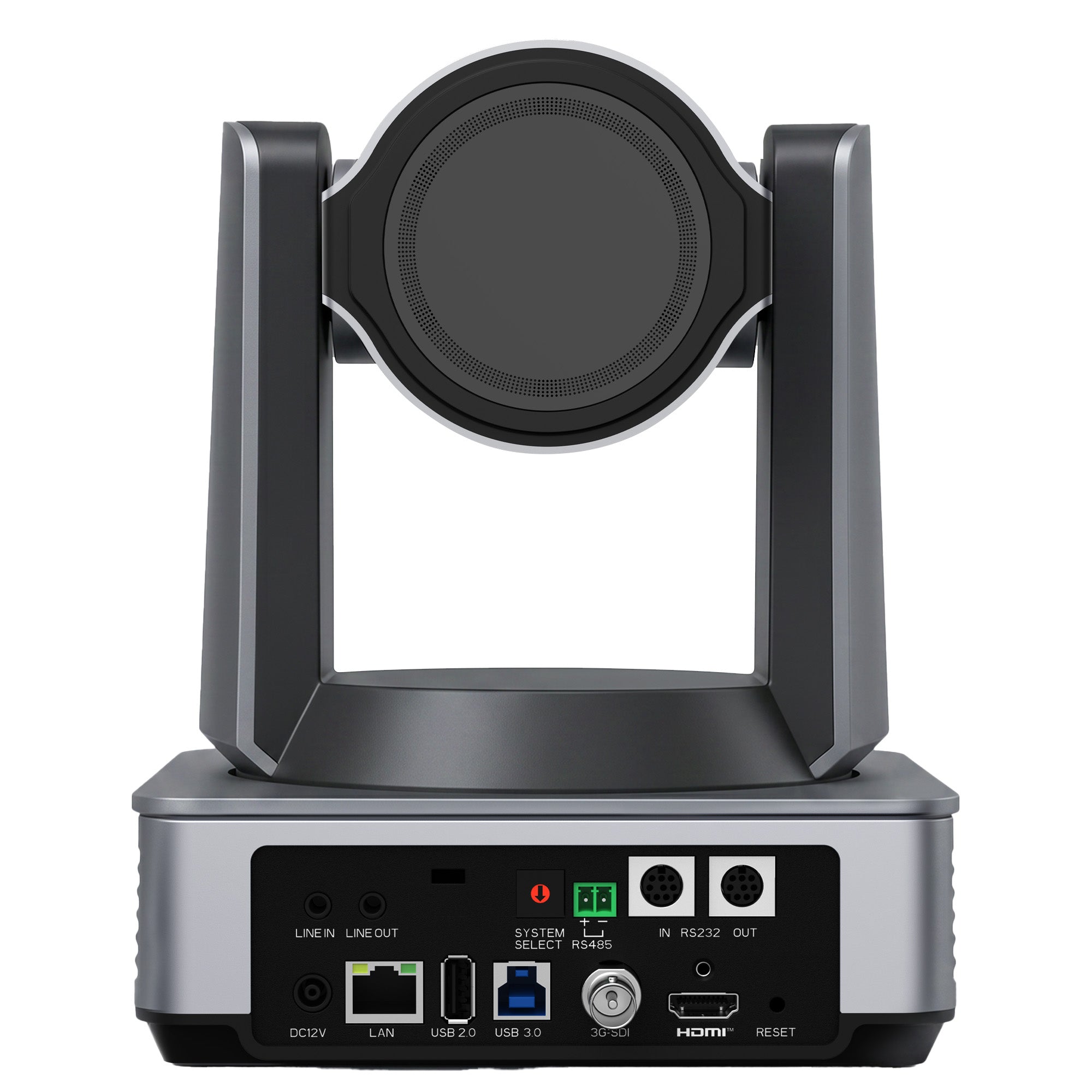

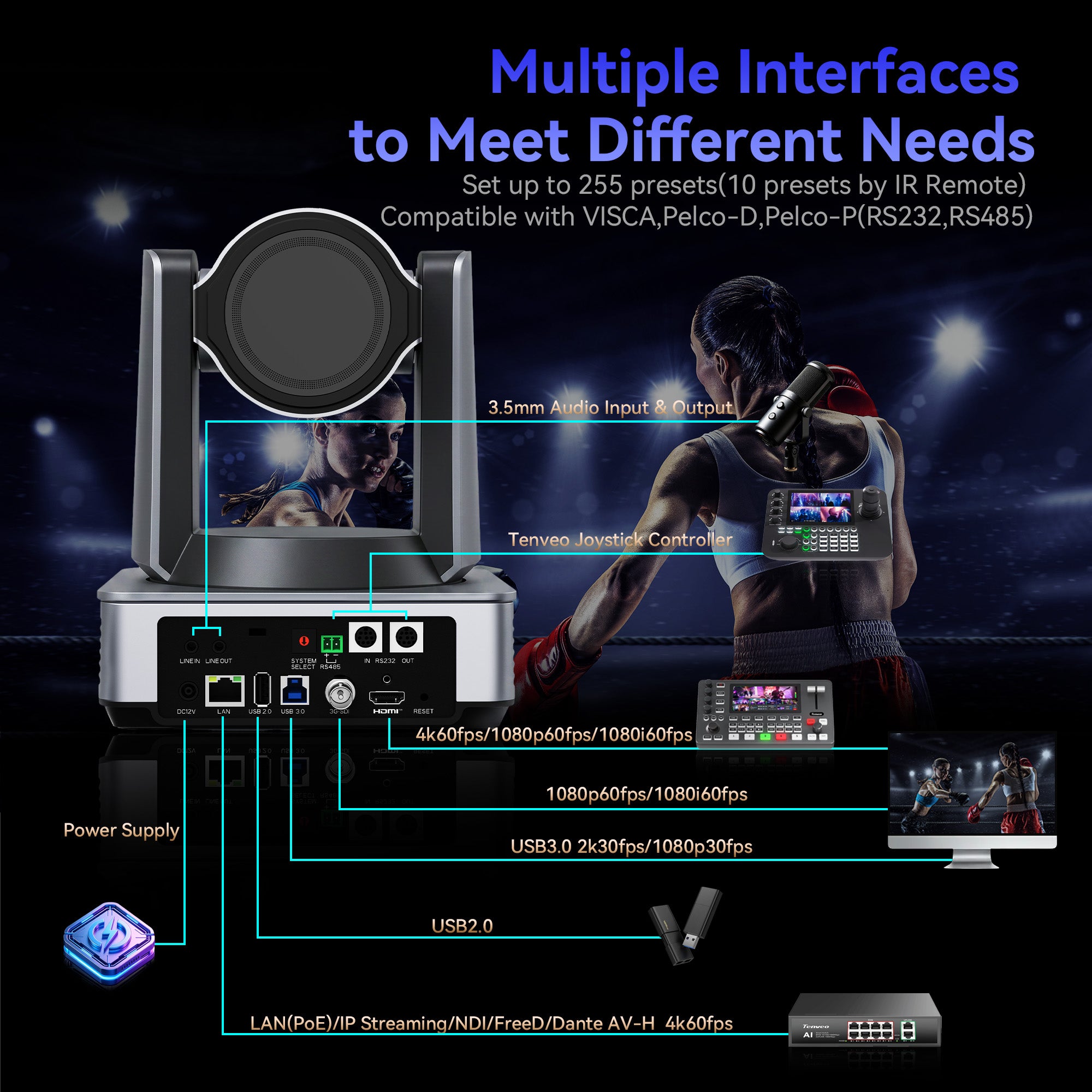

| HD Output | 1*HDMI, 1*SDI, 1*USB 3.0 |
| Network interface | 1*RJ45(Supports PoE) |
| USB Interface | 1*USB3.0, Type-B Port |
| Audio interface | 1* Line In, 3.5mm Audio Jack 1* Line Out, 3.5mm Audio Jack |
| Communication interface2 | 1*RS232 In: 8-pin mini-DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P Protocol 1*RS232 Out: 8-pin mini-DIN, Max Distance: 30m, VISCA Protocol 1* RS485: 2-pin Phoenix Terminal, Max Distance: 1200m, VISCA/Pelco-D/Pelco-P Protocol |
| SD Card | No |
| Restore button | Yes |
| Power interface | JEITA Type (DC IN 12V) |
| Built-in Mic | |
| Voice pickup range | |
| Built-in Speaker | |
| Input voltage | DC12V |
| Input current | 2A |
| Operating temperature | 0°C~40°C |
| Operating humidity | 20%~80%RH |
| Power consumption | 24W(Max.) |
| Package includes | |
| Dimension (Before/After Package) | |
| Net/Gross Weight | 2.4kg/3.8kg |
