Tenveo KB500 NDI PTZ Joystick Controller, 7" Quad-View Touchscreen, 4D Joystick, 4K60 Preview, Camera Group Control, HDMI, Tally, NDI|HX3, VISCA, ONVIF & Pelco

$521.55

$521.55 $549.00

Tenveo KB500 NDI PTZ Joystick Controller, 7" Quad-View Touchscreen, 4D Joystick, 4K60 Preview, Camera Group Control, HDMI, Tally, NDI|HX3, VISCA, ONVIF & Pelco

Name: Tenveo KB500 NDI PTZ Joystick Controller, 7" Quad-View Touchscreen, 4D Joystick, 4K60 Preview, Camera Group Control, HDMI, Tally, NDI|HX3, VISCA, ONVIF & Pelco
Brand: Tenveo
SKU: TEVO-KB500
Price: 521.55 USD
Availability: InStock

$521.55

$521.55 $549.00

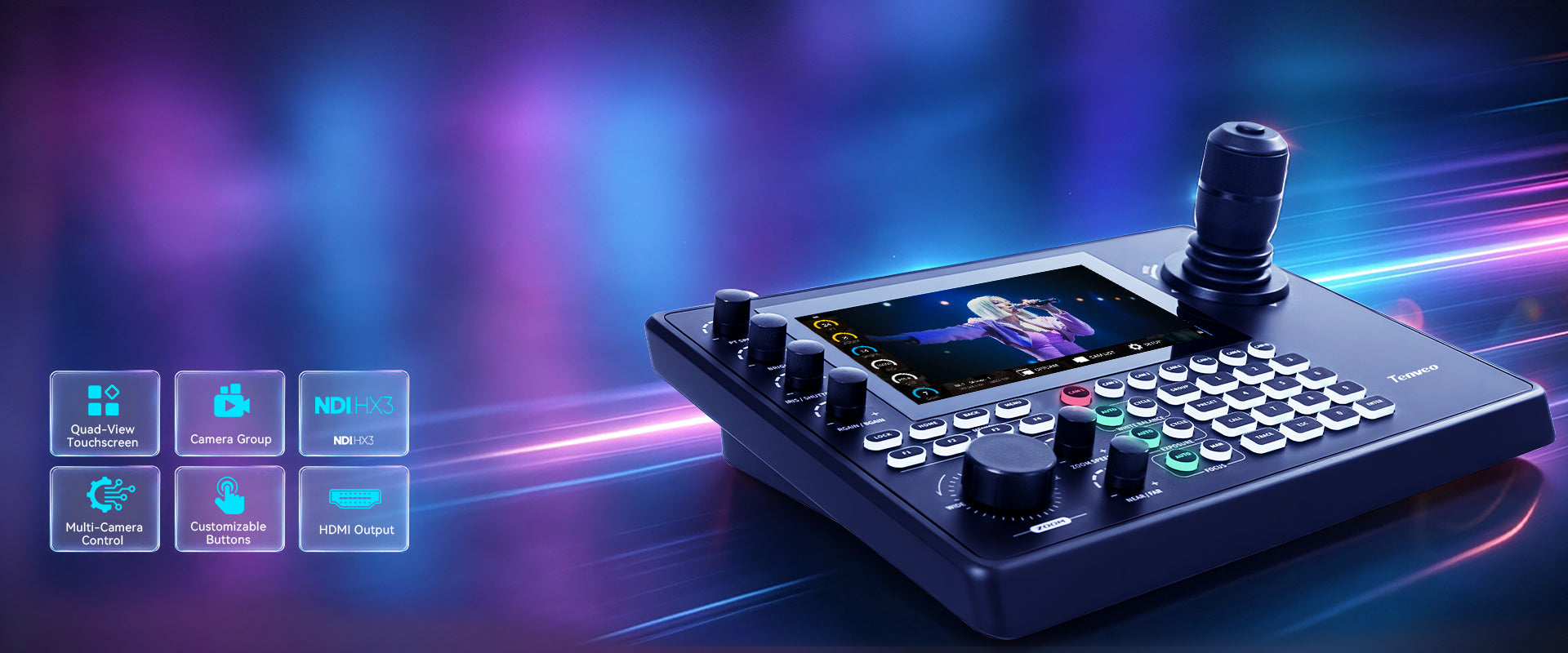

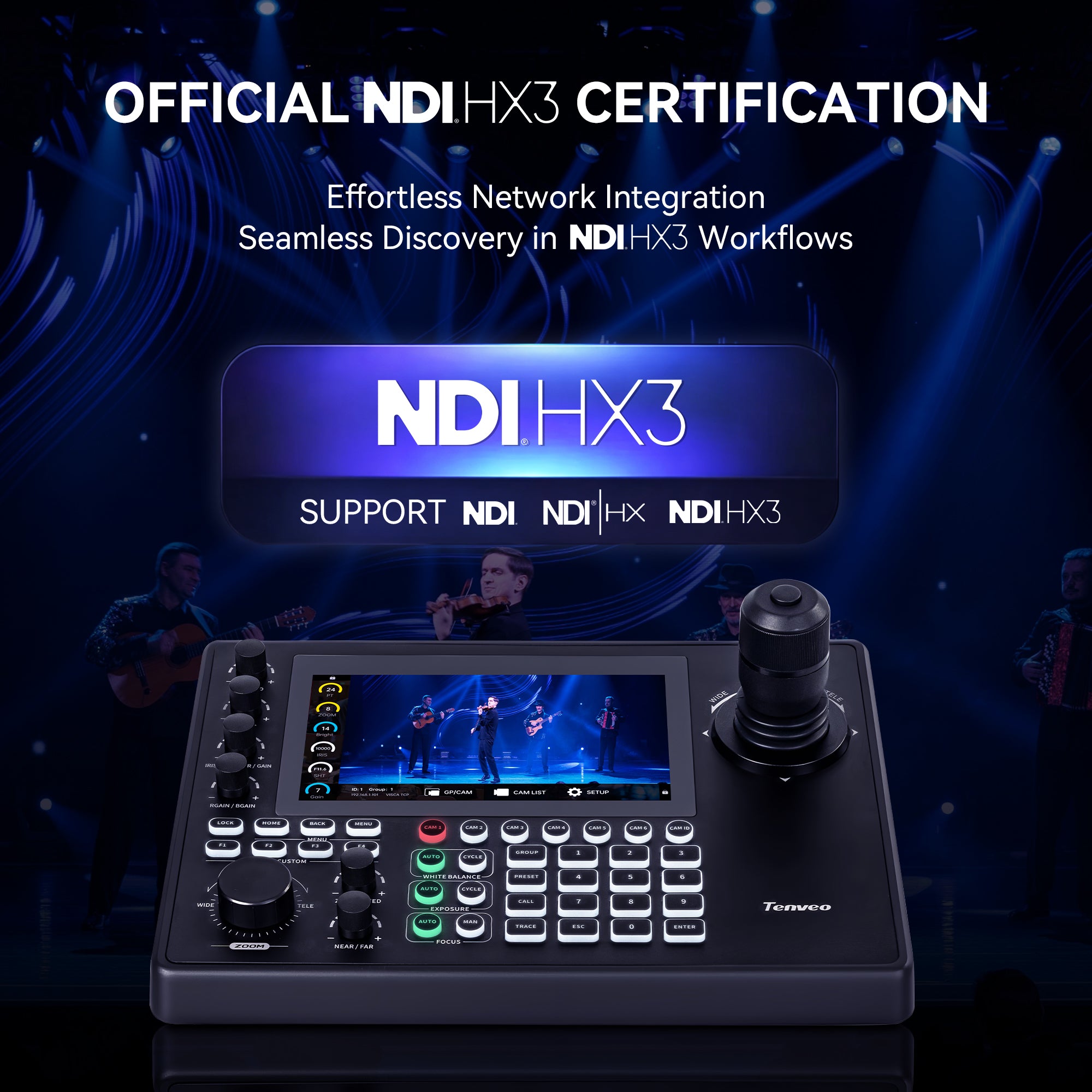

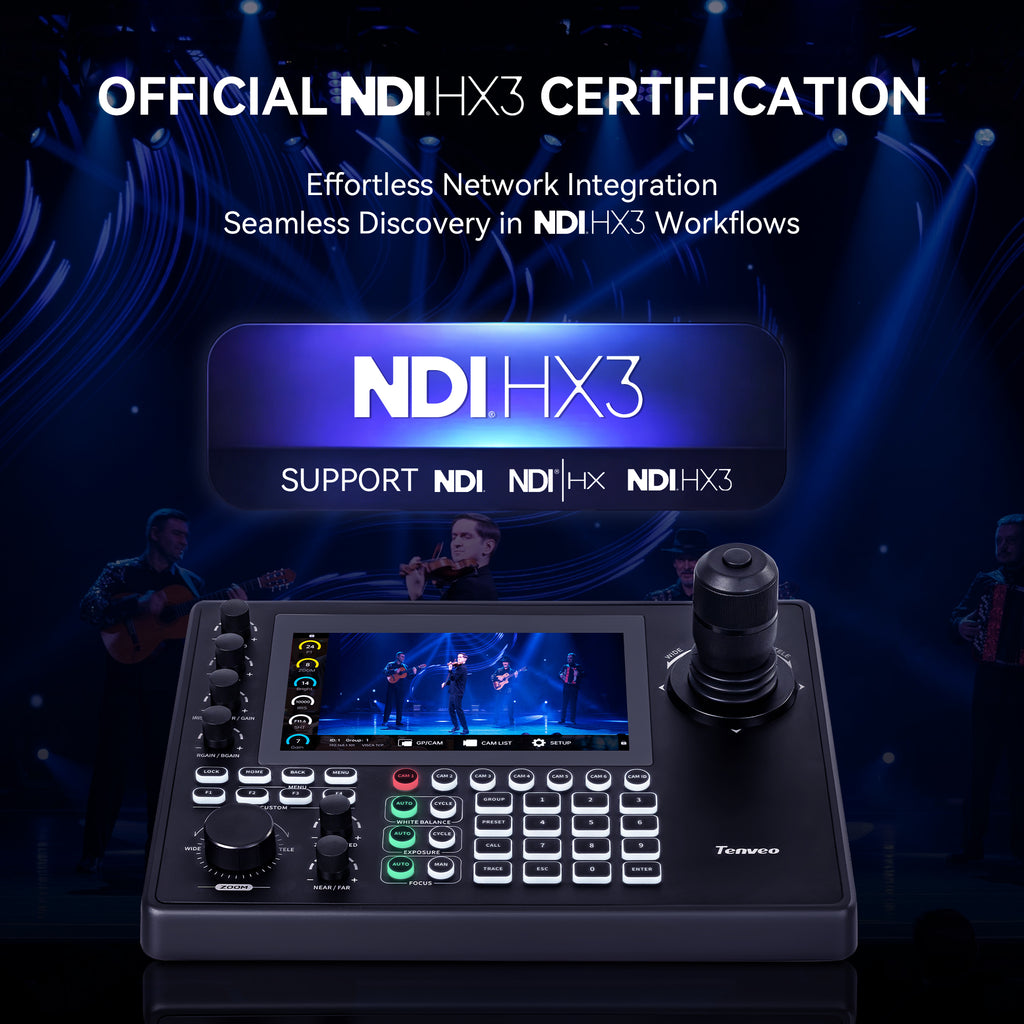

1. NDI|HX3 Certified Professional PTZ Controller

Take full control of your PTZ cameras with the KB500. NDI|HX3 certified and compatible with NDI, VISCA, ONVIF, and Pelco-D/P, it integrates seamlessly into professional IP video workflows for live streaming, broadcasting, worship, education, and video production.

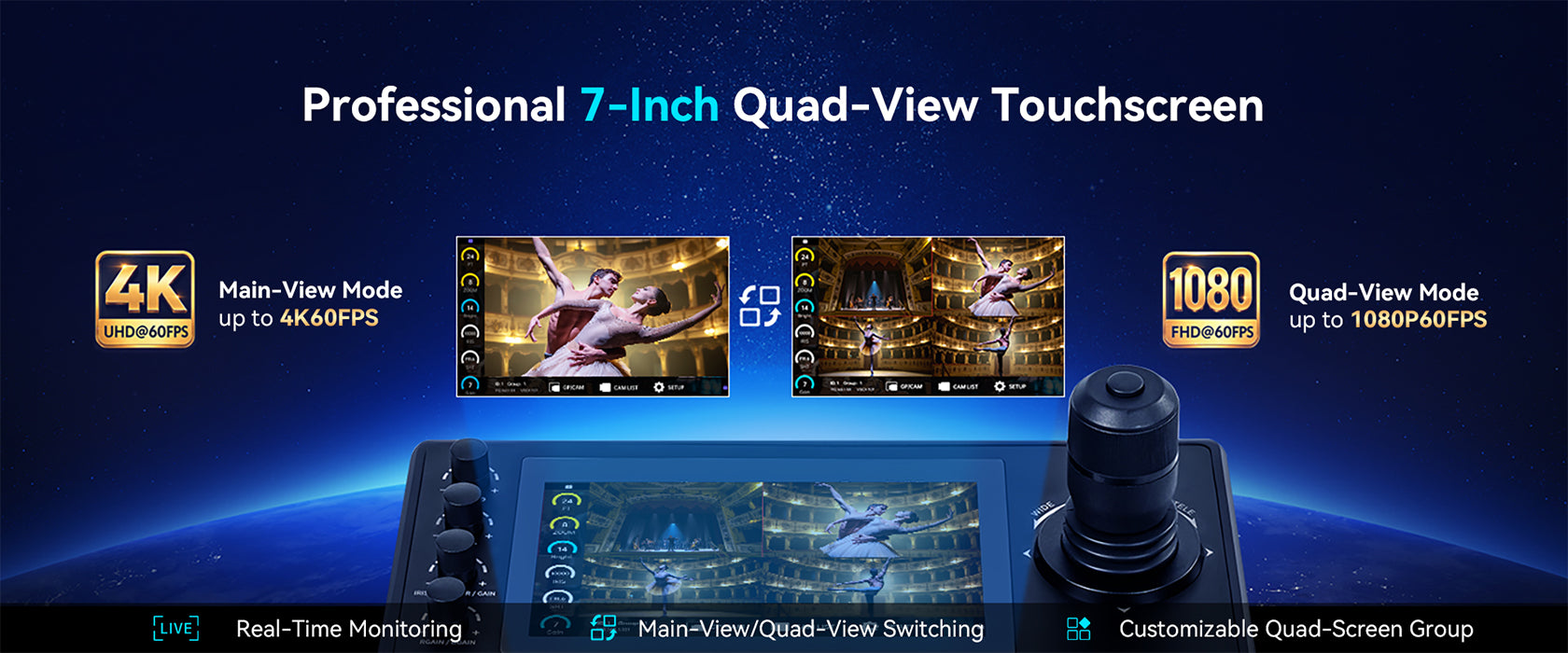

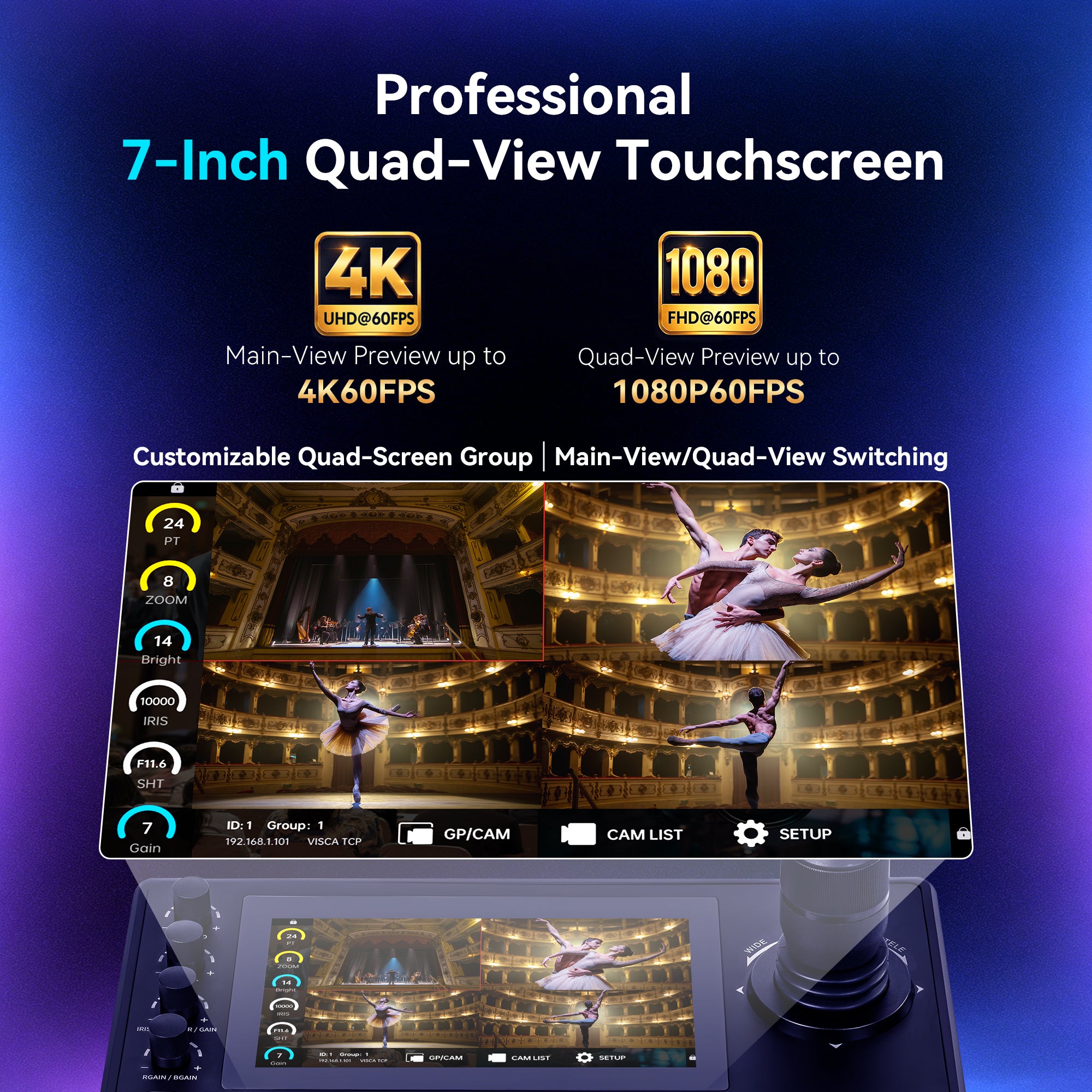

2. 7" Quad-View Touchscreen with 4K60 Preview

Monitor up to 4 camera feeds simultaneously on the 7" LCD touchscreen, with Quad-View preview up to 1080P60 and Main-View preview up to 4K60. Easily select cameras and monitor your shots in real time from one intuitive interface.

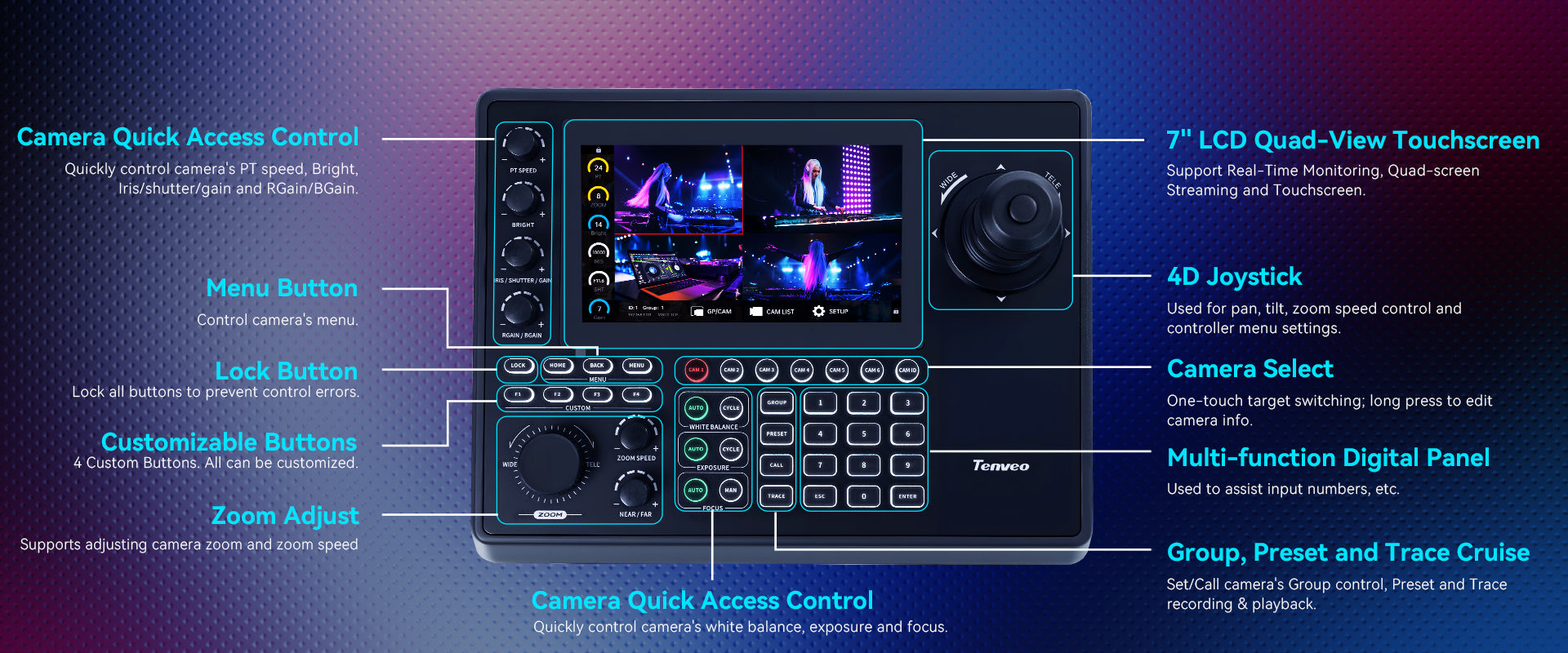

3. 4D Joystick & Multi-Camera Control

Enjoy smooth, precise pan, tilt, zoom, and focus control with the variable-speed 4D joystick. Quickly access up to 6 cameras and control up to 255 IP cameras, with up to 255 presets and trace recording for consistent, professional shots.

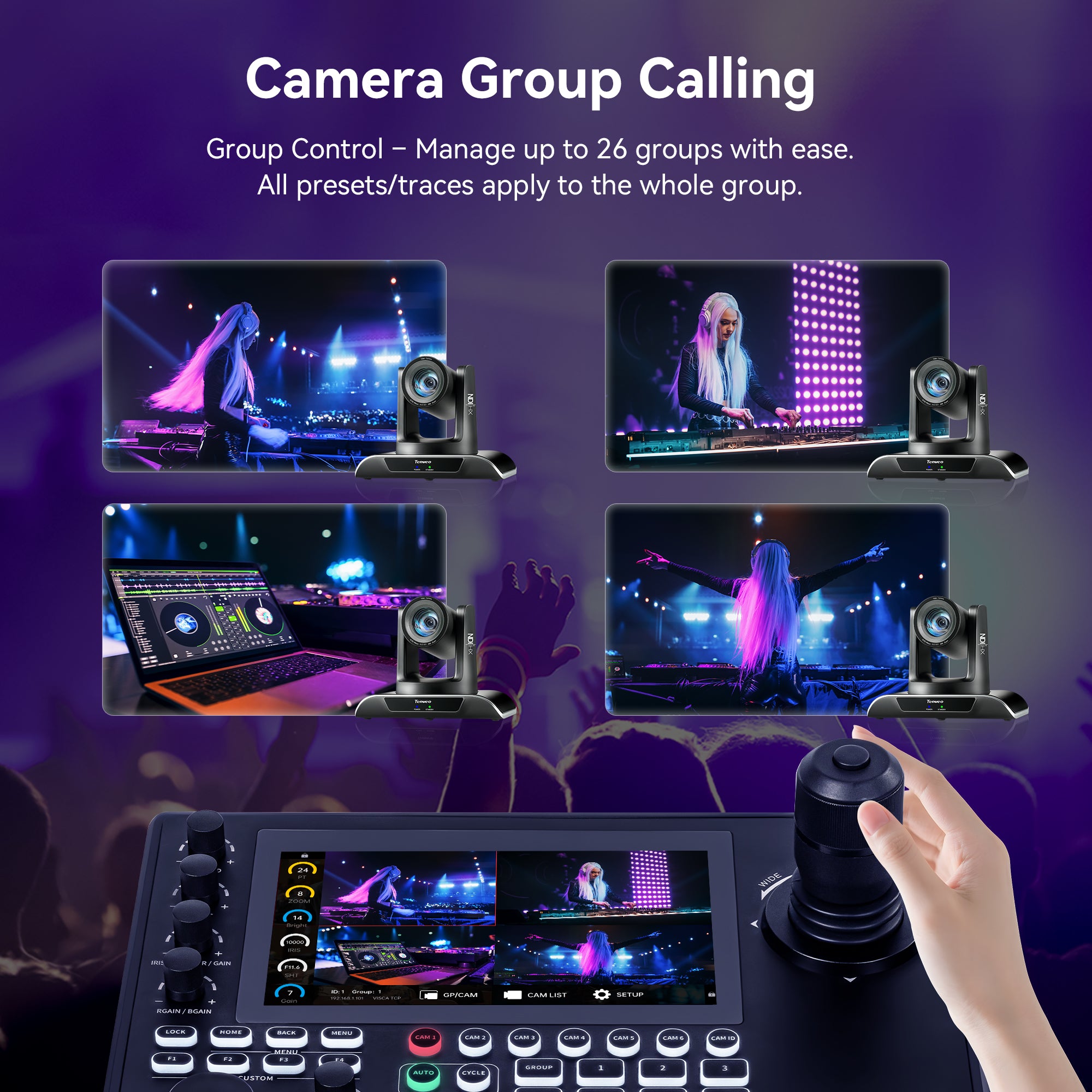

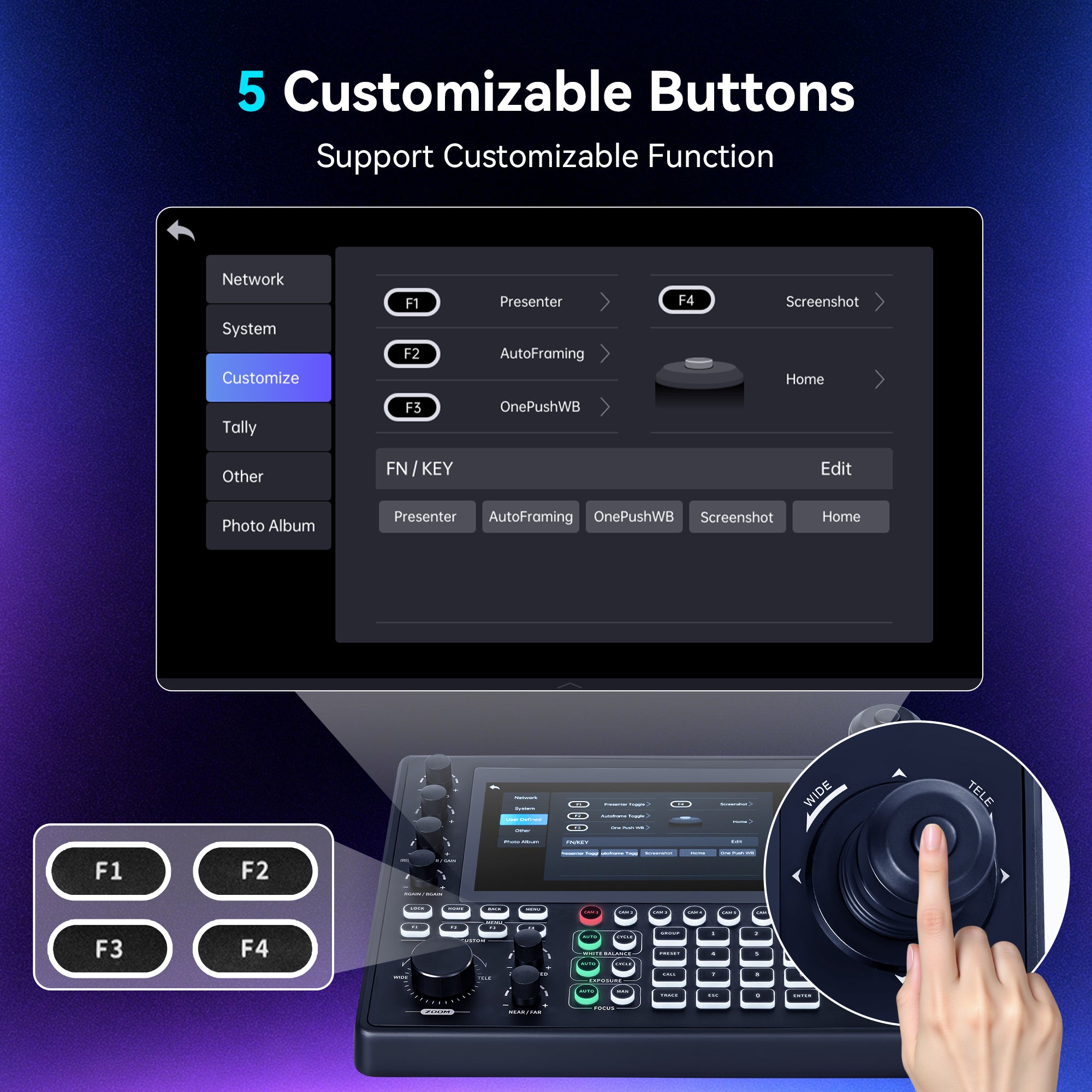

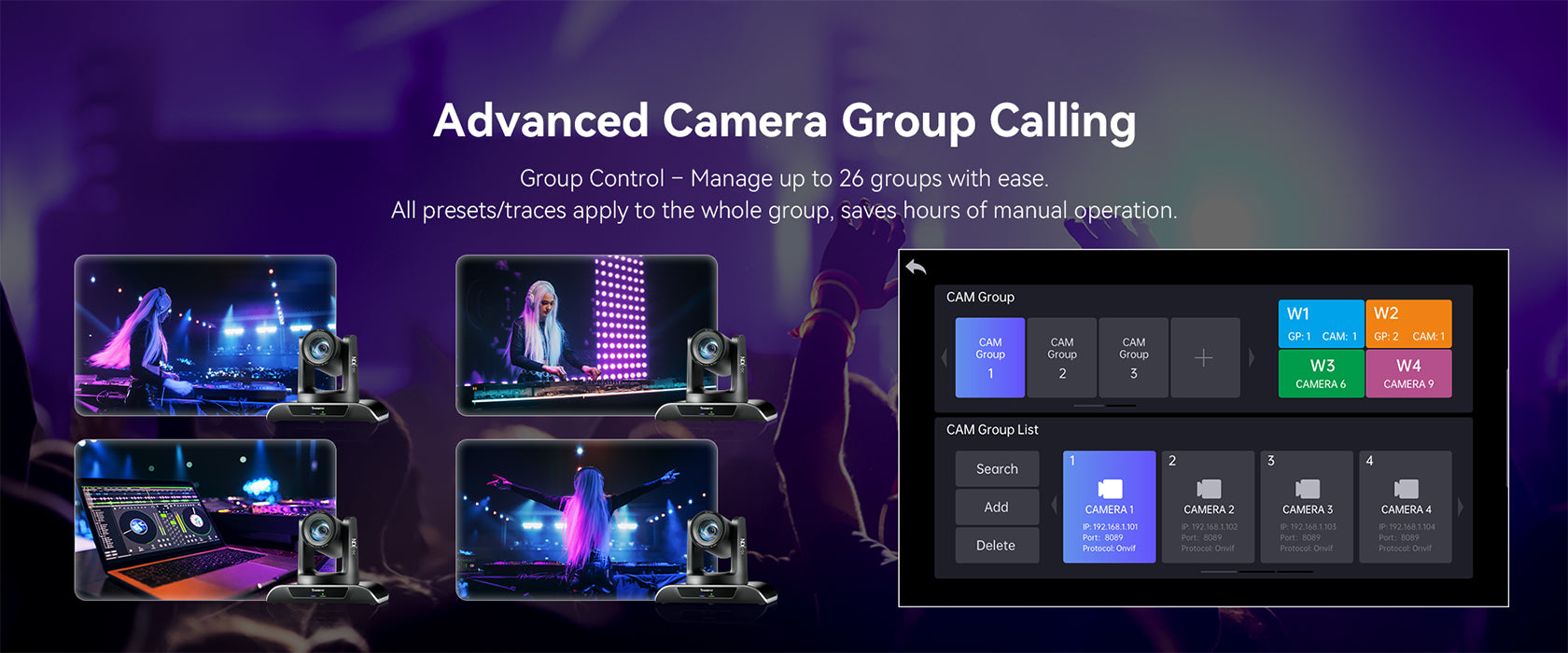

4. Camera Group Calling & Custom Buttons

Organize up to 255 cameras into 26 groups, with up to 10 cameras per group for fast multi-camera control. Five customizable buttons provide instant access to frequently used functions such as presets, AI tracking, camera switching, screenshots, and more.

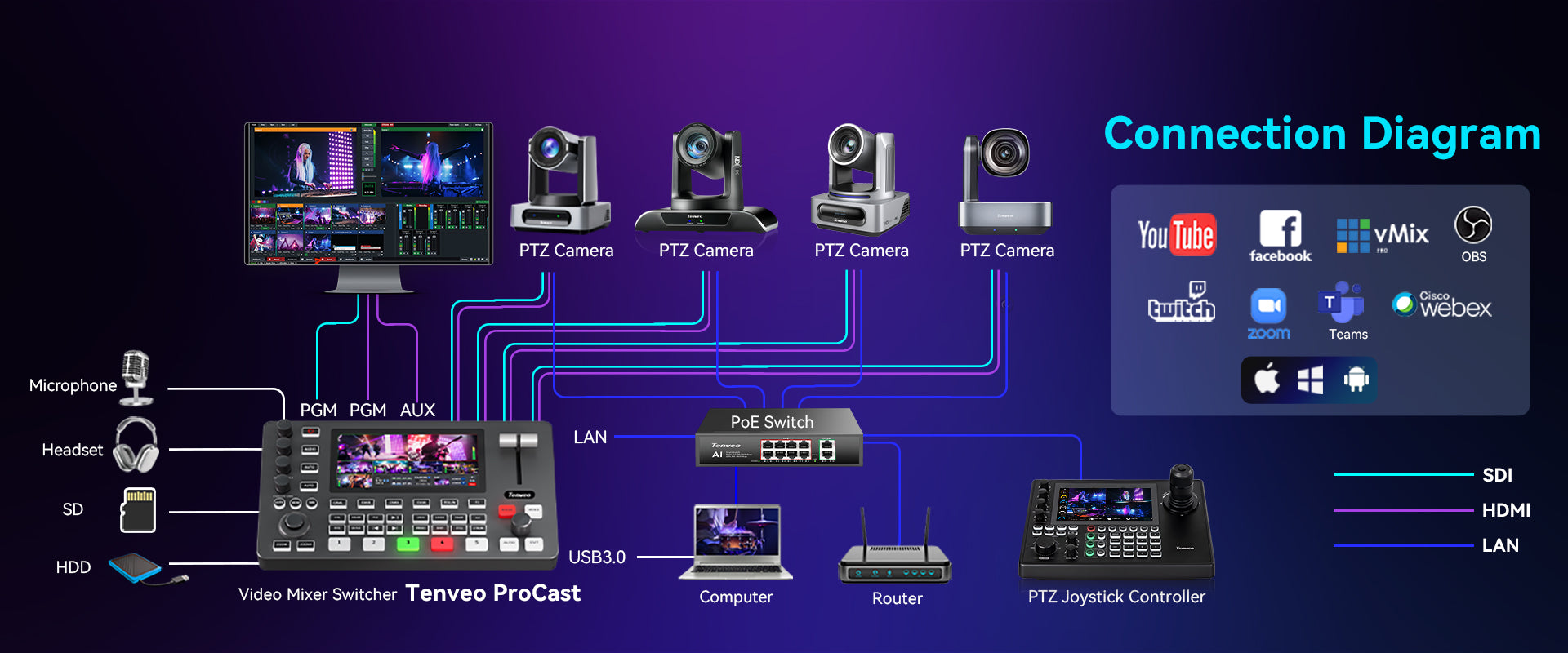

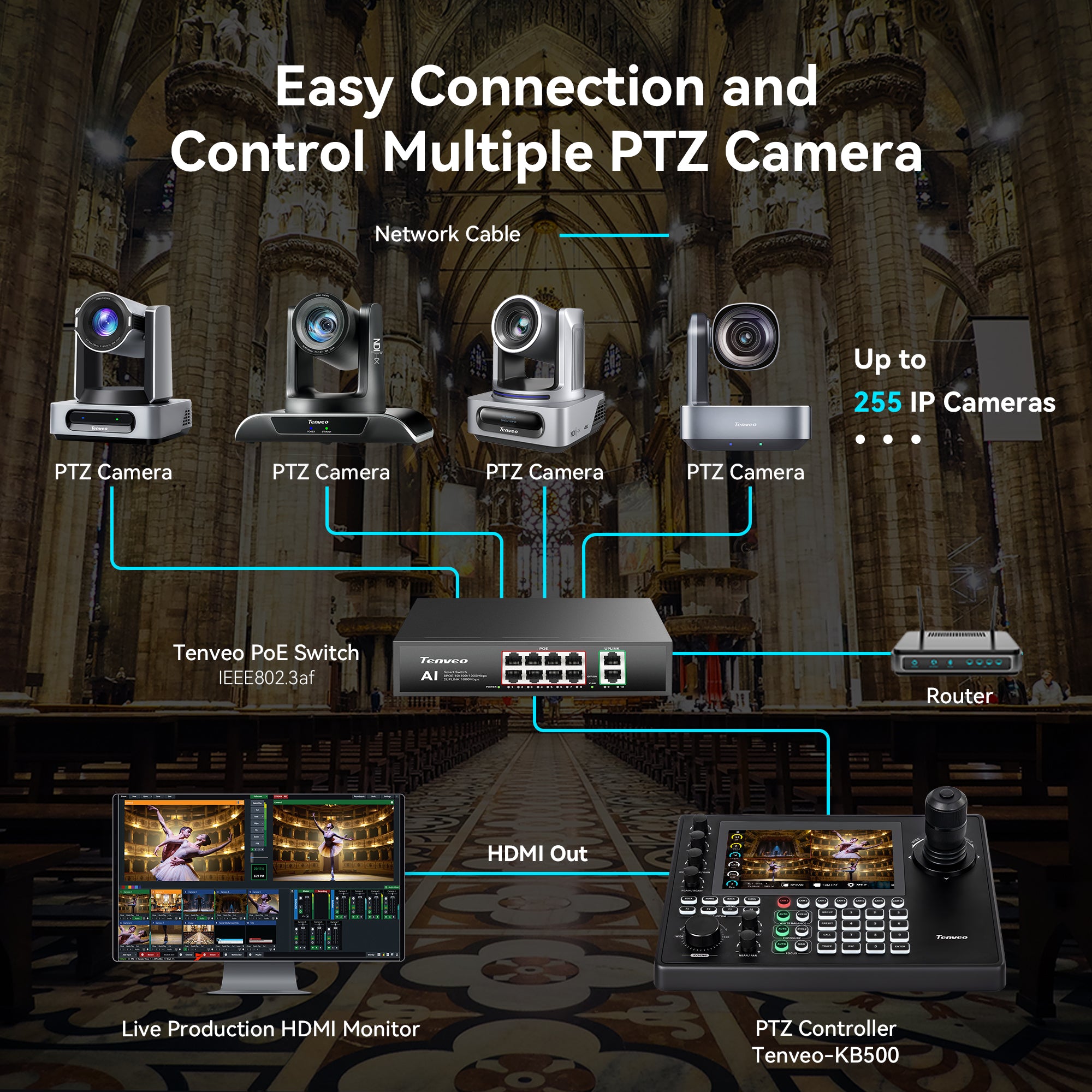

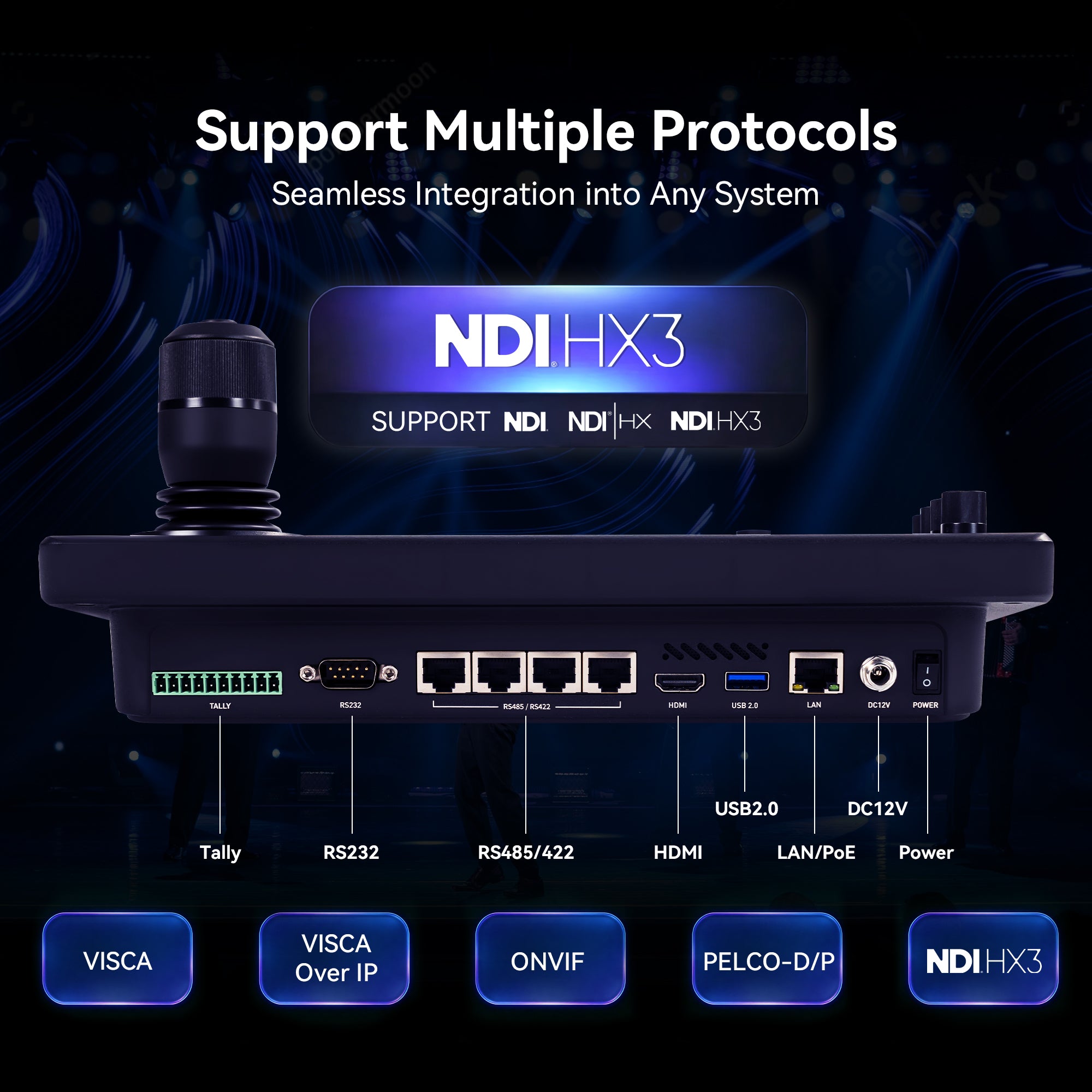

5. Flexible Connectivity for Professional Production

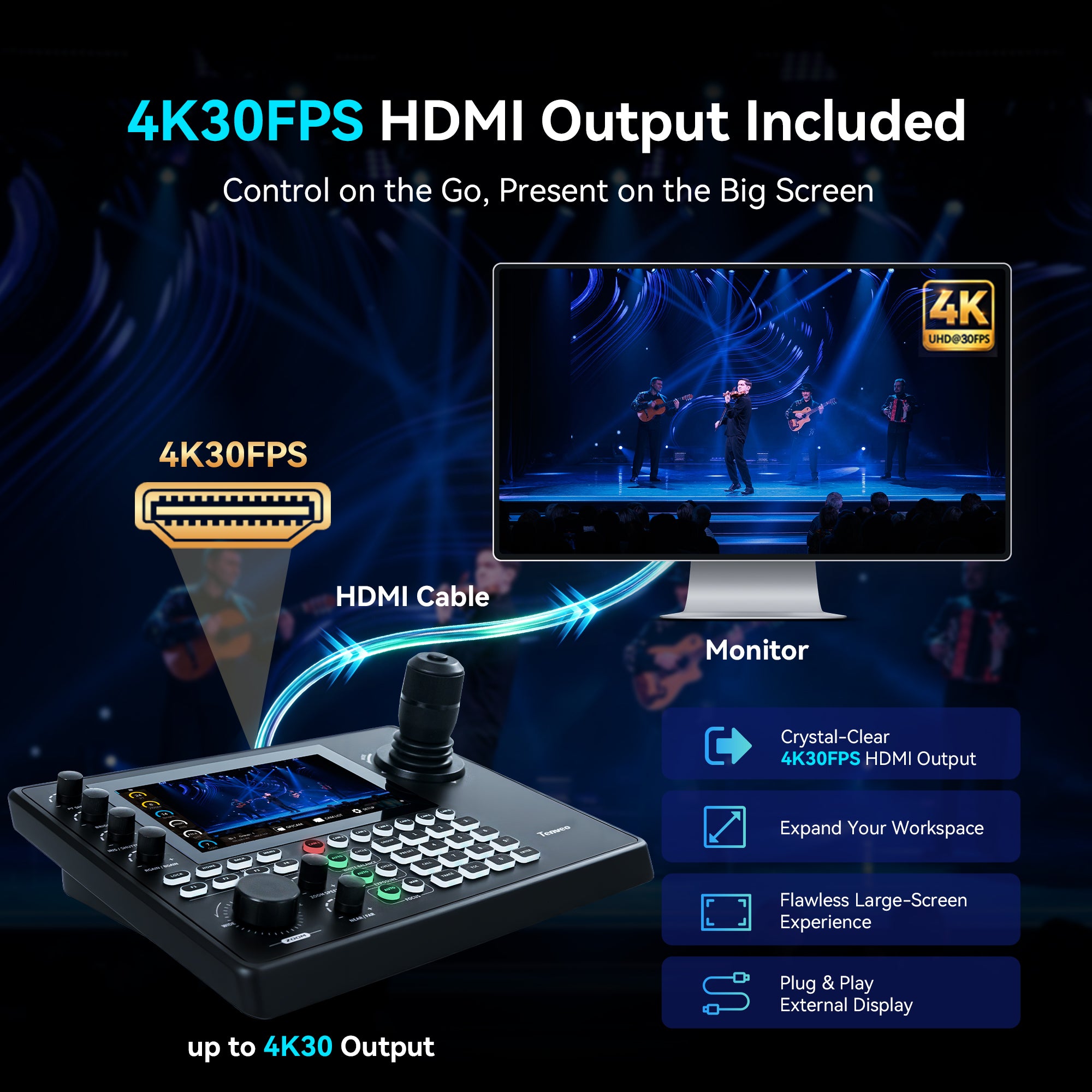

Supports NDI|HX3, VISCA, VISCA over IP, ONVIF, Pelco-D/P, PoE/PoE+, RS232, RS422, RS485, and Gigabit Ethernet. HDMI 2.0 output supports up to 4K30 video, while Tally and USB 2.0 provide convenient integration, configuration, and firmware updates.

The Tenveo Advantage

Fast & Free Shipping

3-Year Product Warranty

30-Day Returns

Lifetime Customer Support

Pay with Ease

Tenveo KB500 NDI PTZ Joystick Controller, 7" Quad-View Touchscreen, 4D Joystick, 4K60 Preview, Camera Group Control, HDMI, Tally, NDI|HX3, VISCA, ONVIF & Pelco

$521.55

$521.55 $549.00

Instructions

We want you to be fully satisfied with your purchase.
Return Period: You may request a return within 30 days of receiving the product
Eligibility: ltems must be unused, in original packaging, and in resellable condition
Refunds: Once the returned item is received and inspected, refunds will be processed to your original payment method
Derective ltems: if your product arrves damaged or derective, please contact us immediately for replacement or refund support
To initiate a return, please contact our support team with your order details. Our team wil guide you through the process step by step.
We provide global shipping to most countries and regions
Processing Time: Orders are typically processed within 1-2 business days
Shipping Time: Delivery usually takes 5-10 business days depending on destination
Shipping Methods: Standard international express shipping is used for all orders
Shippina Fee, Shippina costs are calculated at checkout or mav be waived for selected redions or bulk orders
Once your order is shipped, you will receive a tracking number via email to monitor your delivery status in real time.
The packing list includes: PTZ Joystick Controller, Power Adapter 12V 2A, and User Manual.

User Scenarios

Large-Scale Conferences

Product Launches

Live Events

House of Worship

Product Specification

Chip	RK3568
Support operating system	Linux
Max equipment	256
Decoding	H.265, H.264
Resolution	Max to 4×1080P60 or 1×4K60(in H.265)
Protocol	NDI, VISCA over IP, ONVIF,VISCA, PELCO-D/P
Camera control	Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES

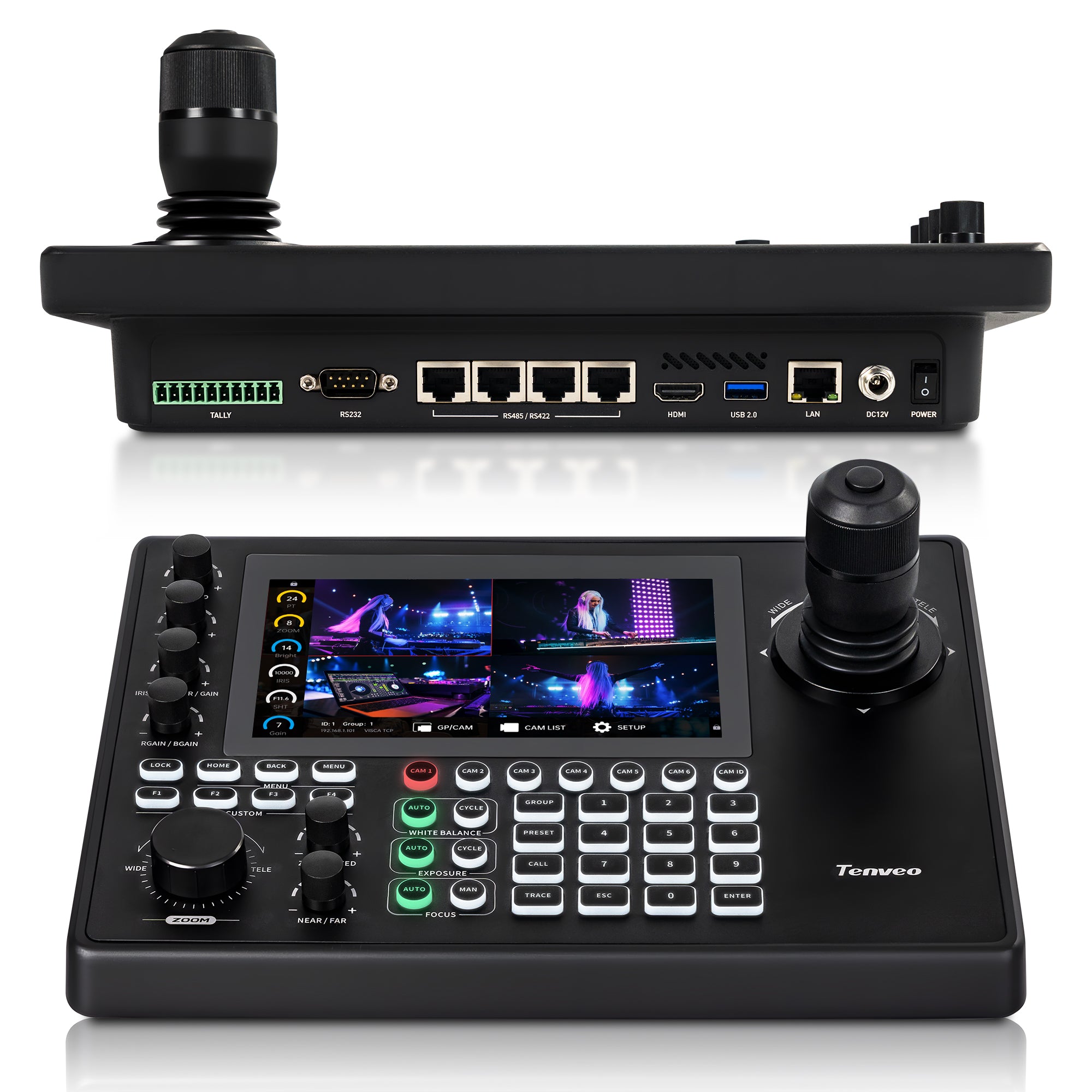

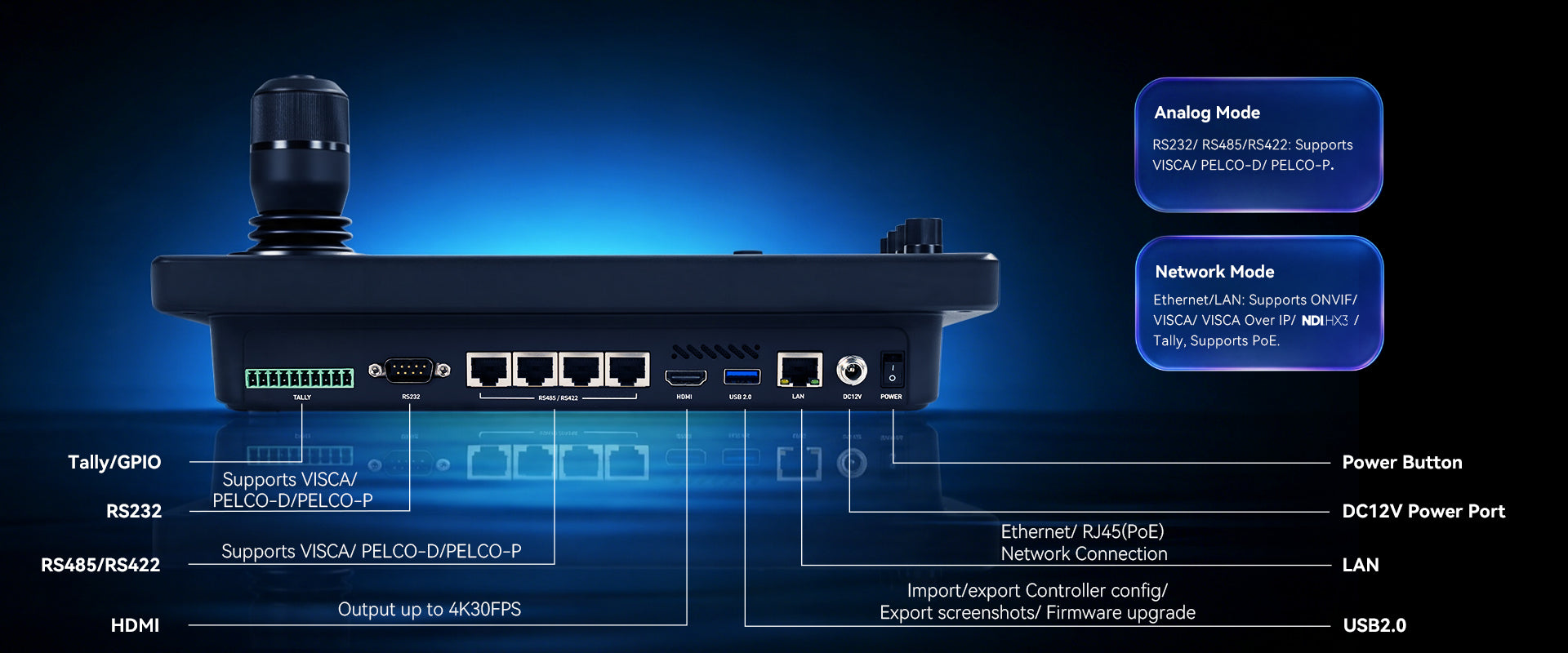

User interfaces	Network Standard:RJ45 ×1, 1000Mbps, PoE/PoE+ (IEEE 802.3af/at). Supports NDI, VISCA over IP, and ONVIF protocols USB Port: USB 2.0 Type-A (configuration import/export, screenshots, firmware update) Tally: 10‑pin Phoenix terminal block for external Tally connection or GPIO use HDMI 2.0: HDMI 2.0 output for external monitor connection. Supports up to 4K@30fps video output (no audio) RS422/485: RJ45 ×4, supports PELCO-D, PELCO-P, and VISCA protocols RS232: DB9 ×1, supports PELCO-D, PELCO-P, and VISCA protocols
Four-split display	Support
Joystick	4D
Output	HDMI 2.0 (up to 4K@30fps, video only, not audio); RS422(Reserved), RS232(Development port), RJ45
Accessories	Knob, Silicone button
Beep	On/off
Display	7‑inch LCD touchscreen, 1024×600 resolution. Supports full‑screen or quad-view display modes
Max camera control	Up to 255 IP cameras; Camera Groups Up to 26 groups, 10 cameras per group; Trace Up to 10 traces can be saved
Split screen display	Supports full‑screen or quad-view display modes
Power consumption	< 10W
Power	DC 12V / 2A (locking connector) or PoE+ (802.3af/at)
Work temperature	-10°C ~ 50°C
Work humidity
Storage temperature	-10°C ~ 50°C
Storage humidity	10% ~ 90% RH (non-condensing)
Dimension(Beofore/After Package)	355 × 265 × 170 mm
Net/Gross Weight	Approx. 2.02 kg
