1. Complete 3-Camera PTZ Broadcasting System

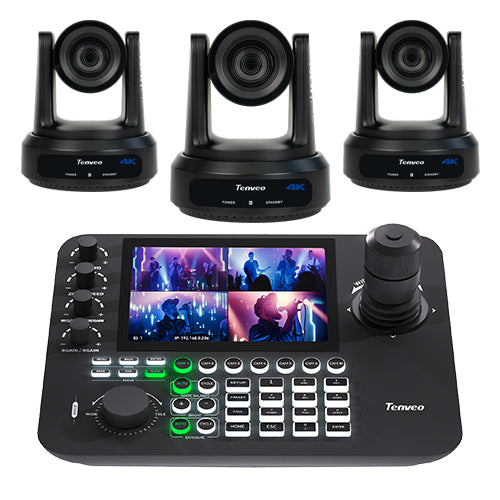

Three 4K@60FPS PTZ cameras and a professional KB300PRO joystick controller deliver a complete multi-camera solution for live events, studios, and corporate productions
2. True 4K 60FPS Ultra HD Video
Powered by a high-performance 4K AI processor and a 1/1.8" 8.42MP CMOS sensor, delivering up to 3840 × 2160 at 60fps. Capture smooth, detailed video for conferences, education, broadcasts, and live events.
3. AI Auto-Tracking & Auto-Framing
Advanced AI technology supports Presenter Tracking, Zone Tracking, and Auto-Framing. Automatically follow the subject and keep them properly framed for hands-free video production.
4. 20X Optical Zoom for Exceptional Detail
Features 20X optical zoom and 16X digital zoom with a wide 66° field of view. Combined with 3D noise reduction and strong low-light performance, it delivers clear and detailed images even in challenging lighting environments.
5. 7" LCD Quad-Screen Real-Time Preview
Monitor up to 4 PTZ camera feeds simultaneously with the built-in 7-inch LCD multi-view display. Instantly switch between quad-screen and single-camera preview for accurate shot adjustment and seamless live production. Ideal for worship, live events, sports broadcasting, and multi-camera streaming environments.
The Tenveo Advantage
Fast & Free Shipping
3-Year Product Warranty
30-Day Returns
Lifetime Customer Support
Pay with Ease
Tenveo All-in-One UHD 4K SDI/HDMI/IP/NDI PTZ 3-Camera Kit with Joystick Controller
$3,399.00
Sale price
$3,399.00
Regular price
Pickup currently not available
User Scenarios
Product Specification
| Image sensor | 1/1.8" IMX678 |
|---|---|
| Effective pixels | 8.42MP |
| Video signals | HDMI: 4KP60fps, 4KP59.94fps, 4KP50fps, 4KP30fps, 4KP25fps, 4KP29.97fps, 1080P60fps, 1080P50fps, 1080I60fps, 1080I50fps, 1080P30fps, 1080P59.94fps, 1080I59.94fps, 1080P29.97fps, 720P60fps, 720P59.94fps; 3G-SDI: 1080P60fps, 1080P50fps, 1080P30fps, 1080P29.97fps, 1080P59.94fps, 1080P25fps; 1080I60fps, 1080I50fps, 1080I59.94fps; 720P60fps, 720P59.94fps; USB2.0: H.264: max to 2160P@30fps H.265: max to 2160P@30fps MJPEG: max to 2160P@30fps YUY2: max to 1080P@5fps |
| Lens & Aperture | F1.58~F3.95 |
| Digital zoom | 16x |
| Zoom speed | 1~8 |
| Focal length | f=6.25mm~125mm |
| Horizontal angel | 59.6°~3.5° |
| Vertical angel | 35.7°~2.0° |
| Diagonal angle | 66.6°~4.0° |
| AI Support | Yes |
| AI Mode | Single Person Tracking/Multiple Person Tracking/Area Tracking |
| Minimum illumination | 0.5 Lux @(F1.8, AGC ON) |
| Shutter | 1/30s~1/10000s |
| White balance | Auto/Manual/Indoor/Outdoor/Specific Color Temperature/One-push |
| Backlight compensation | Yes |
| Digital noice reduction | 3D DNR |
| SNR | ≥55dB |
| Exposure | Auto/Manual/Shutter Priority/Aperture Priority/Brightness Priority |
| Focus | Auto/Manual |
| Video encoding format | H.264/H.265/MJPEG |
| Pan rotation | 350°(±175°) |
| Tilt rotation | 180°(±90°) |
| Auto flip | Yes |
| Image freeze | Yes |
| PoE | Yes |
| Preset positions | Remote: 10; Serial Port: 255 |
| Preset accuracy | 0.1° |
| Preset Call-up Speed | Pan 0.1°/s~100°/s; Tilt 0.1°/s~80°/s |
| Video compression | H.264/H.265/MJPEG |
| Video stream | Primary Stream, Secondary Stream |
| Main stream resolution | 3840*2160, 1920*1080, 1280*720, etc. |
| Sub stream resolution | 720*480, 320*240, etc. |
| Bit rate | 32Kbps~20480Kbps |
| Bit rate type | VBR/CBR |
| Frequency | 50Hz/60Hz |
| Frame rate | 50Hz: 1fps~50fps 60Hz: 1fps~60fps |
| Audio compression | / |
| Audio bit rate | / |
| Network protocal | NDI|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, Support VISCA Over IP, DHCP, GB/T28181, Multicast, etc. |
| Support operating system | Windows/macOS/Android/Linux |
| Color space compression | YUY2/H.264/MJPEG/H.265 |
| Video format | H.264: max to 2160P@30fps H.265: max to 2160P@30fps MJPEG: max to 2160P@30fps YUY2: max to 1080P@5fps |
| Usb video communication protocal | UVC1.1 |
| Uvc ptz control | Yes |

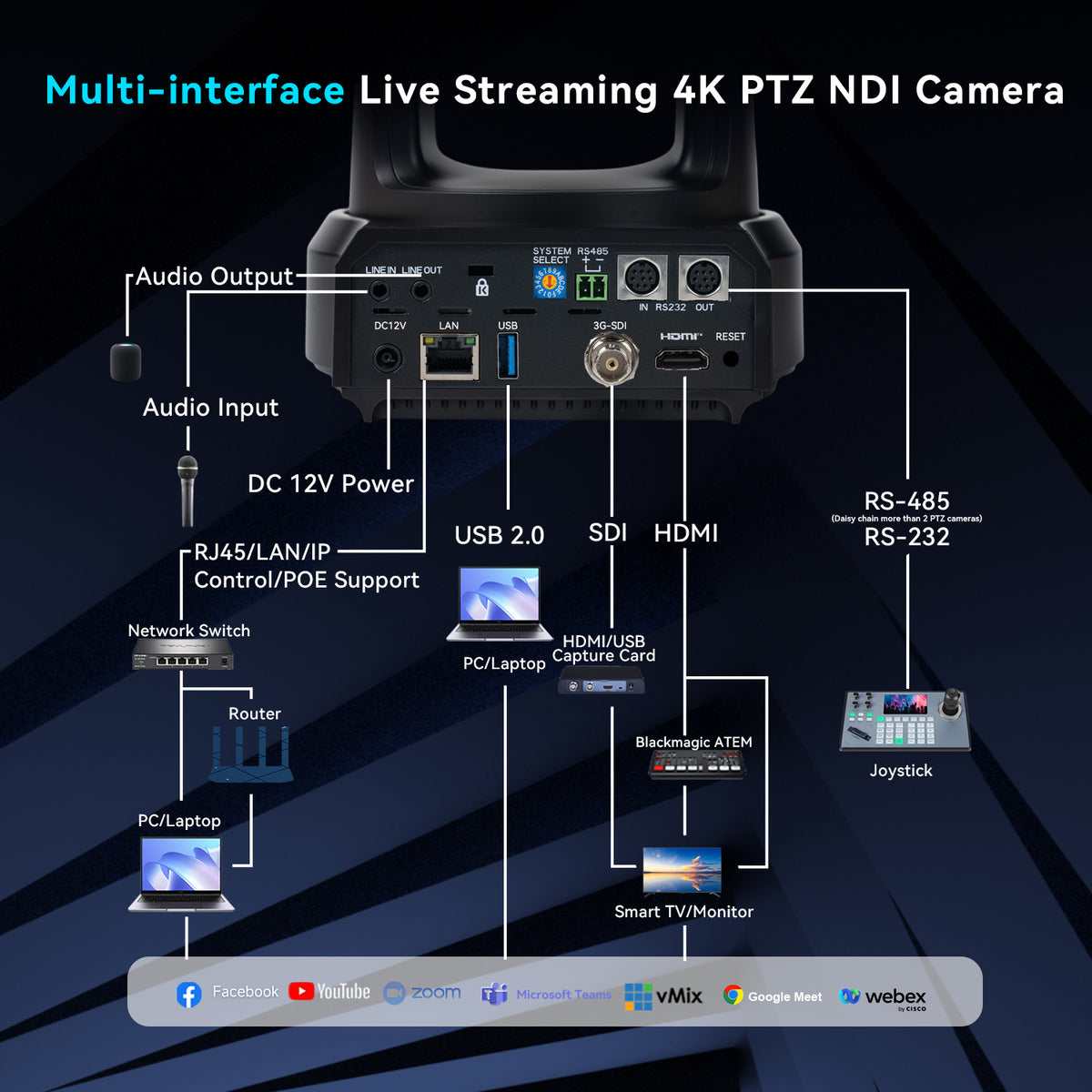

| HD Output | 1*HDMI, 1*SDI, 1*USB 2.0 |
| Network interface | RJ45 |
| USB Interface | 1*USB2.0, Type-A Port |
| Audio interface | / |
| Communication interface2 | 1*RS232 In: 8-pin mini-DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P Protocol 1*RS232 Out: 8-pin mini-DIN, Max Distance: 30m, VISCA Protocol 1*RS485: 2-pin Phoenix Terminal, Max Distance: 1200m, VISCA/Pelco-D/Pelco-P Protocol |
| SD Card | No |
| Restore button | No |
| Power interface | DC12V |
| Built-in Mic | No |
| Voice pickup range | |
| Built-in Speaker | |
| Input voltage | DC12V |
| Input current | 2A |
| Operating temperature | 0°C~40°C |
| Operating humidity | 20%~80% RH |
| Power consumption | 24W(Max.) |
| Package includes | |
| Dimension (Before/After Package) | |
| Net/Gross Weight | 1.51kg/2.6kg |
