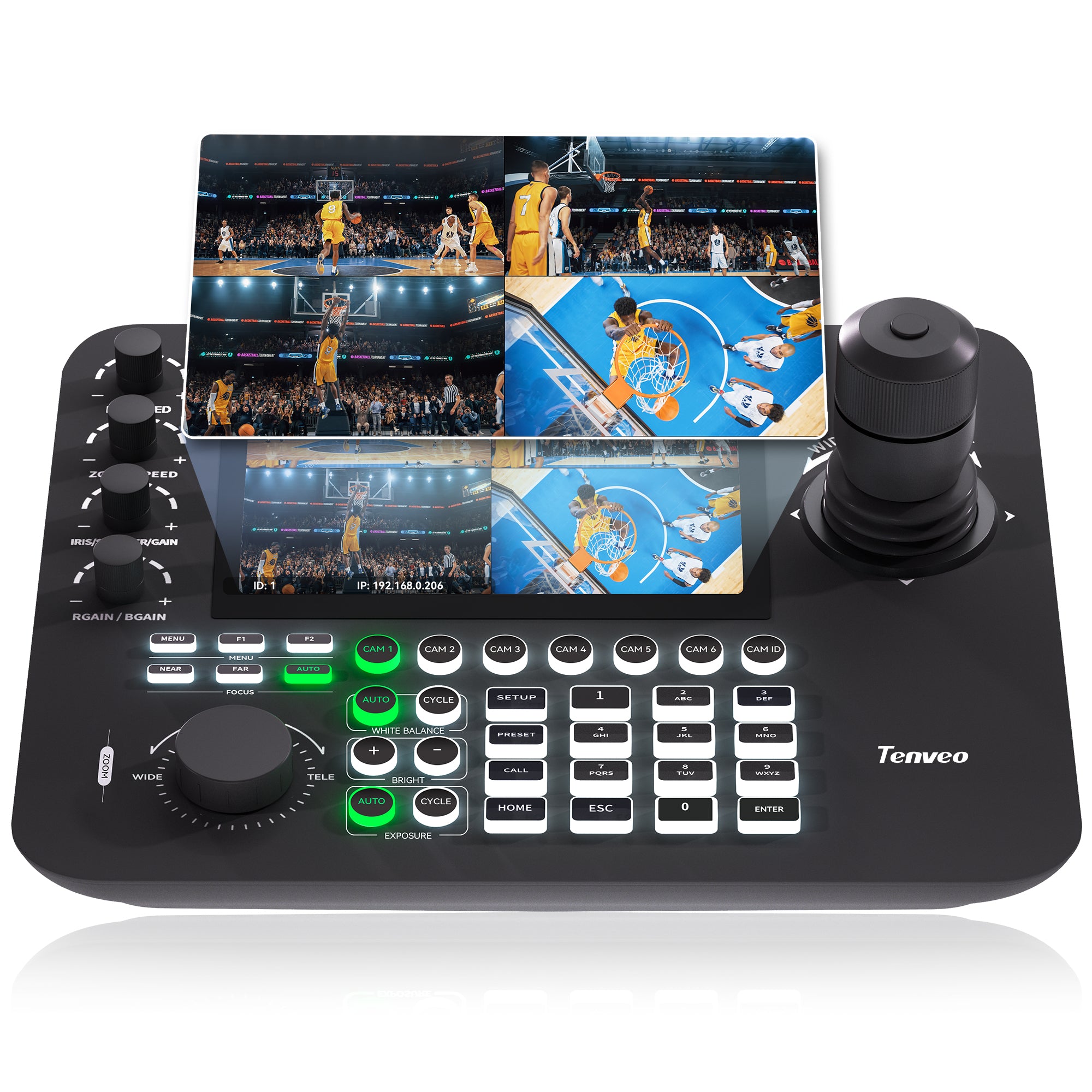

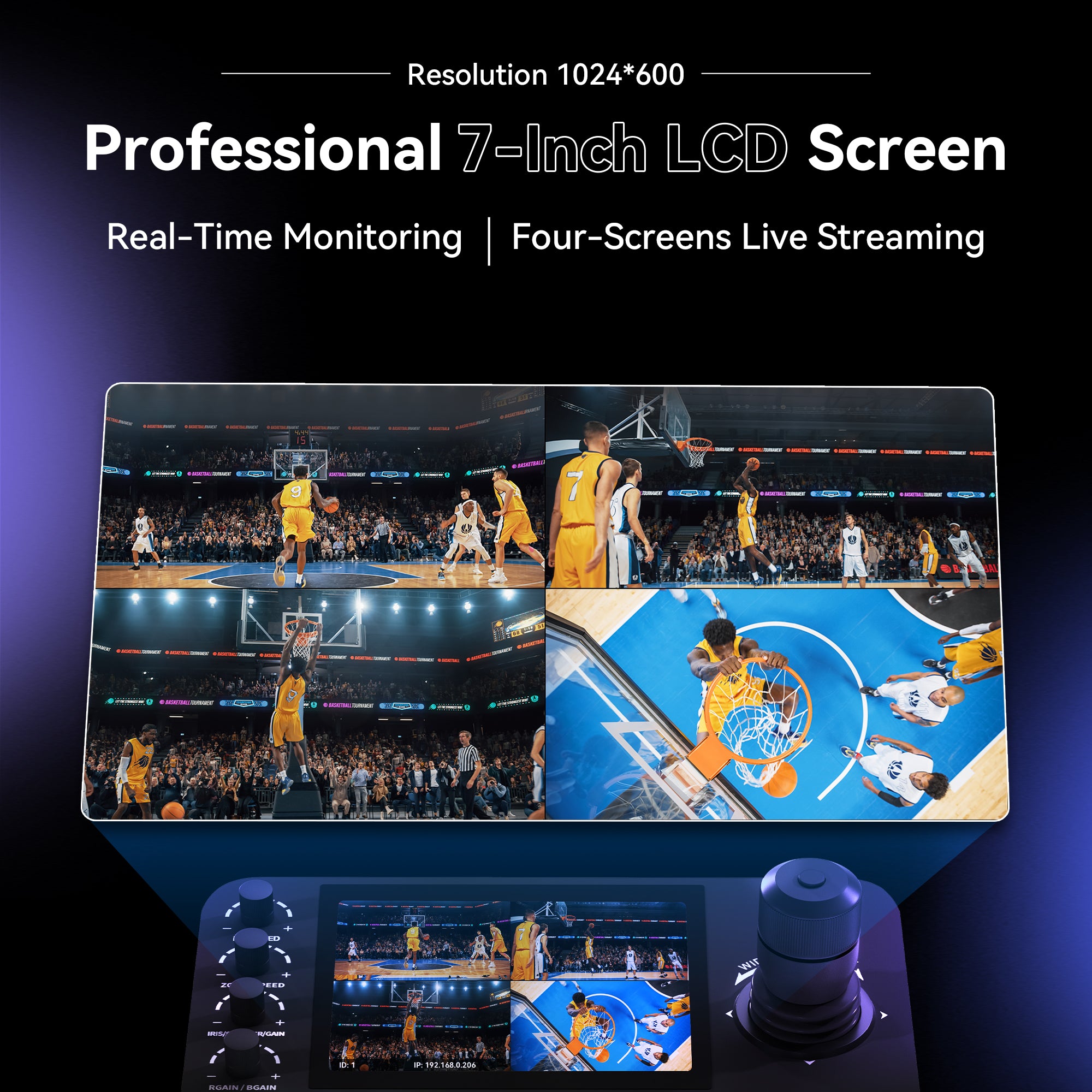

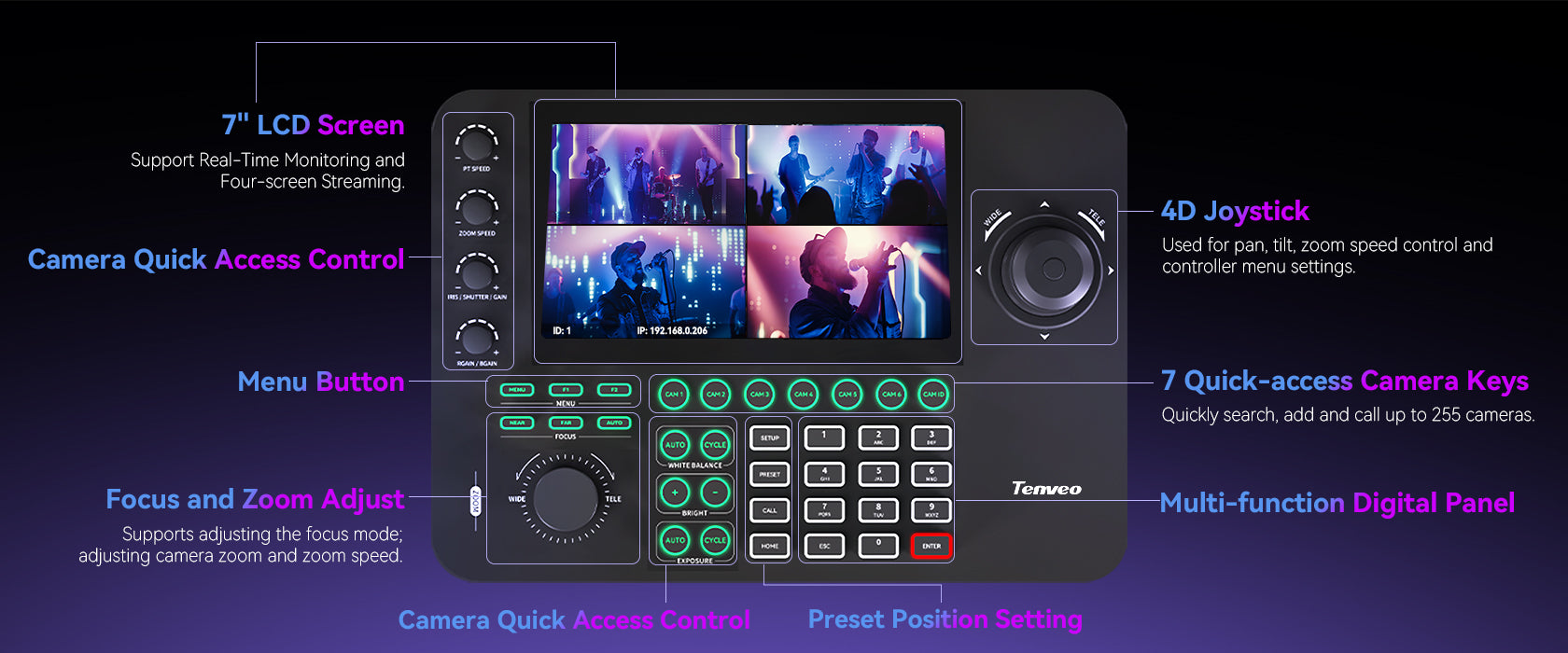

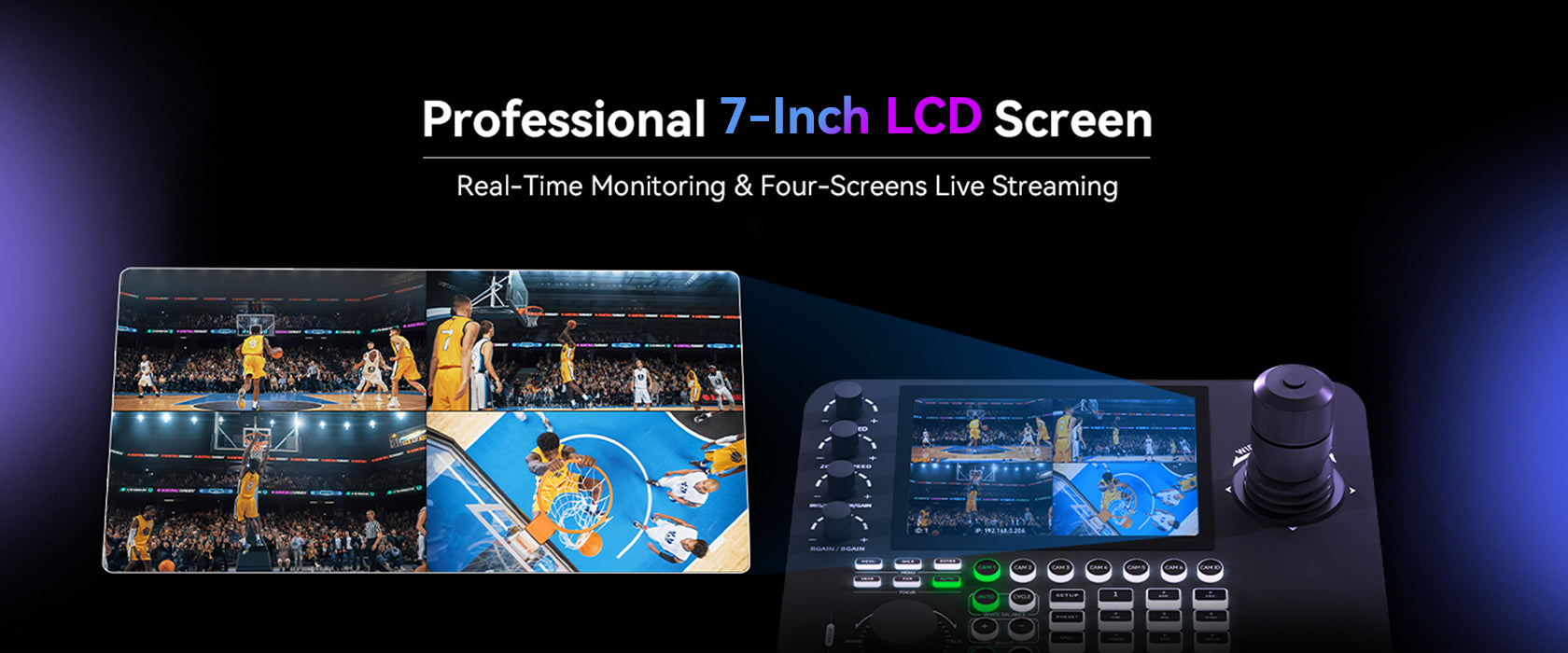

1. 7" LCD Quad-Screen Real-Time Preview
Monitor up to 4 PTZ camera feeds simultaneously with the built-in 7-inch LCD multi-view display. Instantly switch between quad-screen and single-camera preview for accurate shot adjustment and seamless live production. Ideal for church worship, live events, sports broadcasting, and multi-camera streaming environments.

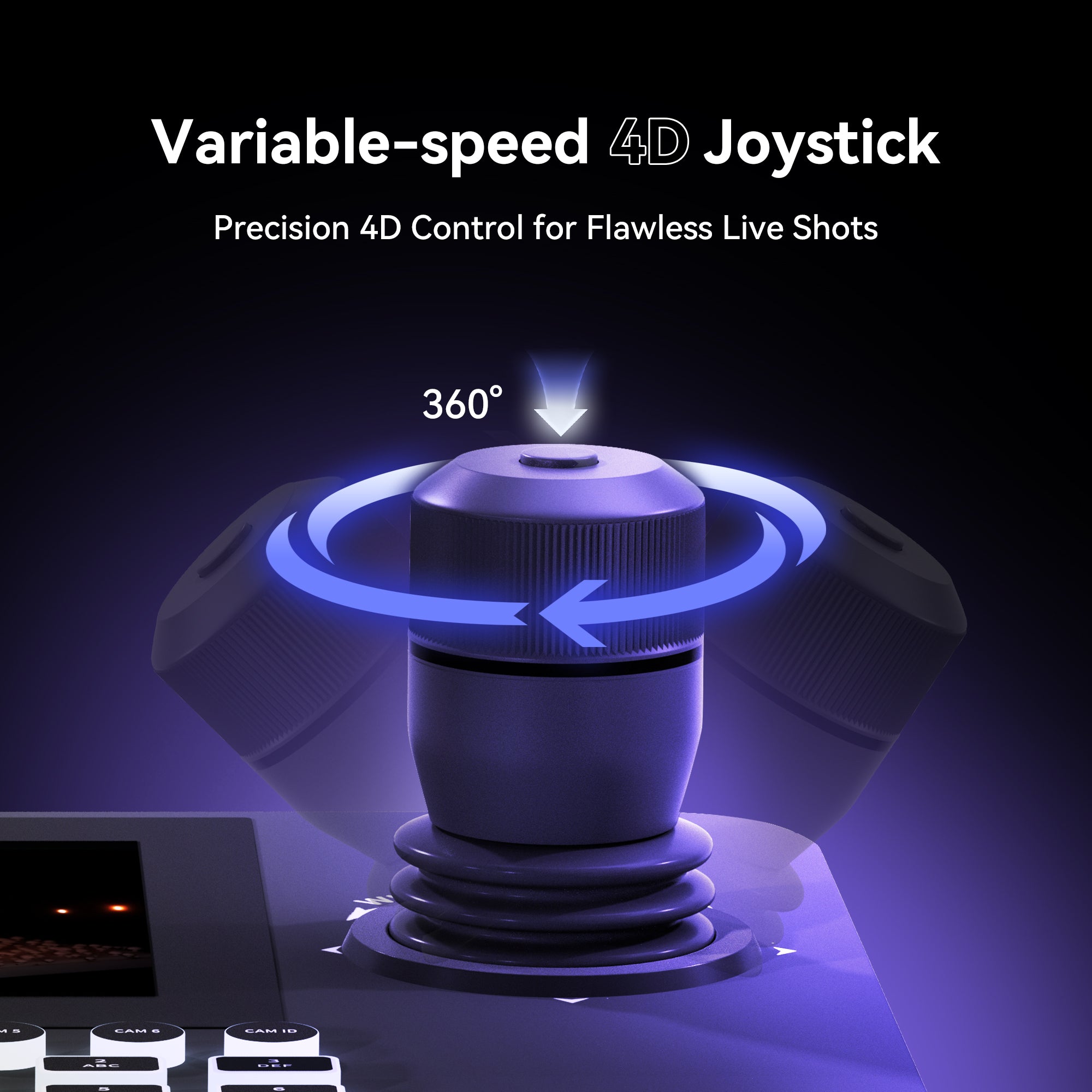

2. Precision 4D Joystick PTZ Control
Take full control of your PTZ cameras with the professional 4D joystick and variable-speed PTZ operation. Easily adjust pan, tilt, zoom, focus, iris, presets, PTZ speed, and camera switching for smooth and precise camera movements during live productions.

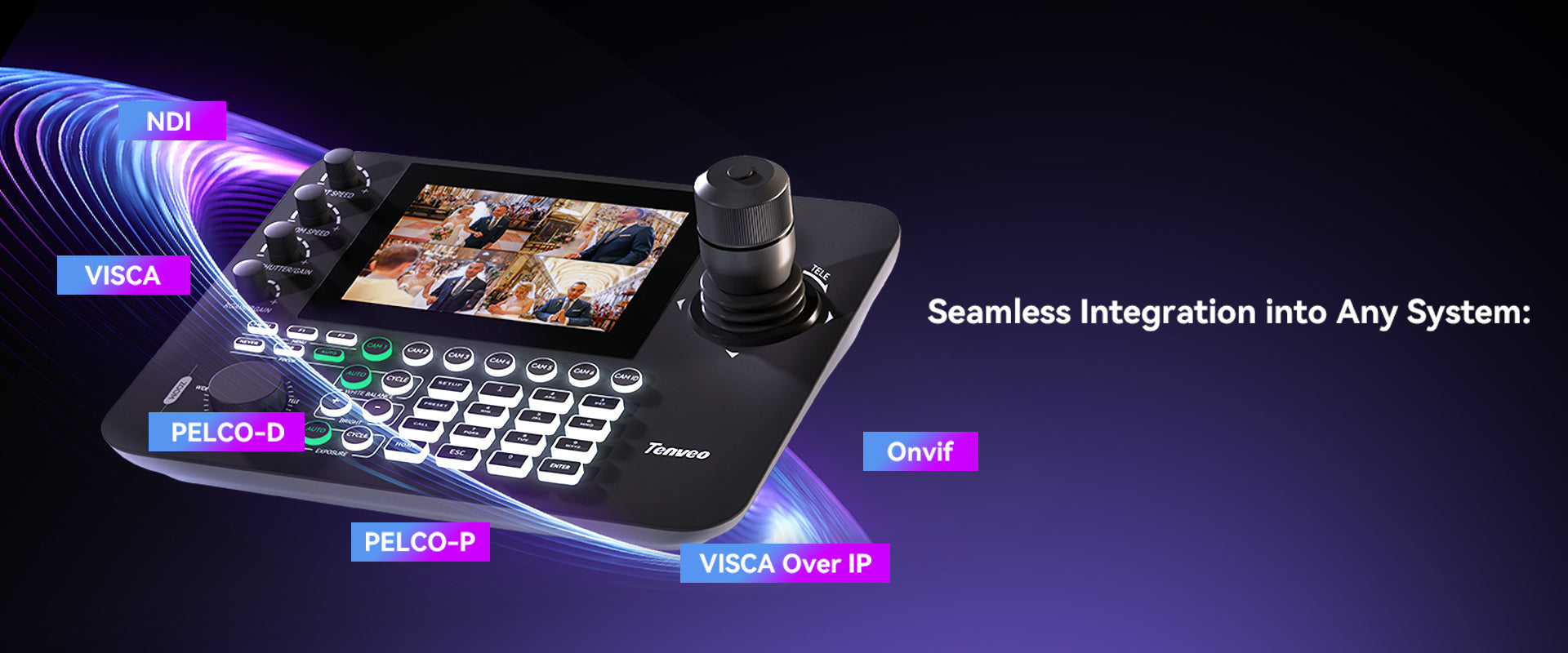

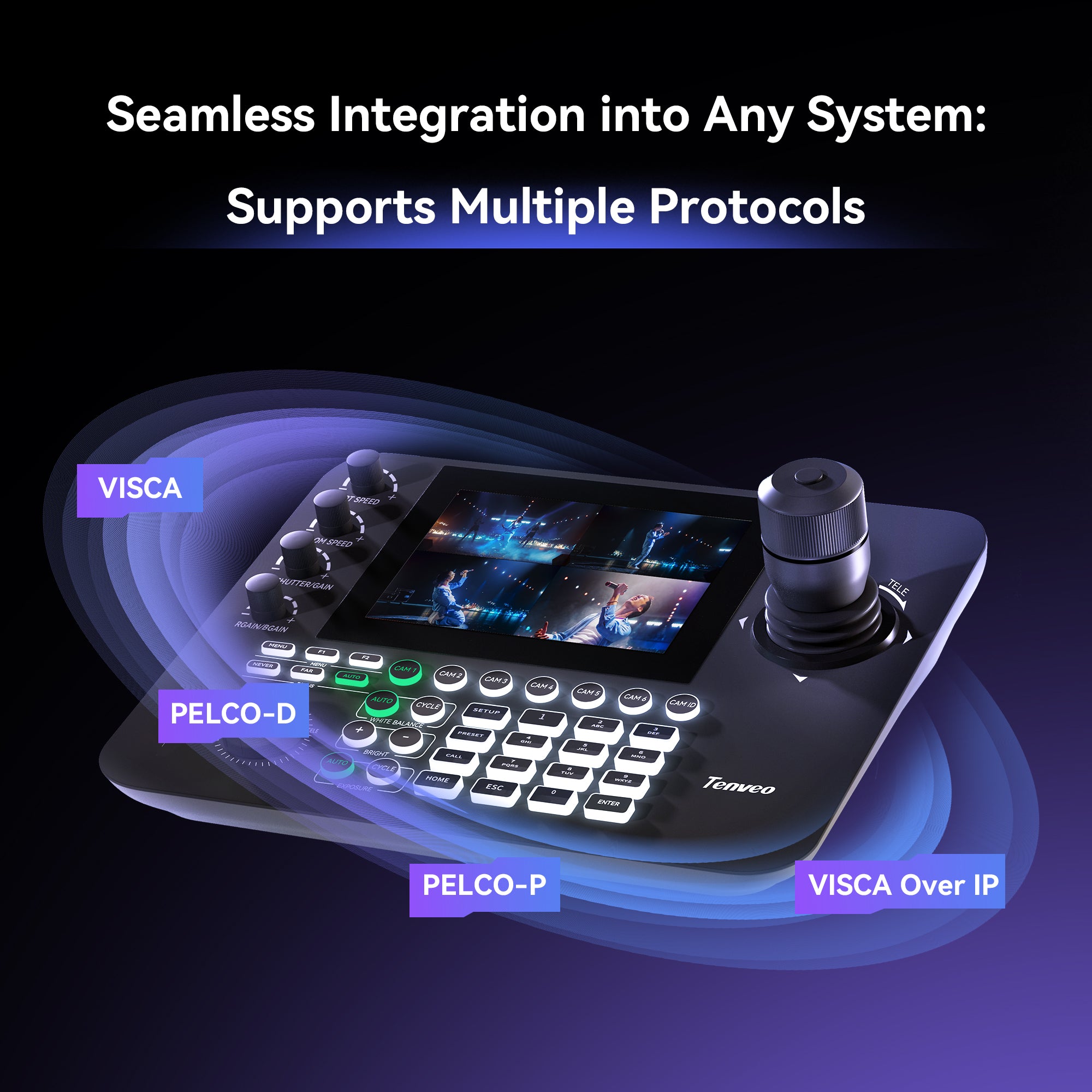

3. Universal Protocol Compatibility
Designed for maximum flexibility, the KB300PRO supports NDI® HX (License Included), VISCA, ONVIF, Pelco-D, and Pelco-P protocols. Compatible with a wide range of PTZ cameras and production software including OBS, vMix, Zoom, Microsoft Teams, YouTube, and Facebook Live.

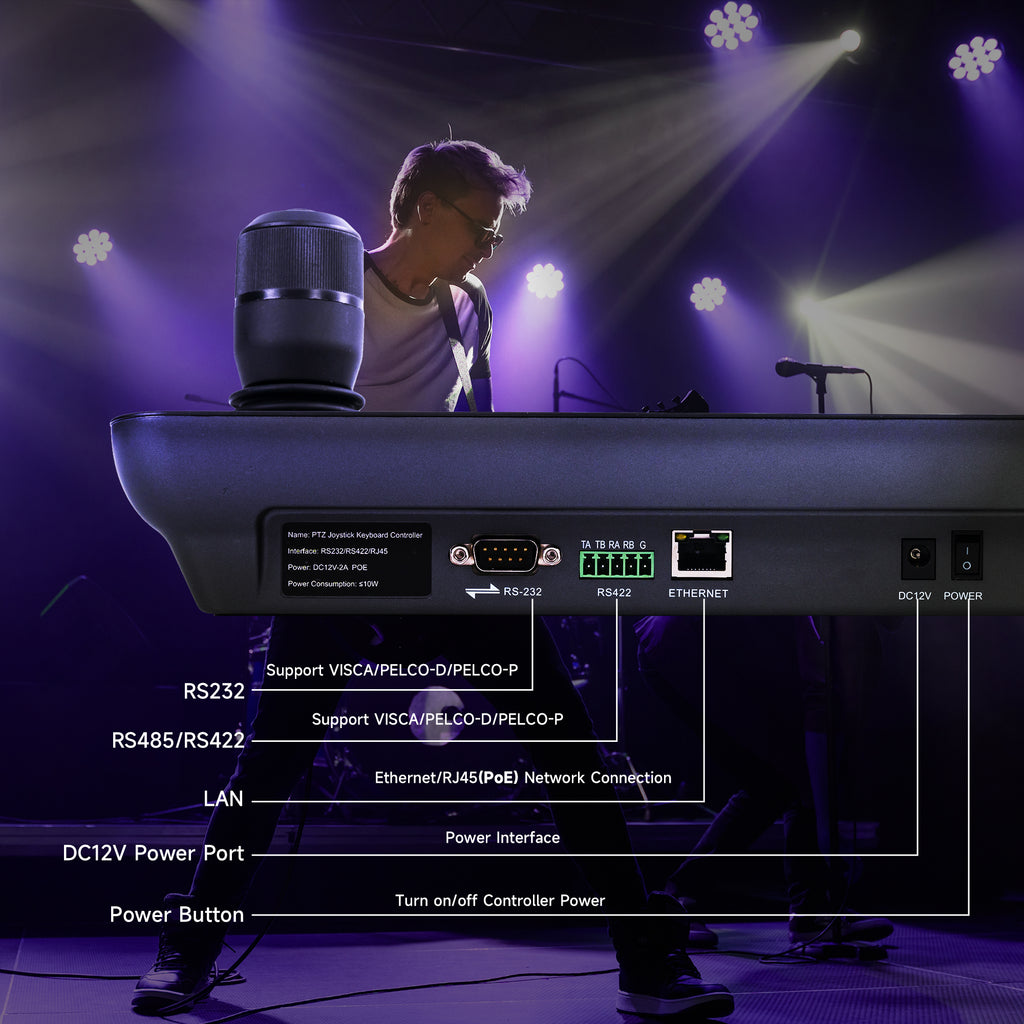

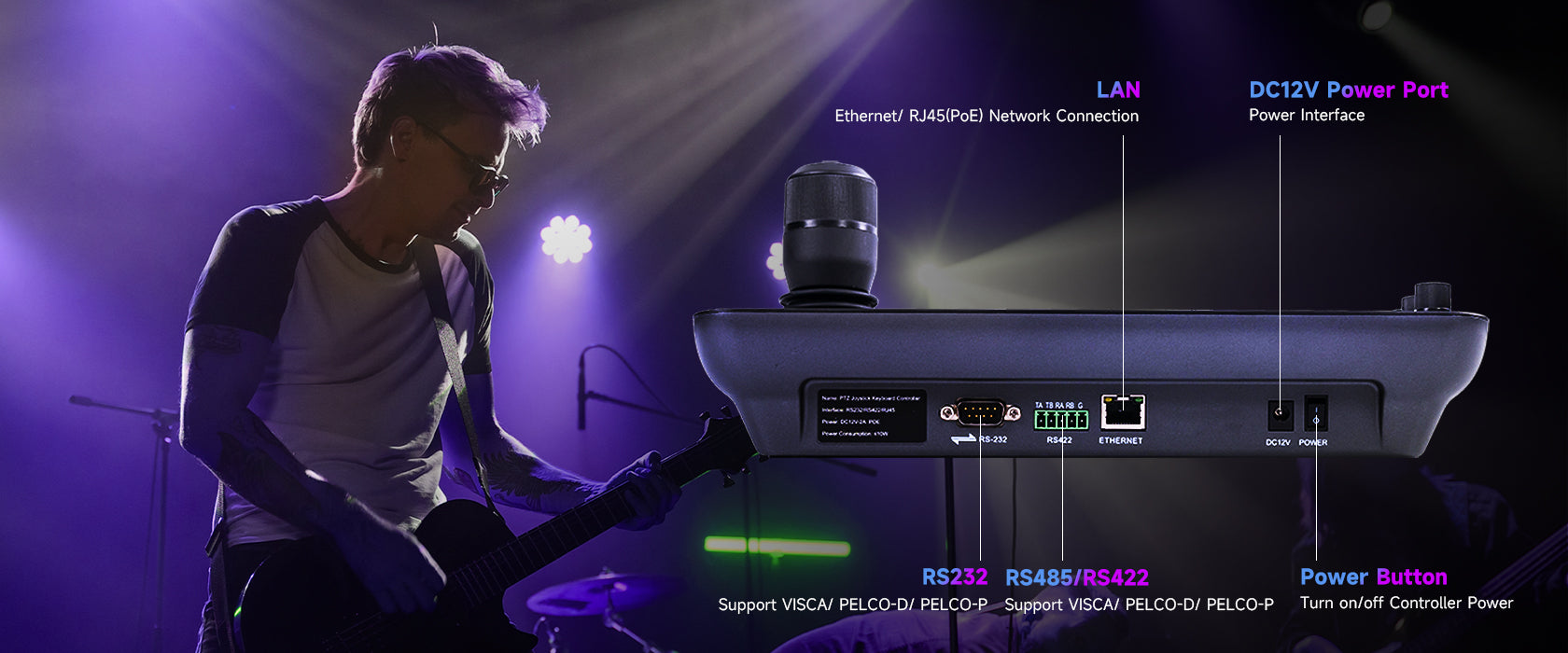

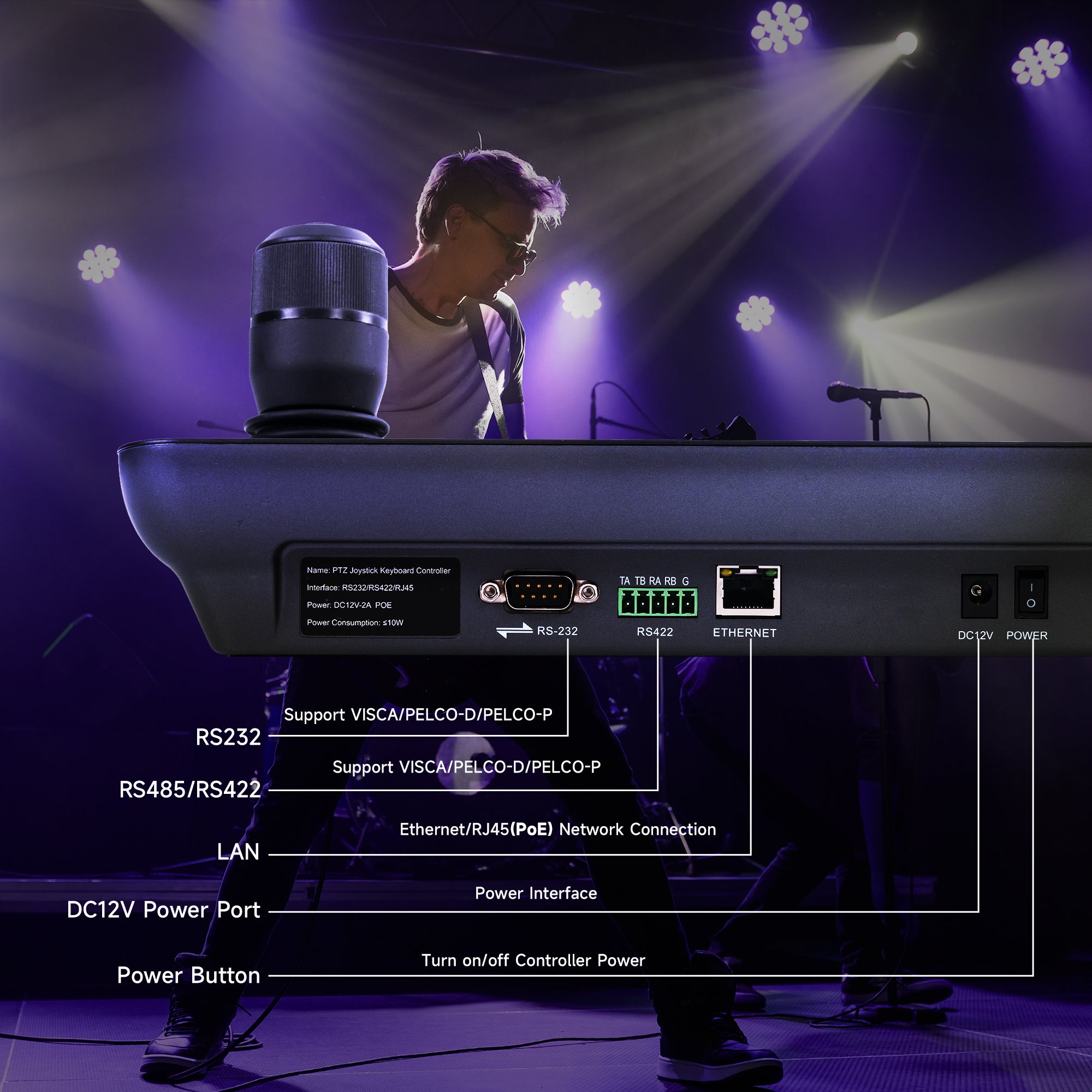

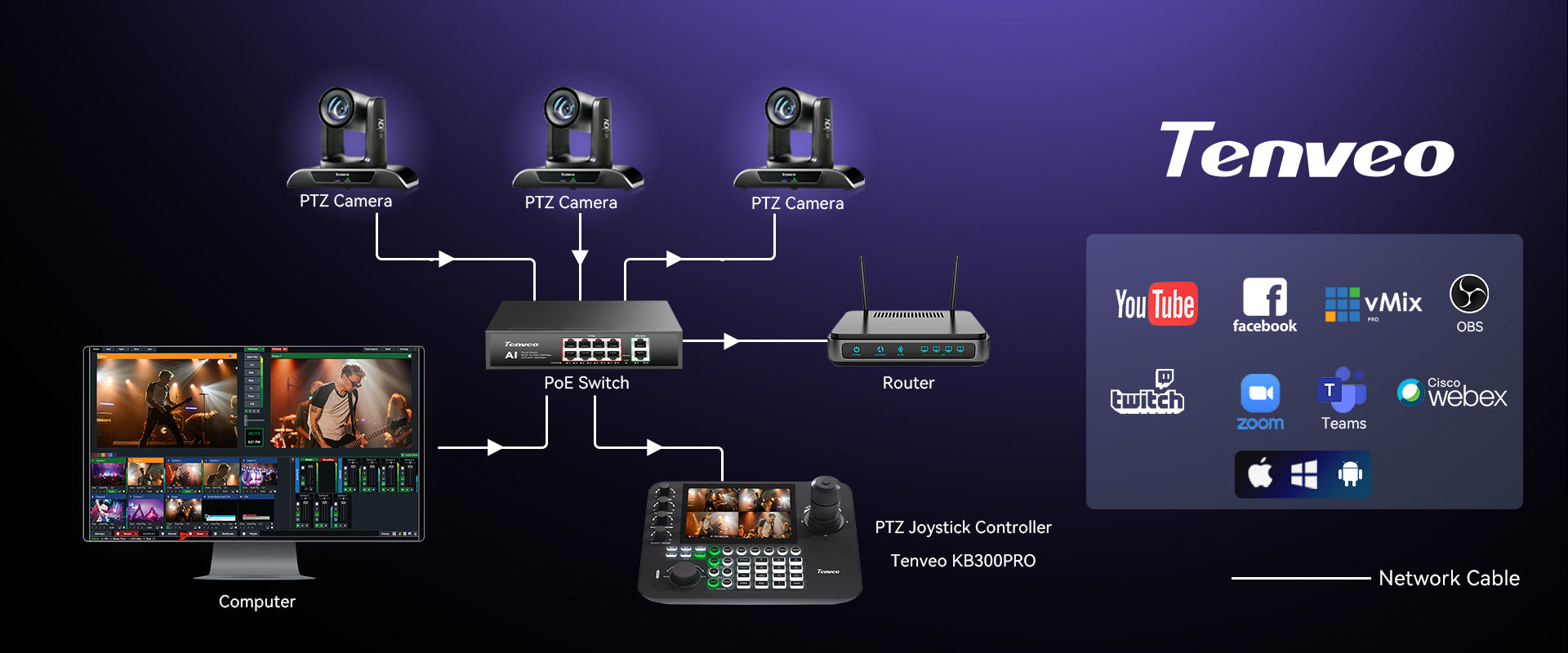

4. Multiple Connections with PoE Support
Equipped with RJ45 Ethernet, RS232, RS422, and RS485 interfaces, the controller easily integrates into both IP and traditional broadcast workflows. PoE support allows power, control, and network connection through a single cable for cleaner and simpler installation.
5. Advanced Automation & Multi-Camera Management

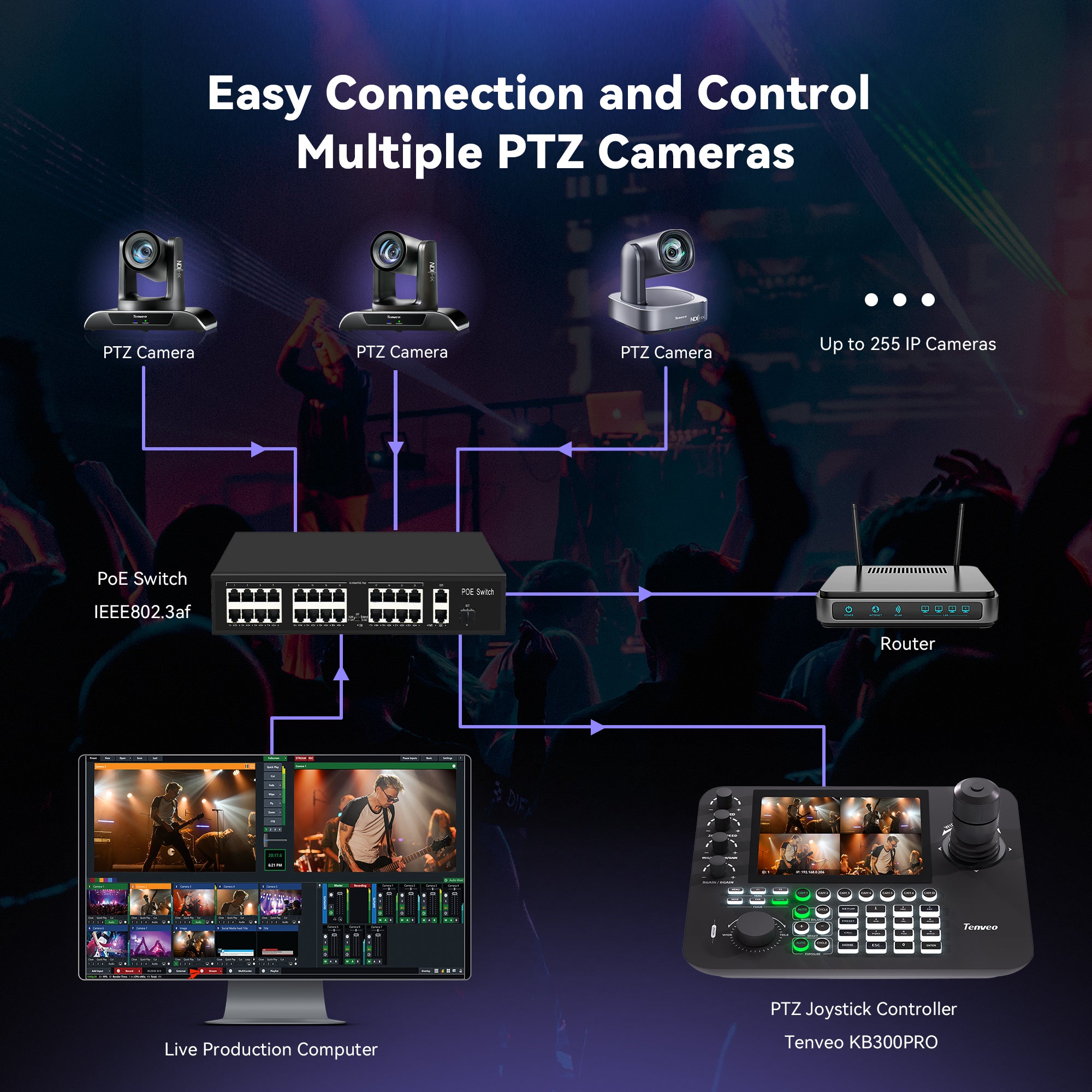

Control up to 255 PTZ cameras with fast camera switching and 7 customizable quick-select buttons. Features include AI auto-tracking control, track recording & playback, and IP auto-search for faster deployment and professional automated camera operation. Perfect for conferences, worship productions, education, broadcasting, and live streaming setups.
The Tenveo Advantage
Fast & Free Shipping
3-Year Product Warranty
30-Day Returns
Lifetime Customer Support
Pay with Ease
Tenveo NDI PTZ Camera Joystick Controller with 7" LCD Quad-Screen Preview & 4D Joystick for Live Streaming and Church Production
$459.00
Sale price
$459.00
Regular price
$499.00
Pickup currently not available

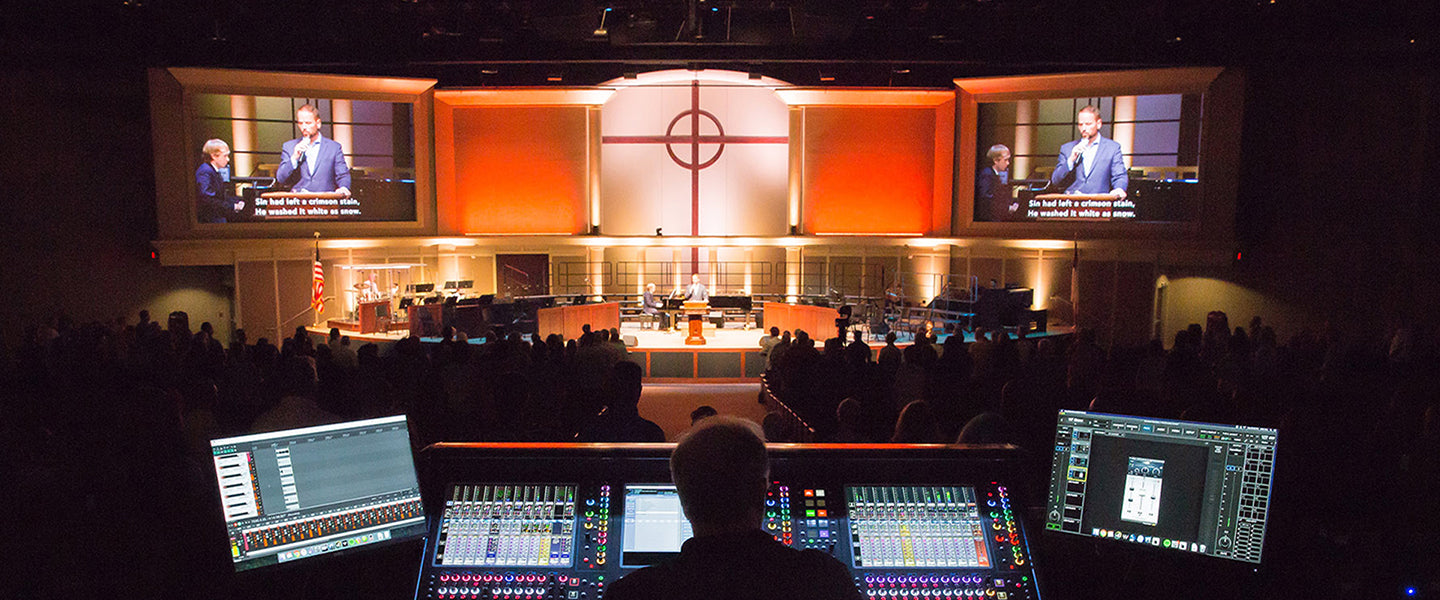

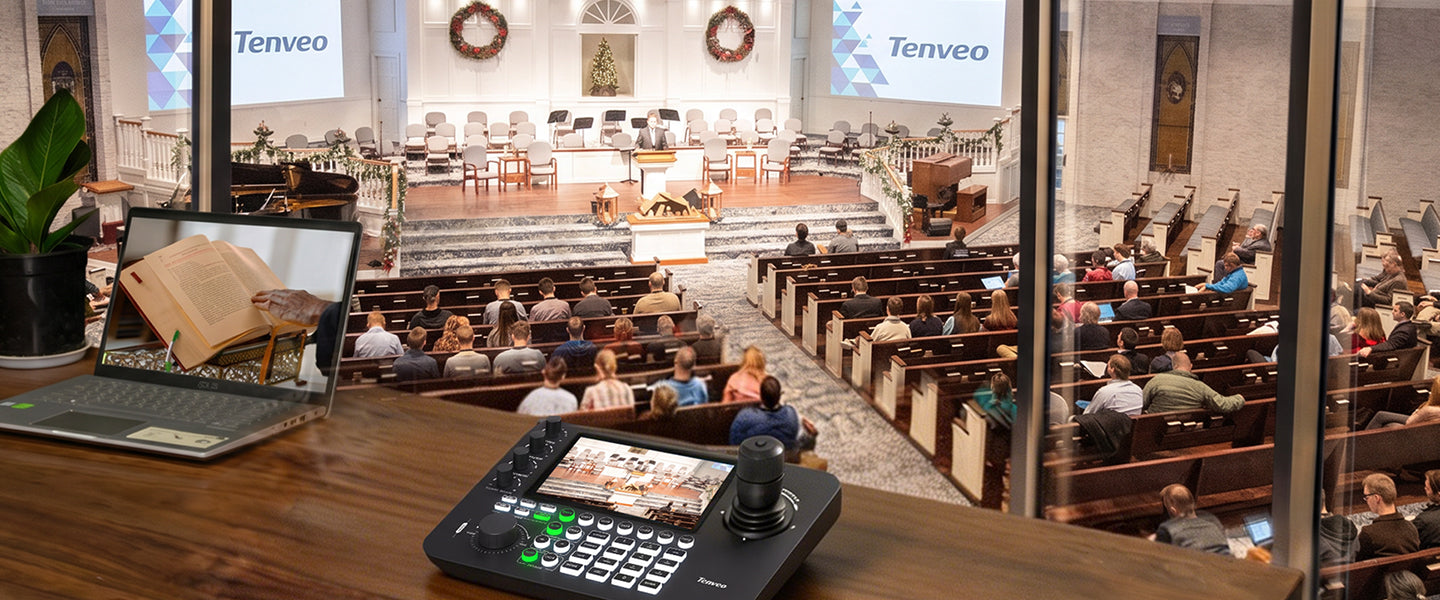

User Scenarios
Product Specification
| Chip | ssd202d |
|---|---|
| Support operating system | Linux |
| Max equipment | 256 |
| Decoding | H.265, H.264 |
| Resolution | MAX 1080P for 1 channel: 1920*1080@30fps |
| Protocol | VISCA over IP, NDI Control, ONVIF, Pelco-P, Pelco-D, Sony VISCA Compatible |
| Camera control | Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES |
| User interfaces | Display: LED Speed Control: YES Zoom Rocker: Yes Joystick Zoom Ring: Yes Programmable function buttons: 6 |
| Four-split display | Support |
| Joystick | 4D |
| Output | RS422(Reserved), RS232(Development port), RJ45 |
| Accessories | Knob, Silicone button |
| Beep | On/off |
| Display | TFT LCD 7inches 600*1024 |
| Max camera control | Max 256 with multiple protocols including NDI/IP |
| Split screen display | 1 split screen/4 split screen |
| Power consumption | ≤10W |
| Power | DC12V-2A POE |
| Work temperature | -10°C~55°C/14°F~131°F |
| Work humidity | 20%~80% frostless |
| Storage temperature | -10°C~60°C/14°F~140°F |
| Storage humidity | 0~90% frostless |
| Dimension(Beofore/After Package) | 297*210*140mm/380*270*170mm |
| Net/Gross Weight | 1.38kg/1.8kg |
