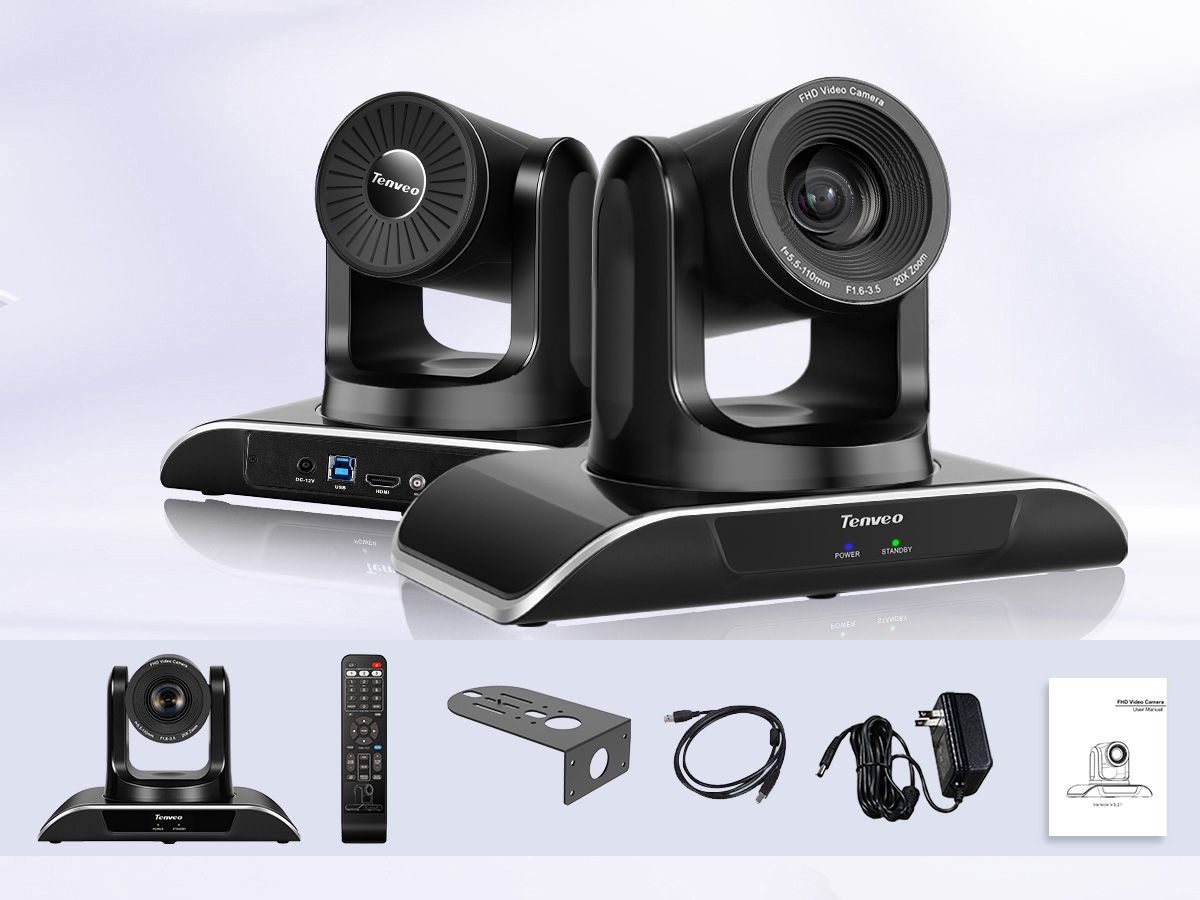

TEVO-VHD20N 20X Full HD PTZ IP CAMERA
TEVO-VHD20N USB HDMI SDI RJ45 20X Zoom Conference Camera
TEVO-VHD20N USB HDMI SDI RJ45 20X Zoom Conference CameraTEVO-VHD20N USB HDMI SDI RJ45 20X Zoom Conference CameraTEVO-VHD20N USB HDMI SDI RJ45 20X Zoom Conference CameraTEVO-VHD20N USB HDMI SDI RJ45 20X Zoom Conference Camera
TEVO-VHD20N 20X Full HD PTZ IP CAMERA
●Superb high-definition image;
●55.5° wide view angle without distortion;
●Smooth and Silent Pan Tilt Movement;
●20x Optical Zoom 1080P HD Video Camera;
●Simultaneous USB, 3G-SDI, HDMI, IP Streaming;
●3.5mm Audio input;
●IP Live Streaming with RJ45 input;
●Support infrared control, RS232, RS485 control, Web interface control;
●Works with most video conferencing software including Zoom, Skype for Business, Polycom, Microsoft Lync, etc.
Product introductionTech SpecPackagingSend inquiry

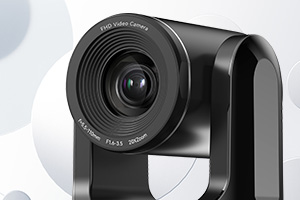

20X Optical Zoom HD 60fps Camera

Pan: 0 to 340 degree. Tilt: 0 to 120 degree. 20X optical Zoom, 2.1 mega pixel 20X optical zoom,HD 1080P 60fps video output, allow you to enjoy a nice image.


Easy Preset Setting

The PTZ camera could be controlled to the focused points quickly by the presets in the meetings. It's very efficient for discussion collobaration.


Universal Compatibility

Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.

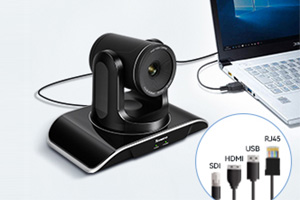

Easy to Use

Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.


ModelTEVO-VHD20N
Sensor1/2.8''SONY CMOS
Effective pixel2.38 mega pixel
Video output pixel1080p-30/25, 1080i-60/50,720p-30/25
Zoom20x optical zoom
Lensf=5.5-110mm
ApertureF1.6~3.5
Horizontal angle58.6°(W)-3.6°(T)
Video outputUSB,HDMI,SDI,RJ45
Video resolution1080P (1920 *1080)
Siginal standardNTSC/PAL
Preset position64
Control temernalRS-232,RS485
Shutter 1/30s~1/10000s, auto
Baud Rate38400/9600bps
Control protocolVISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB protocolUVC1.1
Minimal Illumination0.1Lux
SNR≥50dB
Video encoding formatMJPEG/YUY2/H.264
Horizontal Rotation350°(±175°)0.1°/s~100°/s
Vertical Rotation90°(±45°)0.1°/s~80°s
Power supplyDC 12V/2A
Power comsumption12W
