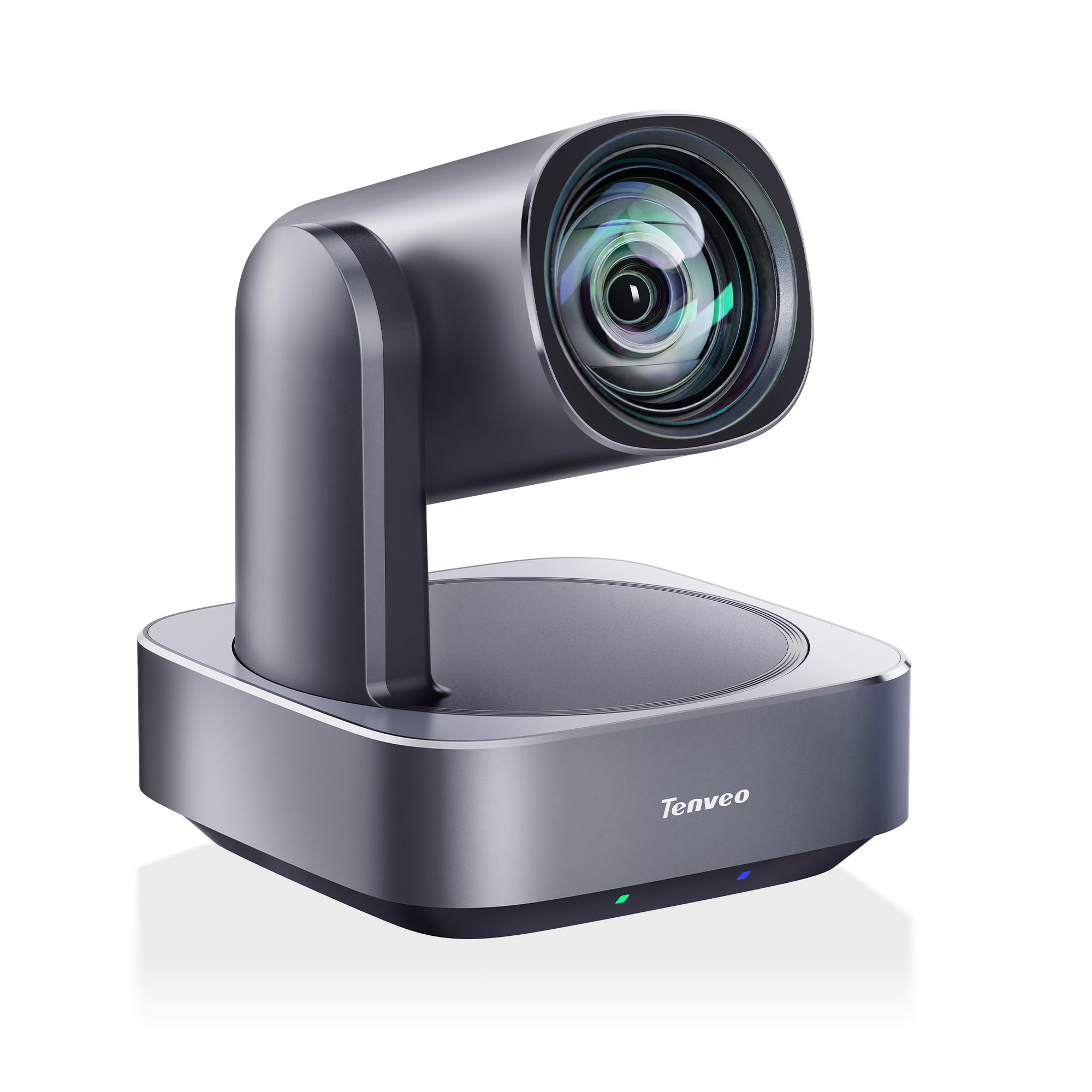

Tenveo VL12U main PTZ cameras
$399.00
Sale price
$399.00
Regular price
1.Crystal Clear 4K Video
Delivers ultra-high-definition 4K video with vibrant colors and precise optical accuracy. The wide-angle lens ensures smooth, detailed footage with a wide field of view.

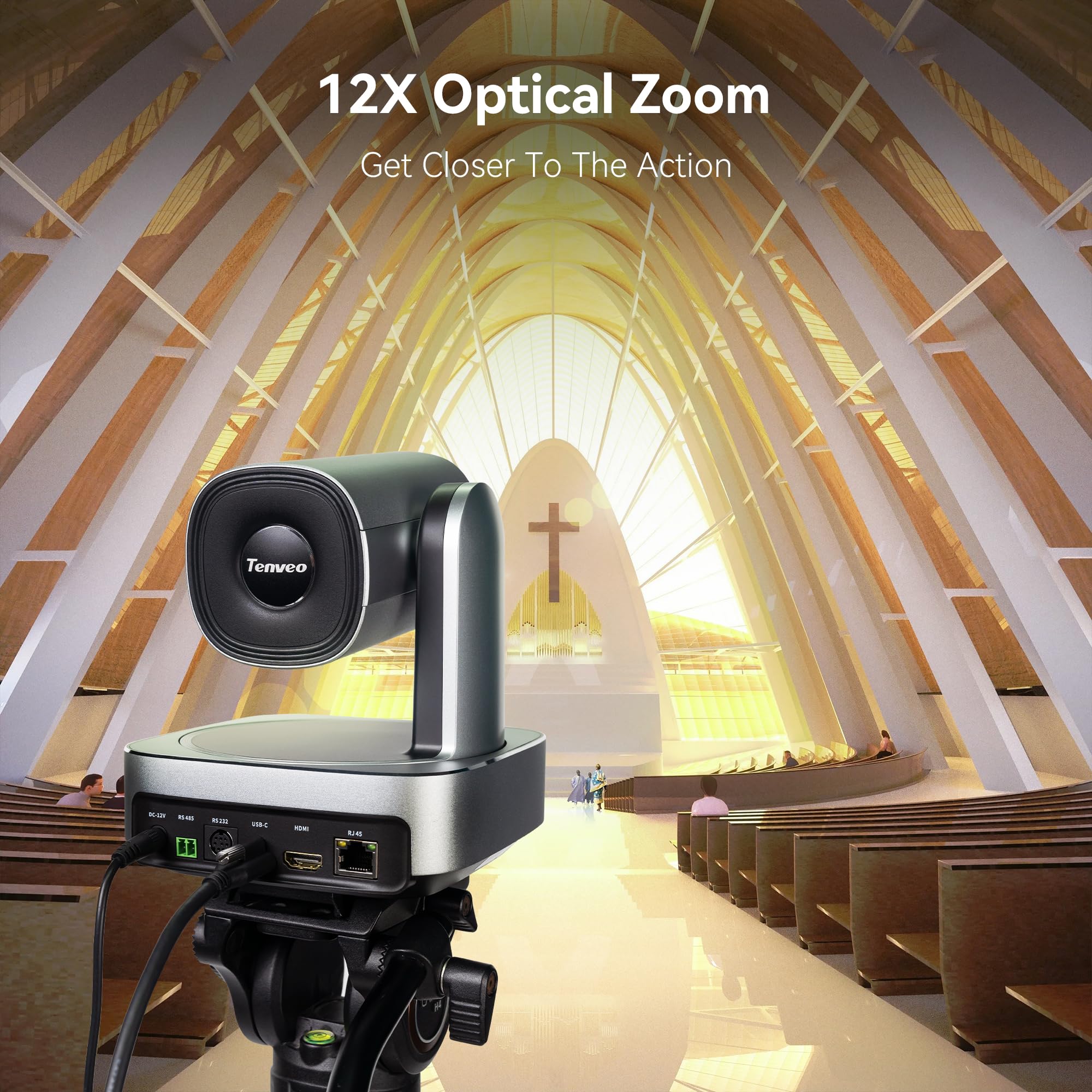

2.12x Optical Zoom for Detailed Capture
Features 12x optical zoom to capture every detail, ensuring sharp, clear images of even the subtlest facial expressions during PTZ movement.
The Tenveo Advantage
Fast & Free Shipping
3-Year Product Warranty
30-Day Returns
Lifetime Customer Support
Pay with Ease
Tenveo VL12U main PTZ cameras
$399.00
Sale price
$399.00
Regular price
Pickup currently not available
Instructions
AI Tracking with Auto-Zoom Support
The Tenveo 4K camera supports human shape tracking based on advanced AI algorithm. Through face and humanoid recognition, it can accurately determine the location of people, realize automatic tracking and automatic frame selection.Easily switch between Presenter and Autoframing modes for optimal results.

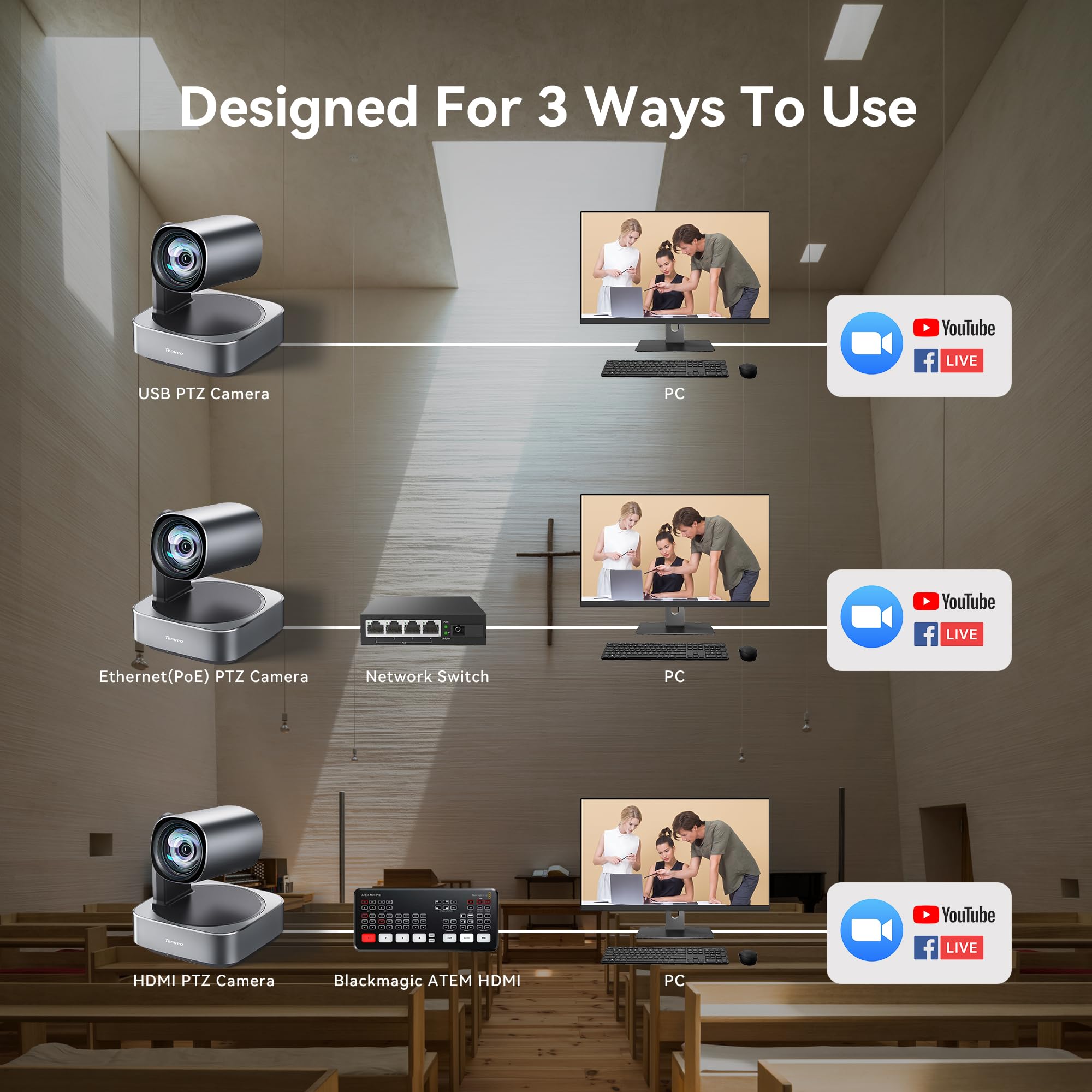

User Scenarios
Product Specification
| Image sensor | 1/2.8'' IMX415 |
|---|---|
| Effective pixels | 8.29MP |
| Video signals | "HDMI：3840*2160P30/29.97/25fps; 2560*1440P60/59.94/50/30/29.97/25fps; 1920*1080P60/59.94/50/30/29.97/25fps; 1280*720P60/59.94/50fps USB3.0： H.264: max to 2160P@30fps H.265: max to 2160P@30fps MJPG: max to 2160P@30fps YUY2: max to 720P@30fps" |
| Lens & Aperture | F1.8-F3.0 |
| Digital zoom | 8X |
| Zoom speed | 1~8 |
| Focal length | f=3.4mm~40.9mm |
| Horizontal angel | 67.5°~7.6° |
| Vertical angel | 40.18°~4.34° |
| Diagonal angle | 75.4°~8.76° |
| AI Support | Yes |
| AI Mode | Single/Multi Person Tracking |
| Minimum illumination | 0.1lux |
| Shutter | 1/25s~1/10000s |
| White balance | Auto/Manual/Indoor/Outdoor/Specific Color Temperature/One-push |
| Backlight compensation | Yes |
| Digital noice reduction | 2D&3D DNR |
| SNR | >50dB |
| Exposure | Auto/Manual |
| Focus | Auto/Manual |
| Video encoding format | H.264/H.265/MJPEG/YUY2 |

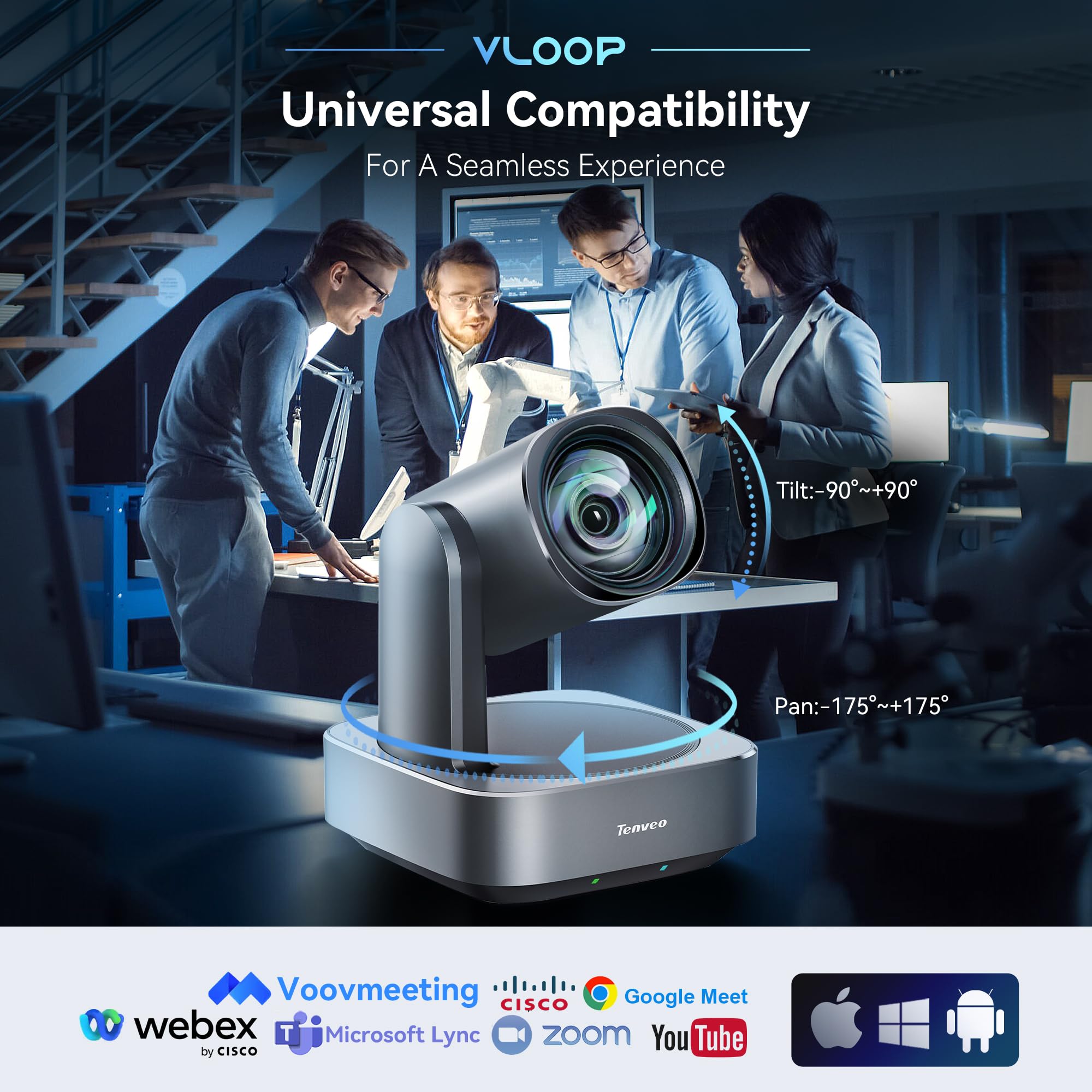

| Pan rotation | 350°(±175°) |
| Tilt rotation | 180°(±90°) |
| Auto flip | No |
| Image freeze | Yes |
| PoE | Yes |
| Preset positions | Remote:10, Serial:255 |
| Preset accuracy | 0.1° |
| Preset Call-up Speed | "Pan: 0.1°/s~80°/s Tilt: 0.1°/s~60°/s" |
| Video compression | H.265/H.264/MJPEG |
| Video stream | Primary, Secondary |
| Main stream resolution | 1920*1080 |
| Sub stream resolution | 1280*720 |
| Bit rate | "Primary: 32kbps~51200kbps Secondary: 32kbps~20480kbps" |
| Bit rate type | VBR/CBR |
| Frequency | 25Hz/30Hz |
| Frame rate | 25Hz:1fps~25fps 30Hz:1fps~30fps |
| Audio compression | / |
| Audio bit rate | / |

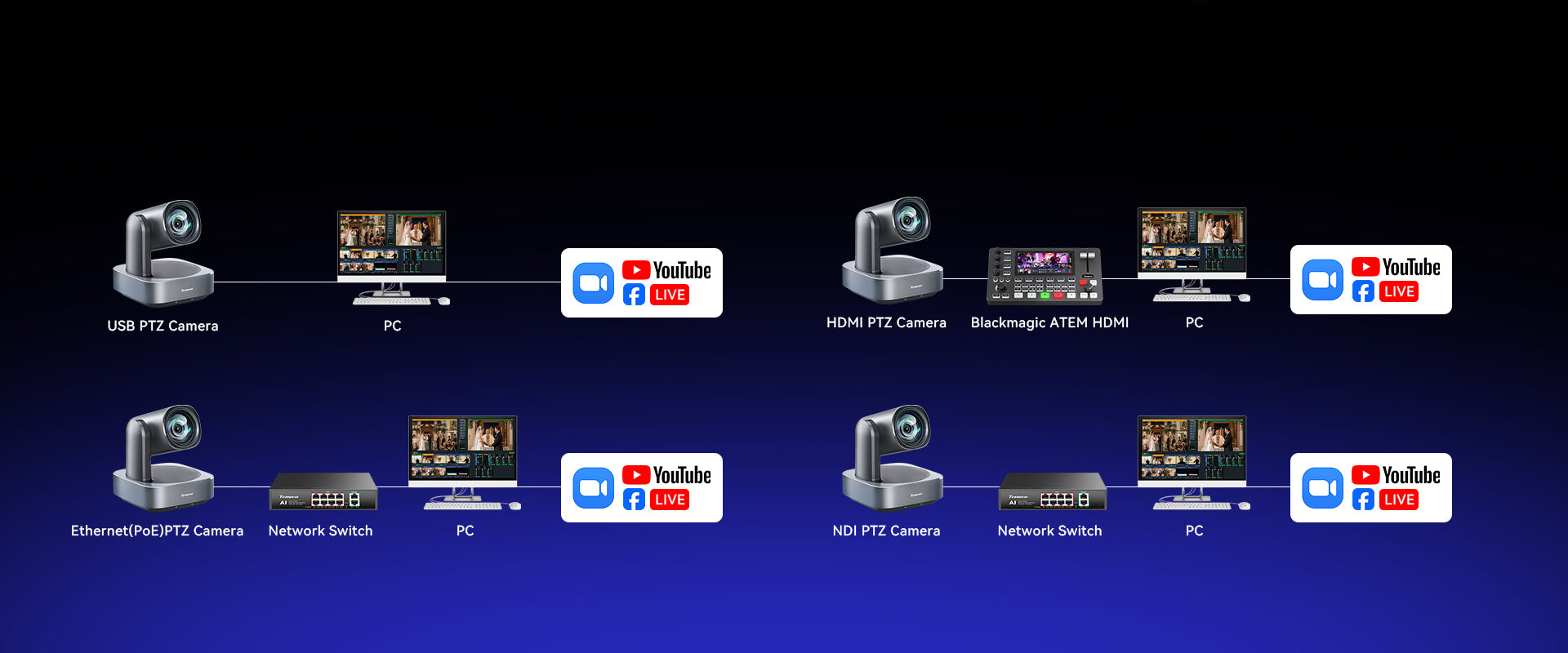

| Network protocal | NDI|HX2, NDI®|HX3RTSP, RTMP, ONVIF, VISCA Over IP |

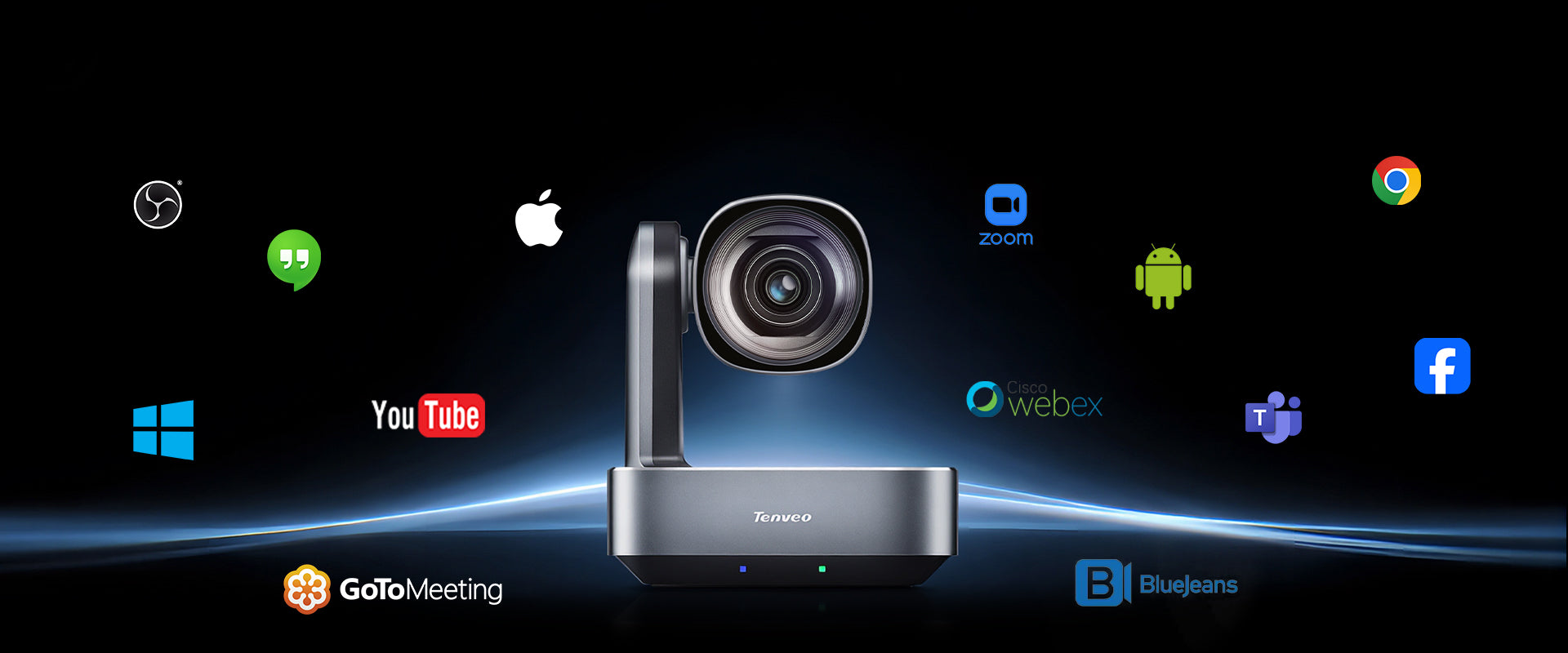

| Support operating system | Windows/macOS/Android/Linux |
| Color space compression | YUY2/H.264/MJPEG/H.265 |
| Video format | H.264: max to 2160P@30fps H.265: max to 2160P@30fps MJPG: max to 2160P@30fps YUY2: max to 720P@30fps |
| Usb video communication protocal | UVC1.1 |
| Uvc ptz control | Yes |

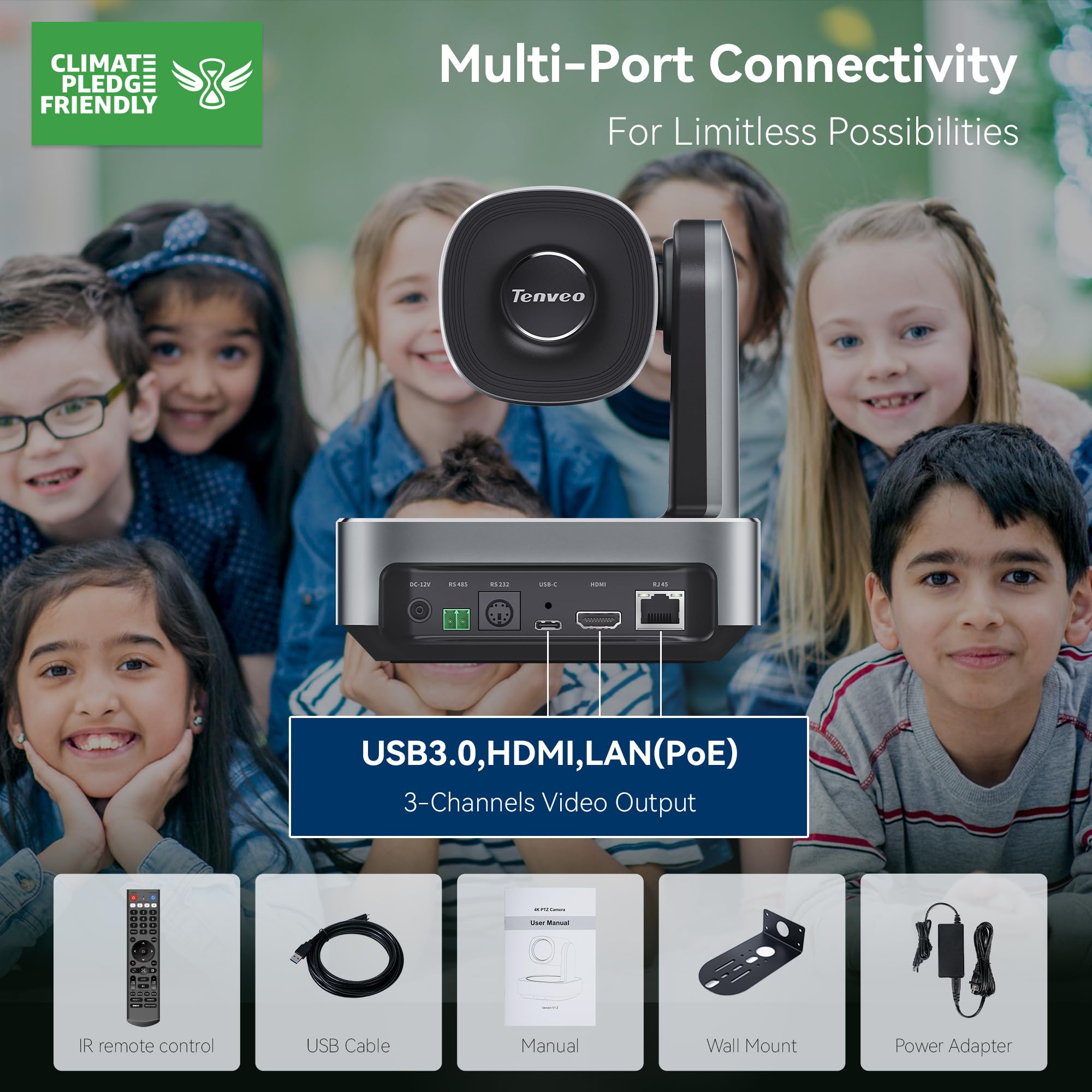

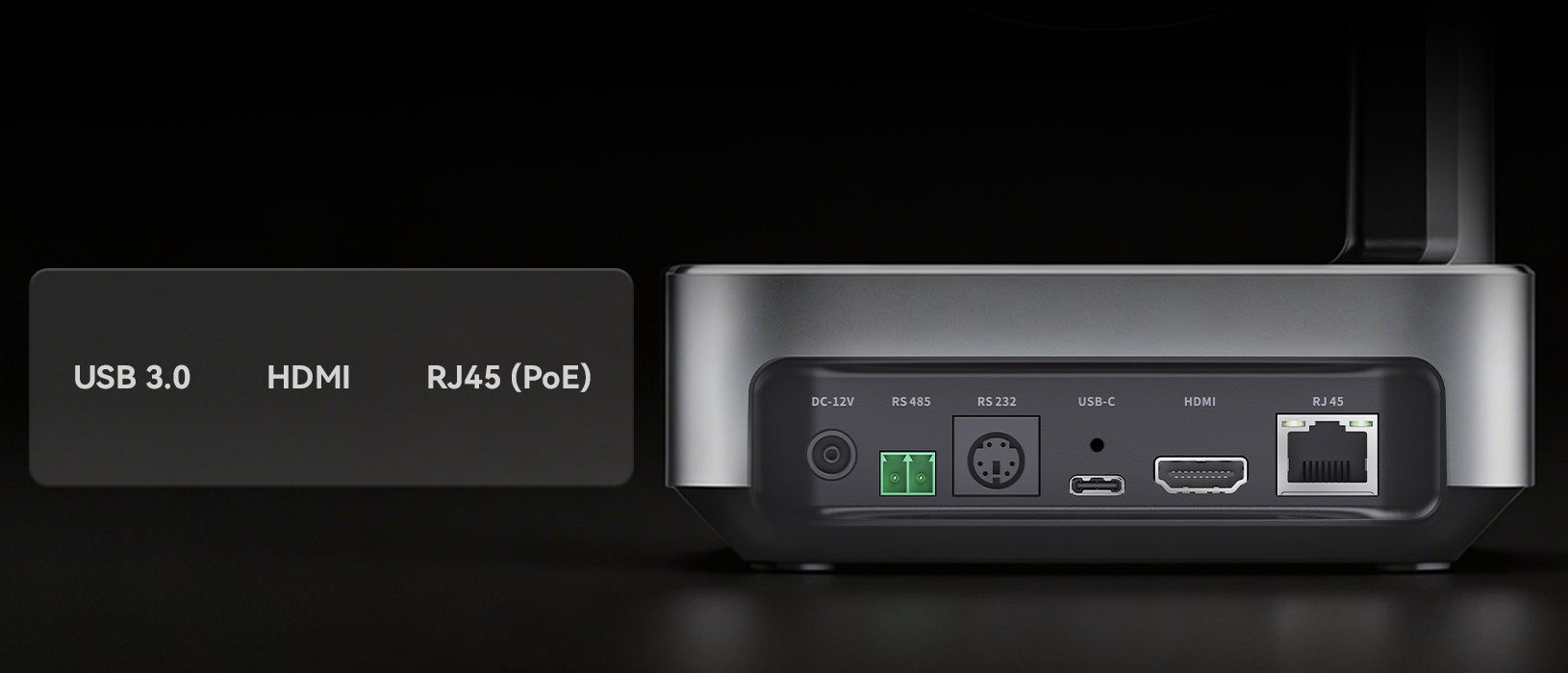

| HD Output | 1*HDMI, 1*USB 3.0 |
| Network interface | RJ45 |
| USB Interface | 1*USB3.0,Type-C |
| Audio interface | / |
| Communication interface2 | 1*RS232 In: 8-pin mini-DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P Protocol 1*RS485: 2-pin terminal block, Max Distance: 1200m, VISCA/Pelco-D/Pelco-P Protocol |
| SD Card | No |
| Restore button | No |
| Power interface | DC12V |
| Built-in Mic | |
| Voice pickup range | |
| Built-in Speaker | |
| Input voltage | DC12V |
| Input current | 2A |
| Operating temperature | 0°C~40°C |
| Operating humidity | 20%~80% RH |
| Power consumption | 24W(Max.) |
| Package includes | |
| Dimension (Before/After Package) | |
| Net/Gross Weight | 1.4kg/2.6kg |
